DLSN Series Linear Stage
The DLSN series linear stage is a high-precision motion platform designed for applications requiring accurate positioning and smooth linear motion.
Save to Favorites
Overview

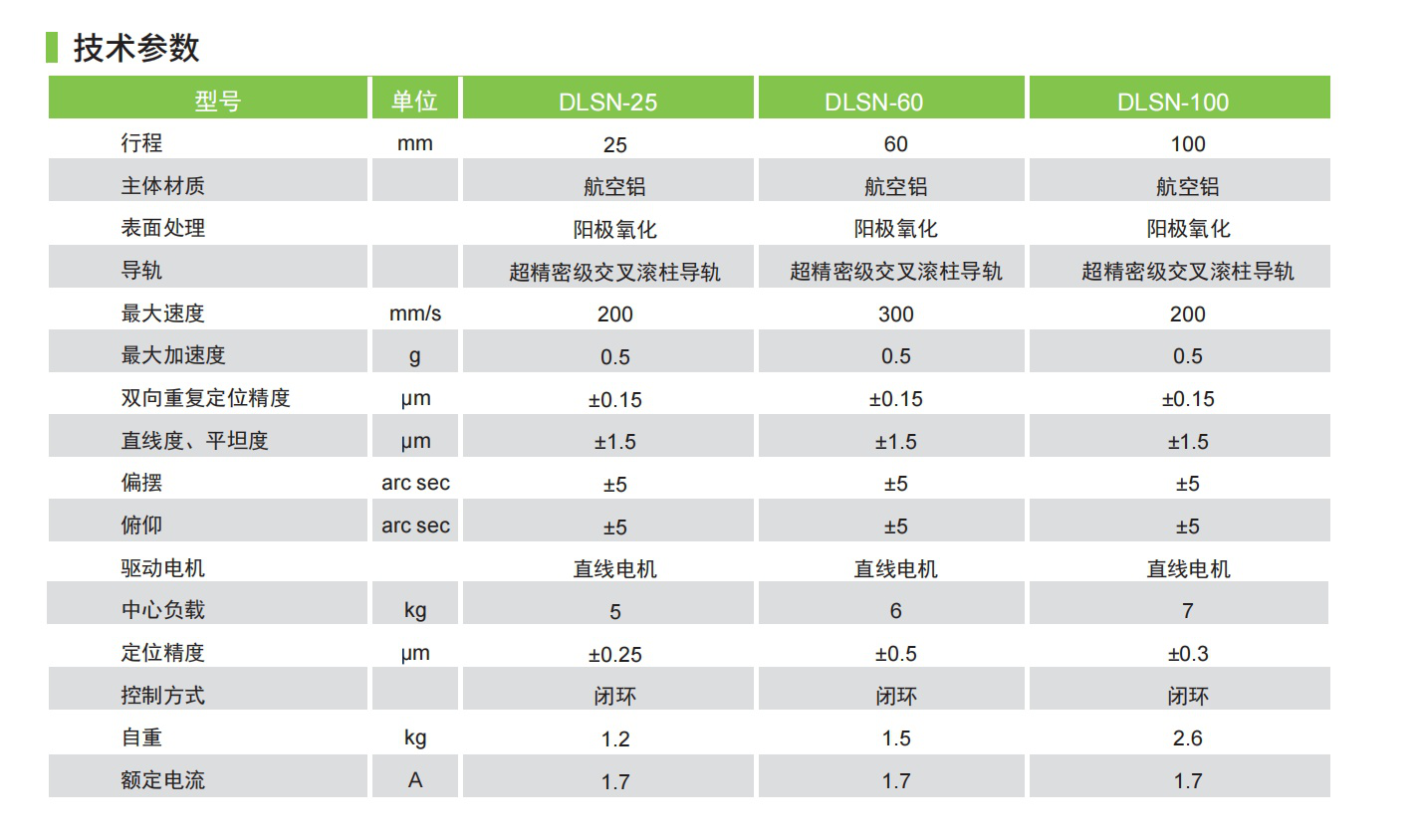

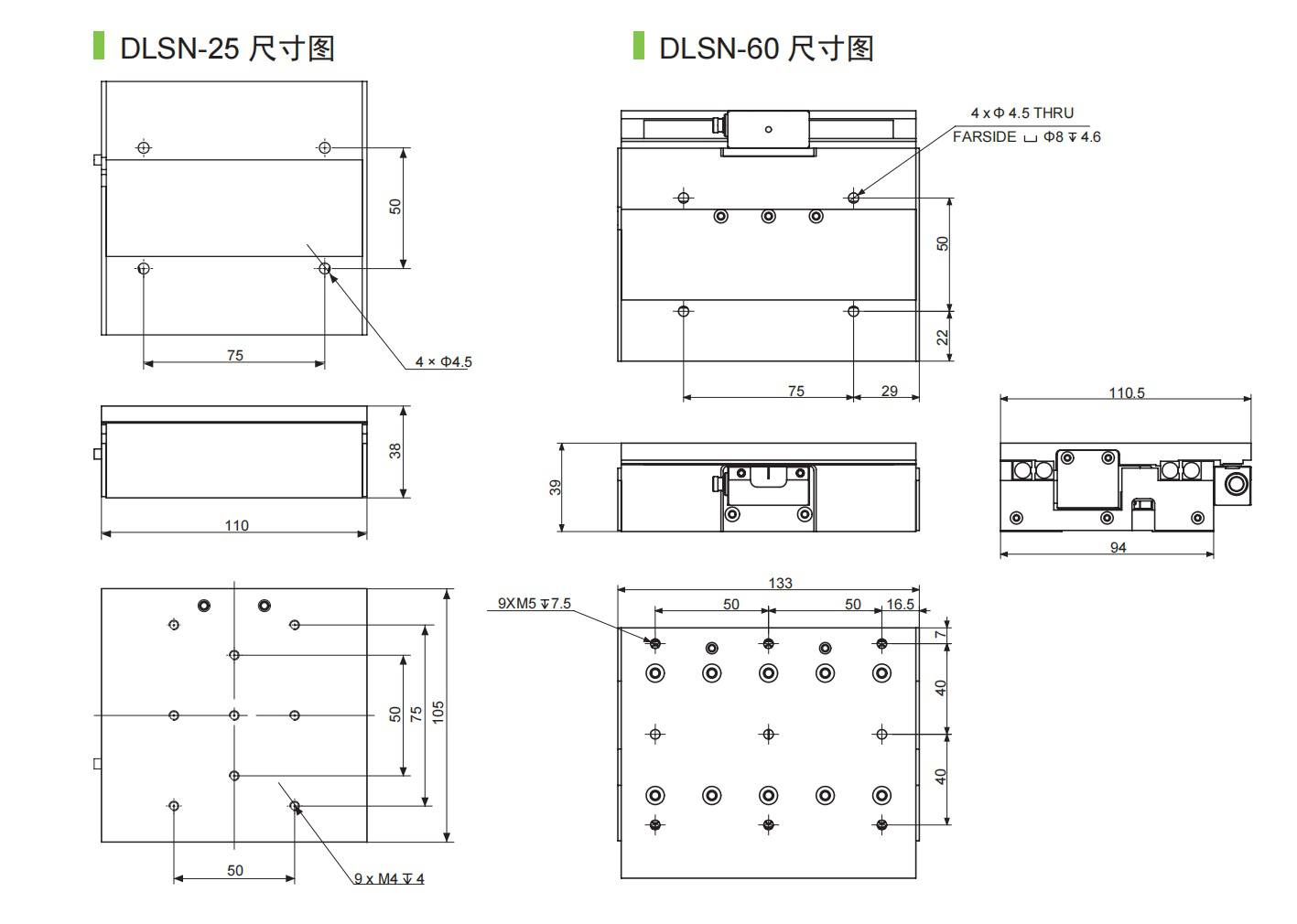

Specifications
| Parameter | Value |
|---|---|
| Travel Range DLSN-25 | 25mm |
| Travel Range DLSN-60 | 60mm |
| Travel Range DLSN-100 | 100mm |
| Main Material | Aviation Aluminum |
| Surface Treatment | Anodizing |
| Guide | Ultra-precision crossed roller guide |
| Max Speed DLSN-25 | 200mm/s |
| Max Speed DLSN-60 | 300mm/s |
| Max Speed DLSN-100 | 200mm/s |
| Max Acceleration | 0.5g |
| Bidirectional Repeatability DLSN-25 | ±0.15μm |
| Bidirectional Repeatability DLSN-60 | ±0.15μm |
| Bidirectional Repeatability DLSN-100 | ±0.15μm |
| Straightness/Flatness DLSN-25 | ±1.5μm |
| Straightness/Flatness DLSN-60 | ±1.5μm |
| Straightness/Flatness DLSN-100 | ±1.5μm |
| Yaw | ±5arc sec |
| Pitch | ±5arc sec |
| Drive Motor | Linear Motor |
| Central Load DLSN-25 | 5kg |
| Central Load DLSN-60 | 6kg |
| Central Load DLSN-100 | 7kg |
| Positioning Accuracy DLSN-25 | ±0.25μm |
| Positioning Accuracy DLSN-60 | ±0.3μm |
| Positioning Accuracy DLSN-100 | ±0.3μm |
| Control Method | Closed Loop |
| Weight DLSN-25 | 1.2kg |
| Weight DLSN-60 | 1.5kg |
| Weight DLSN-100 | 2.6kg |
| Rated Current DLSN-25 | 1A |
| Rated Current DLSN-60 | 1.5A |
| Rated Current DLSN-100 | 2A |
