XWJ-R-2系列电动滑台
XWJ-R-2系列电动滑台采用铝合金材质，表面经过阳极氧化发黑处理，具有高精度 and 高稳定性，适用于精密定位 and 负载Application。
Save to Favorites
Overview

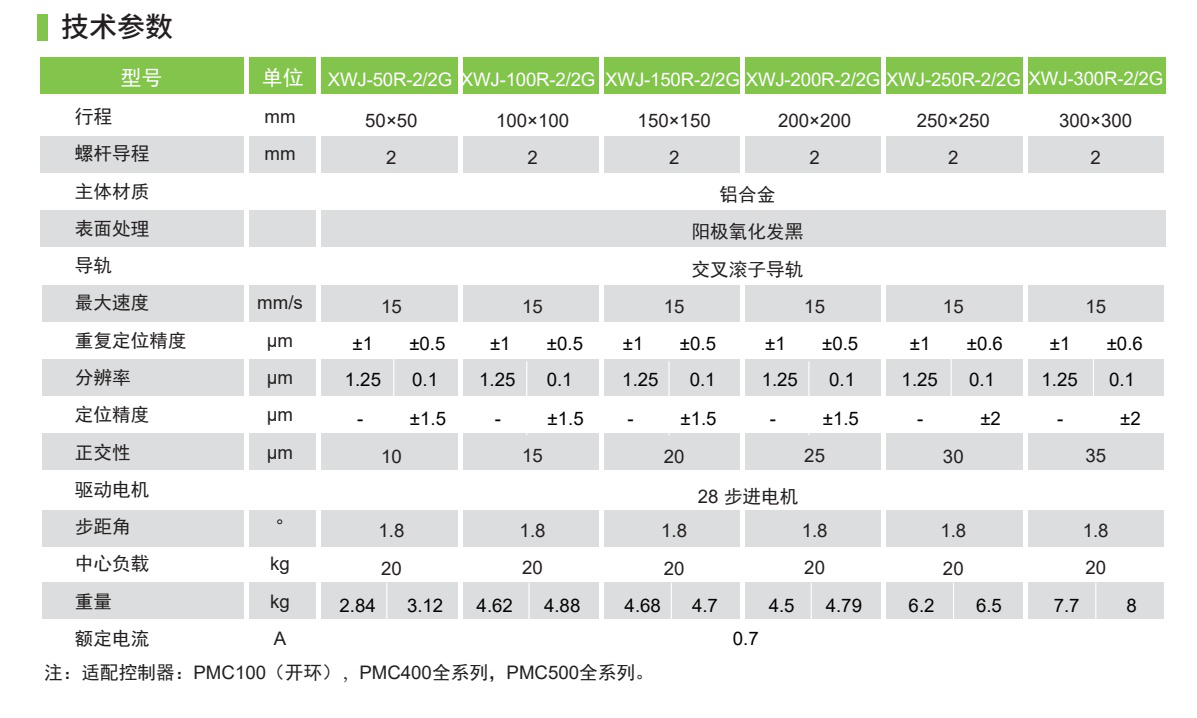

Specifications
| Parameter | Value |
|---|---|

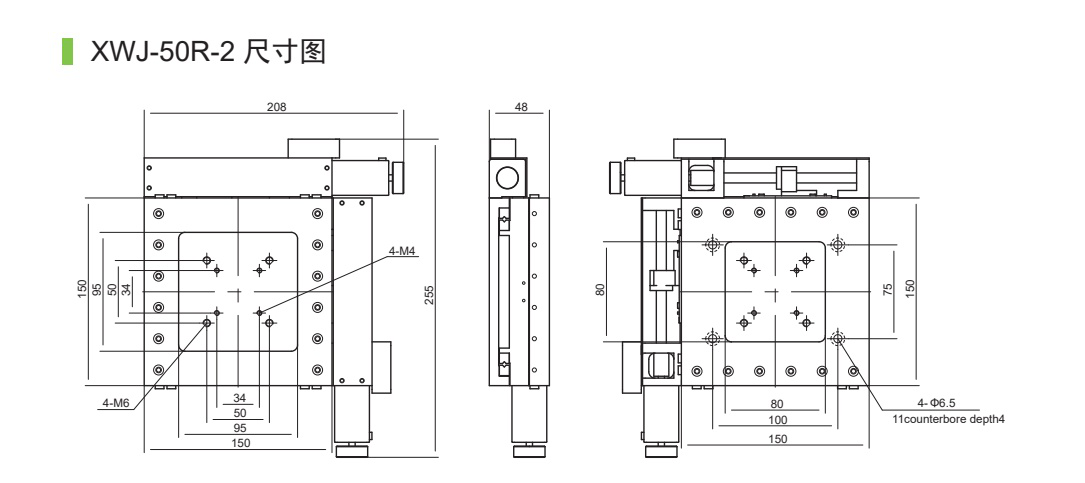

| Travel Range (mm) XWJ-50R-2/2G | 50×50 |

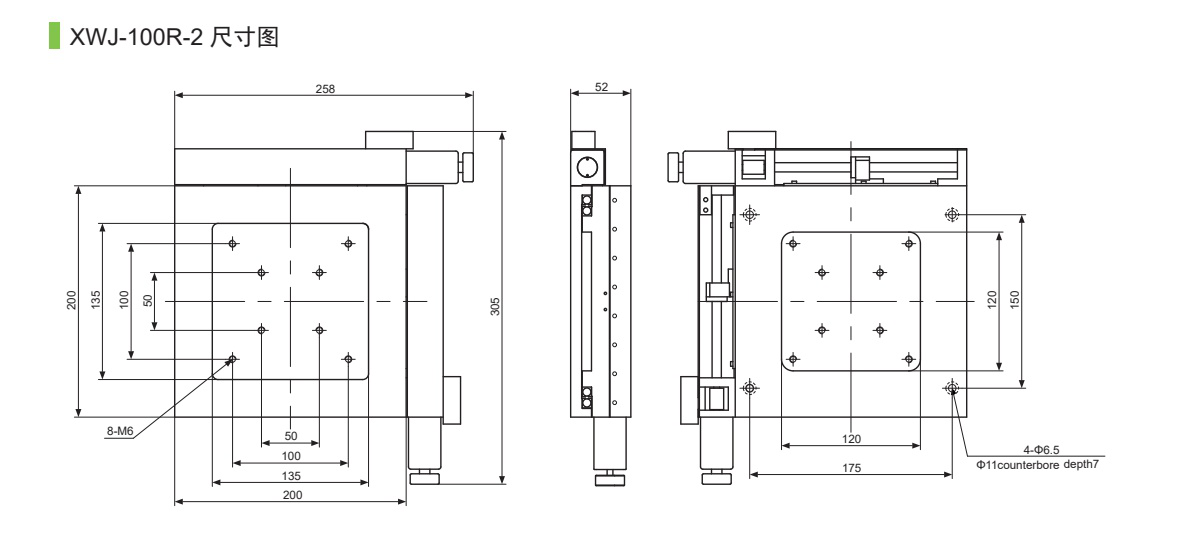

| Travel Range (mm) XWJ-100R-2/2G | 100×100 |

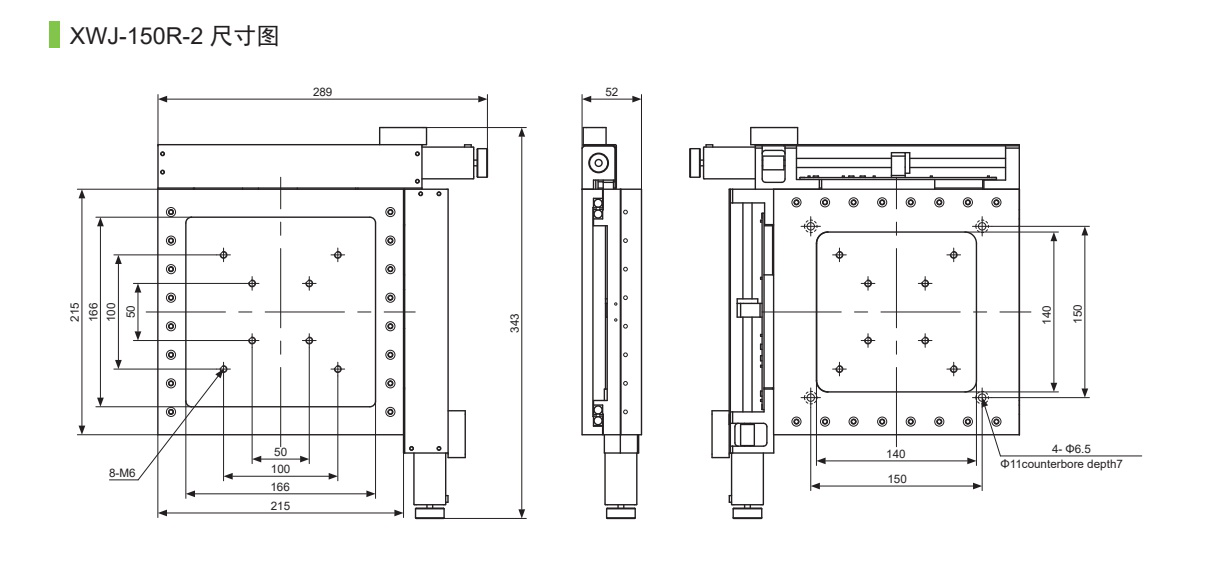

| Travel Range (mm) XWJ-150R-2/2G | 150×150 |

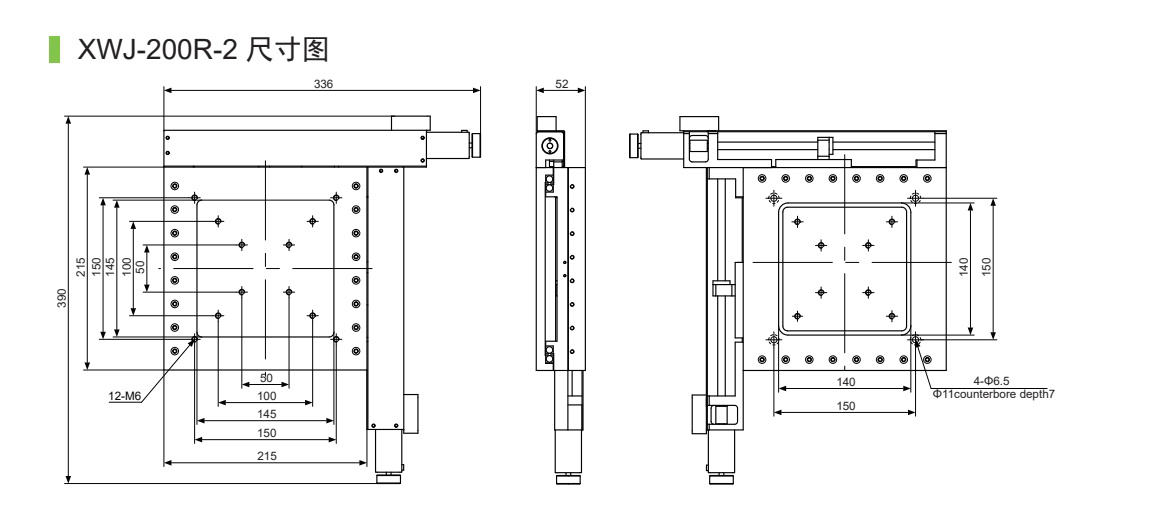

| Travel Range (mm) XWJ-200R-2/2G | 200×200 |

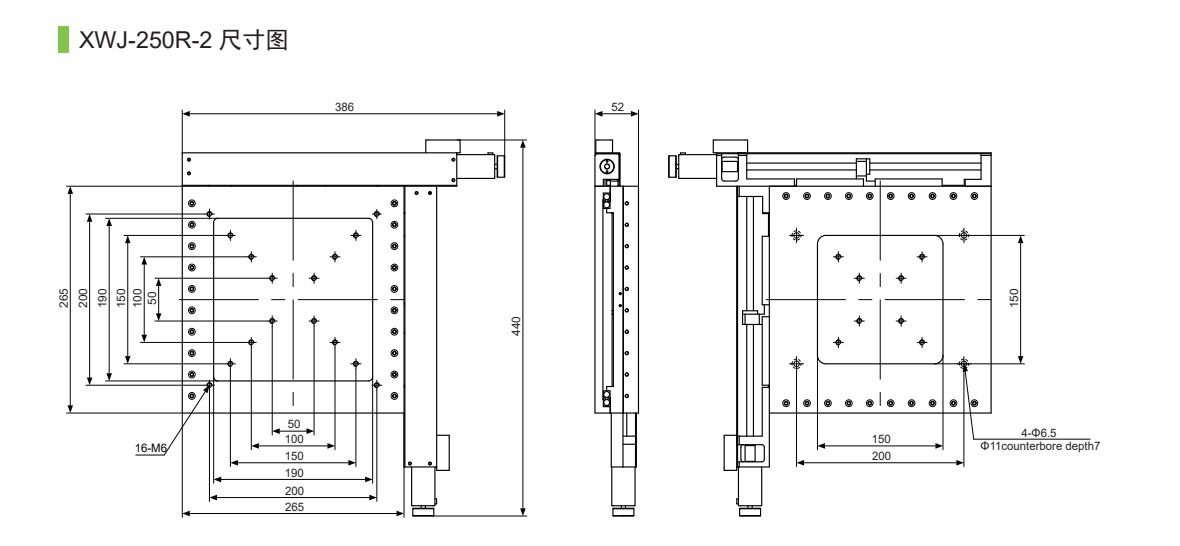

| Travel Range (mm) XWJ-250R-2/2G | 250×250 |

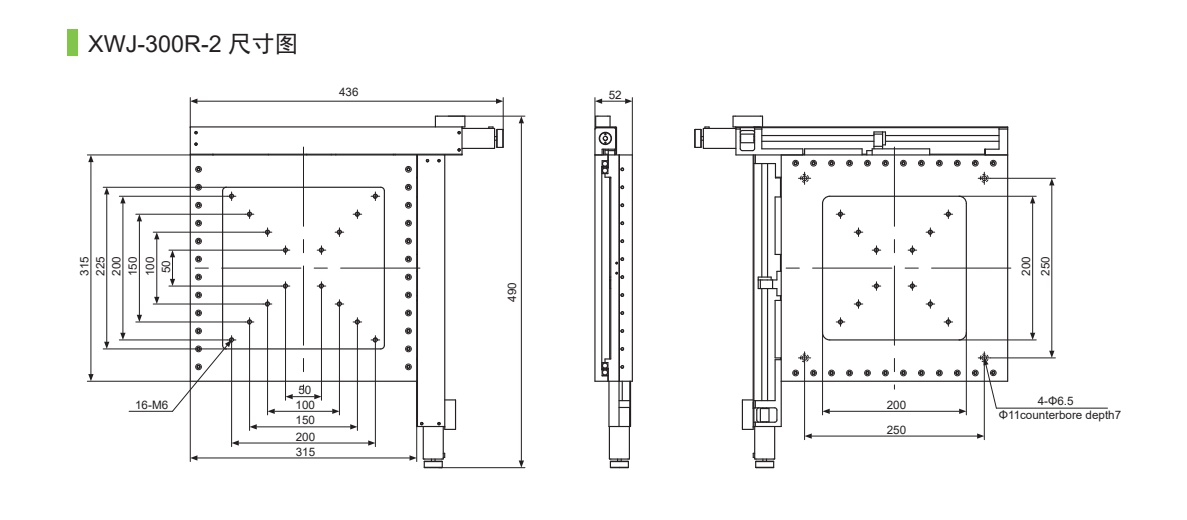

| Travel Range (mm) XWJ-300R-2/2G | 300×300 |
| Lead Screw Pitch (mm) | 2 |
| Main Material | 铝合金 |
| Surface Treatment | 阳极氧化发黑 |
| Guide Rail | 交叉滚子导轨 |
| Max Speed (mm/s) | 15 |
| Repeatability (μm) XWJ-50R-2/2G | ±1 |
| Repeatability (μm) XWJ-100R-2/2G | ±1 |
| Repeatability (μm) XWJ-150R-2/2G | ±1 |
| Repeatability (μm) XWJ-200R-2/2G | ±1.5 |
| Repeatability (μm) XWJ-250R-2/2G | ±1.5 |
| Repeatability (μm) XWJ-300R-2/2G | ±1.5 |
| Resolution (μm) | 1.25 |
| Positioning Accuracy (μm) XWJ-50R-2/2G | ±1.5 |
| Positioning Accuracy (μm) XWJ-100R-2/2G | ±1.5 |
| Positioning Accuracy (μm) XWJ-150R-2/2G | ±1.5 |
| Positioning Accuracy (μm) XWJ-200R-2/2G | ±1.5 |
| Positioning Accuracy (μm) XWJ-250R-2/2G | ±1.5 |
| Positioning Accuracy (μm) XWJ-300R-2/2G | ±1.5 |
| Orthogonality (μm) | 10-35 |
| Drive Motor | 28步进电机 |
| Step Angle | 1.8 |
| Center Load (kg) | 20 |
| Weight (kg) XWJ-50R-2/2G | 2.84 |
| Weight (kg) XWJ-100R-2/2G | 3.12 |
| Weight (kg) XWJ-150R-2/2G | 4.62 |
| Weight (kg) XWJ-200R-2/2G | 4.88 |
| Weight (kg) XWJ-250R-2/2G | 6.25 |
| Weight (kg) XWJ-300R-2/2G | 7.7 |
| Rated Current (A) | 0.7 |
