XWJ-LM-X25Y50-2G
The XWJ-LM-X25Y50-2G is a precision motion control platform designed for high-accuracy applications. It features compact dimensions, high-speed operation, and excellent positioning accuracy, making it ideal for various industrial and scientific uses.
Save to Favorites
Overview

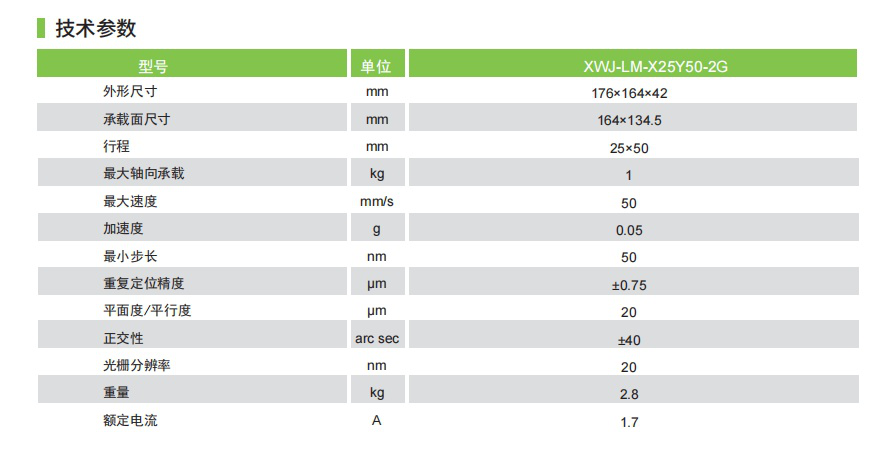

Specifications
| Parameter | Value |
|---|---|

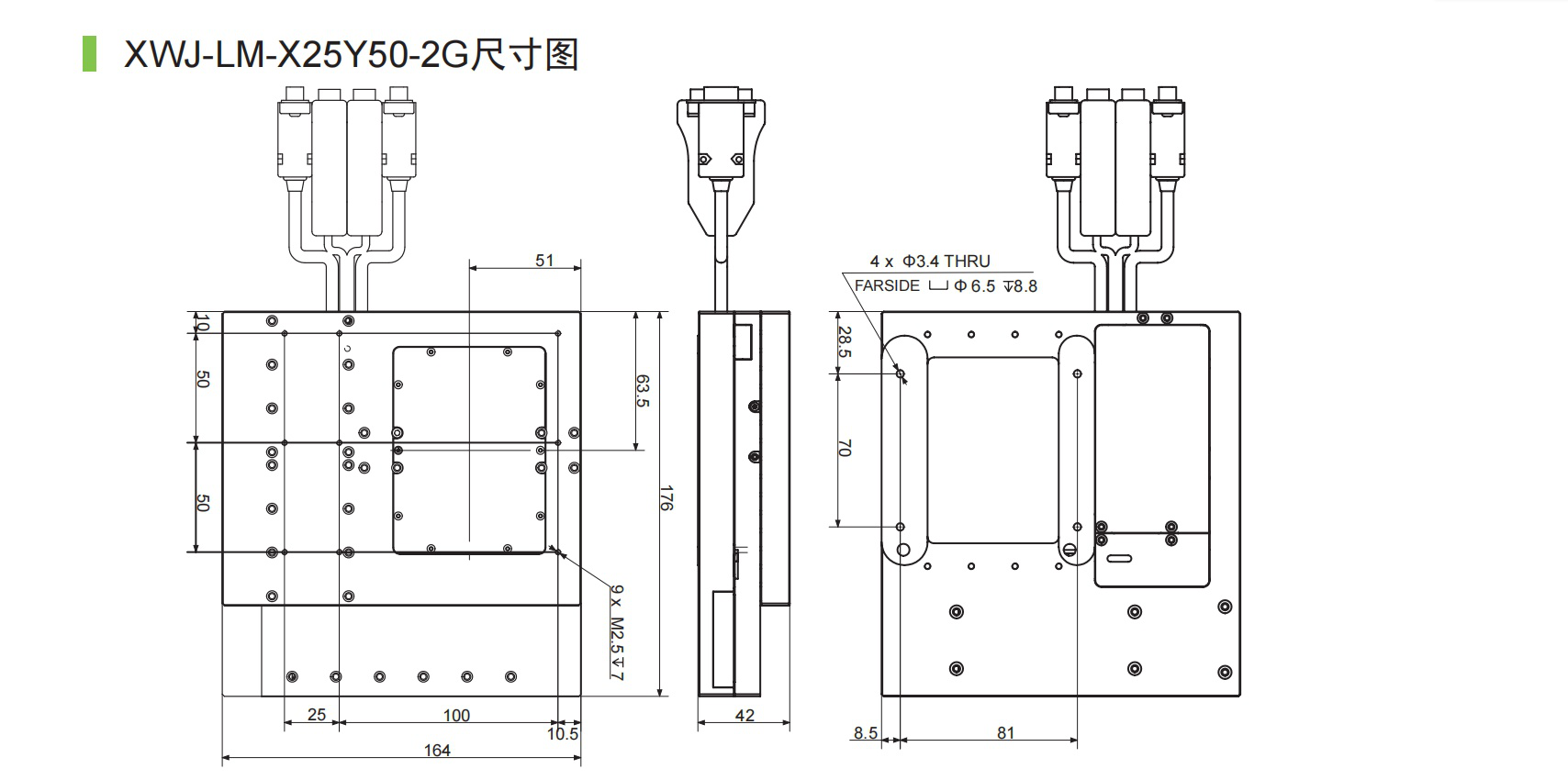

| Dimensions(mm) | 176×164×42 |
| Load Area Dimensions(mm) | 164×134.5 |
| Travel Range(mm) | 25×50 |
| Max Axial Load(kg) | 1 |
| Max Speed(mm/s) | 50 |
| Acceleration(g) | 0.05 |
| Minimum Step Length(nm) | 50 |
| Repeatability Accuracy(μm) | ±0.75 |
| Flatness/Parallelism(μm) | ±40 |
| Orthogonality(arc sec) | 20 |
| Optical Axis Resolution(μm) | 20 |
| Weight(kg) | 2.8 |
| Rated Current(A) | 1.7 |
