NS-Z100-02
The NS-Z100-02 is a precision Z-axis actuator designed for high-accuracy positioning applications. It features a capacitive sensor type and is made of aluminum alloy for lightweight and durable performance.
Save to Favorites
Overview

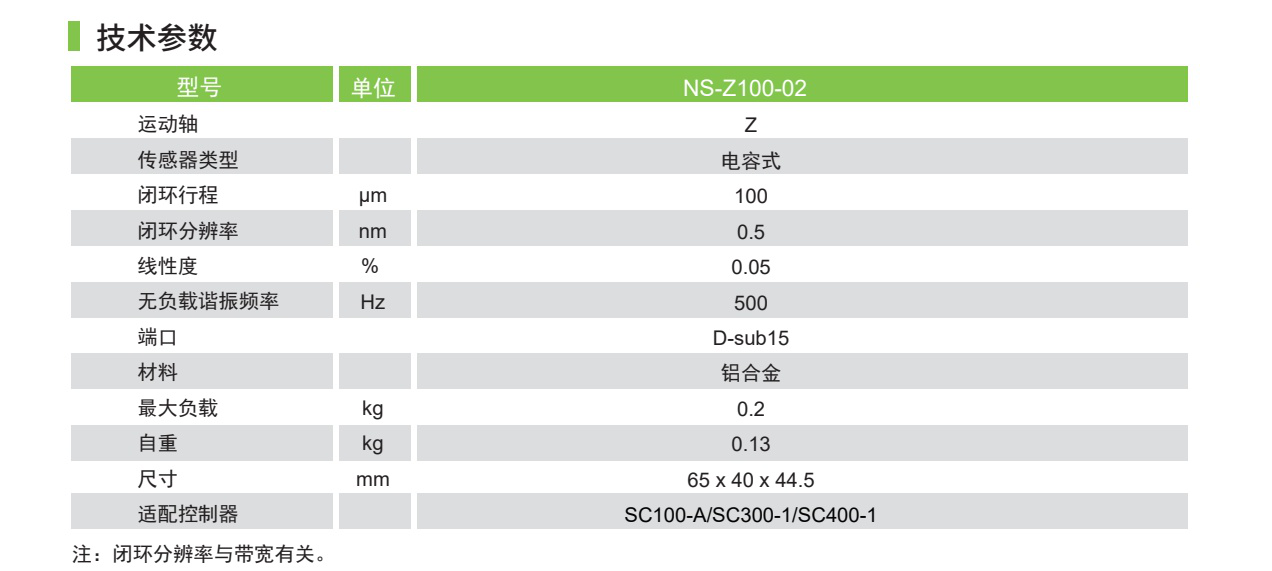

Specifications
| Parameter | Value |
|---|---|
| Motion Axis | Z |
| Sensor Type | Capacitive |
| Closed-loop Travel (μm) | 100 |
| Closed-loop Resolution (nm) | 0.5 |
| Linearity (%) | 0.05 |
| No-load Resonance Frequency (Hz) | 500 |
| Port | D-sub15 |
| Material | Aluminum Alloy |
| Maximum Load (kg) | 0.2 |
| Self Weight (kg) | 0.13 |

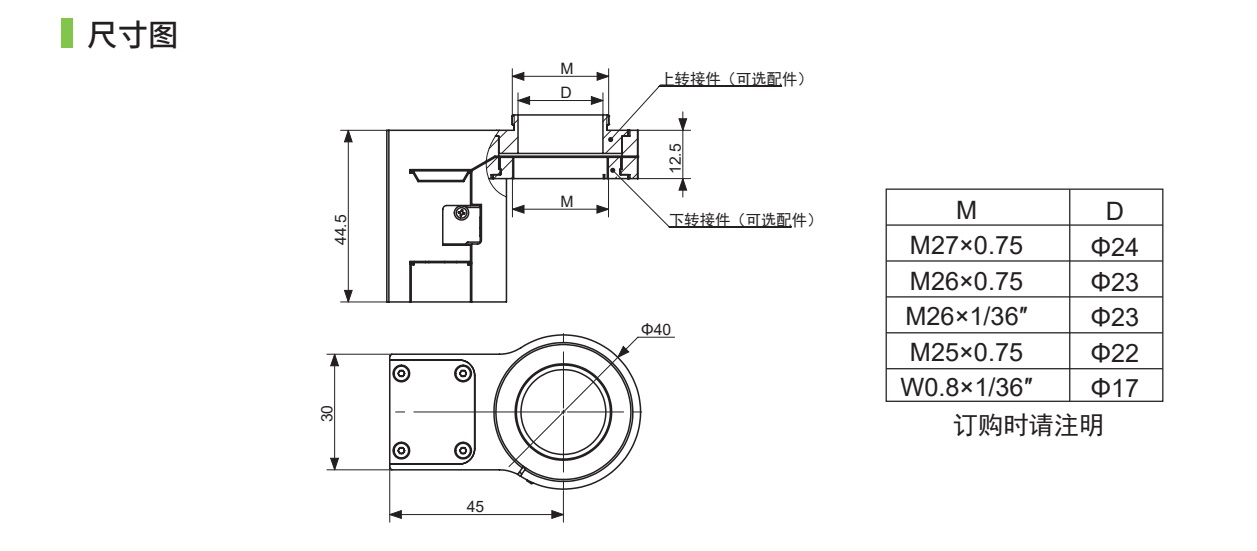

| Dimensions (mm) | 65x40x44.5 |
| Compatible Controller | SC100-A/SC300-1/SC400-1 |
