NS-Z100-01
The NS-Z100-01 is a high-precision capacitive sensor designed for Z-axis motion control, offering exceptional accuracy and reliability for various applications.
Save to Favorites
Overview

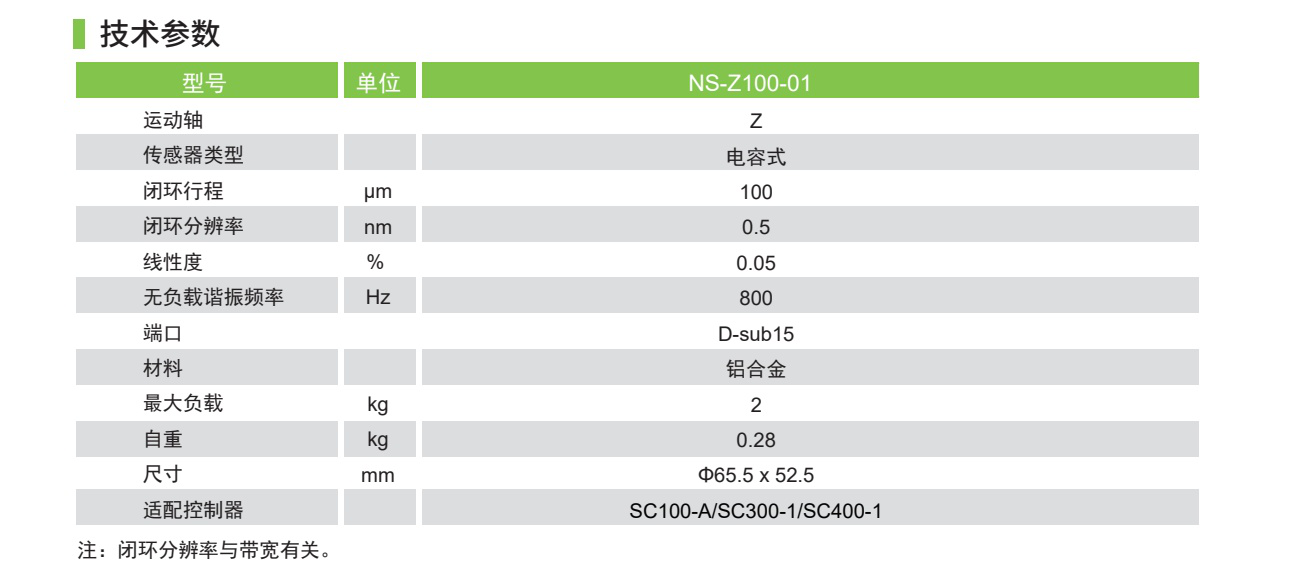

Specifications
| Parameter | Value |
|---|---|
| Motion Axis | Z |
| Sensor Type | Capacitive |
| Closed-loop Travel (μm) | 100 |
| Closed-loop Resolution (nm) | 0.5 |
| Linearity (%) | 0.05 |
| No-load Resonance Frequency (Hz) | 800 |
| Port | D-sub15 |
| Material | Aluminum alloy |
| Maximum Load (kg) | 2 |
| Weight (kg) | 0.28 |

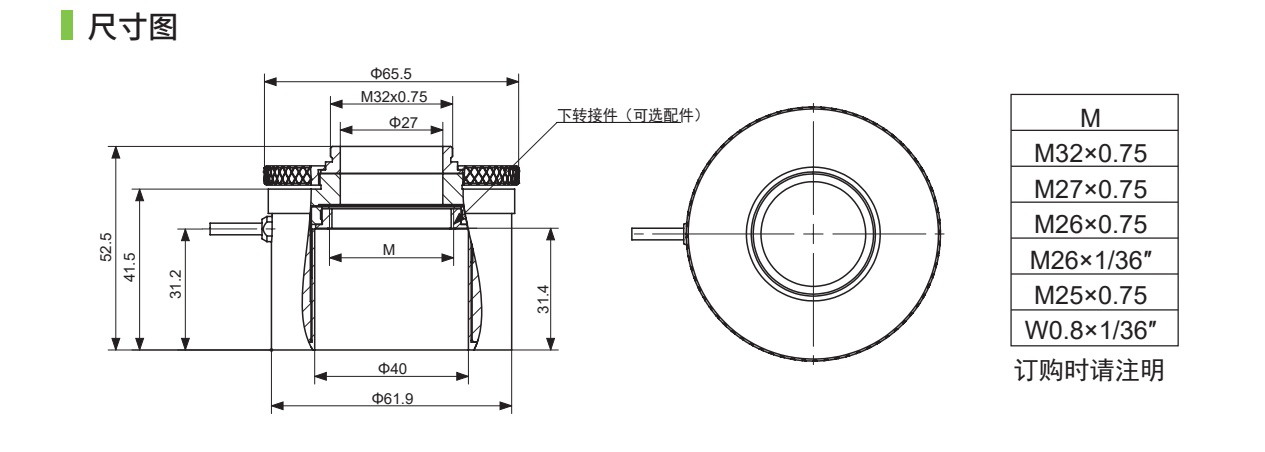

| Dimensions (mm) | Φ65.5×52.5 |
| Compatible Controllers | SC100-A/SC300-1/SC400-1 |
Applications
Key Features
Datasheet
