HRXWJ-50R-2
HRXWJ-50R-2 is a high-precision optical positioning stage designed for applications requiring accurate and stable movement control.
Save to Favorites
Overview

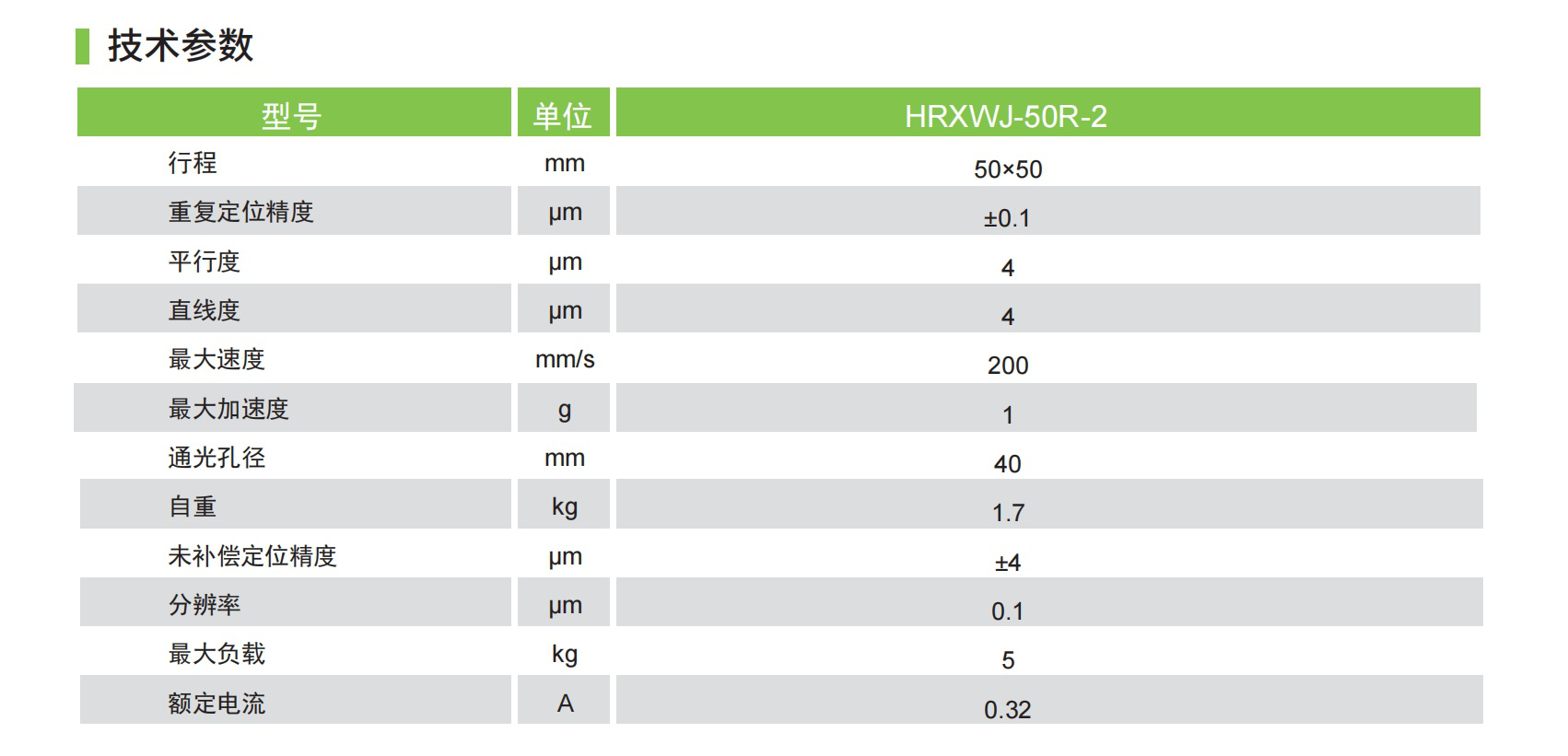

Specifications
| Parameter | Value |
|---|---|
| Travel Range | 50×50mm |
| Repeat Positioning Accuracy | ±0.1μm |
| Parallelism | 4μm |
| Straightness | 4μm |
| Maximum Speed | 200mm/s |
| Maximum Acceleration | 1g |
| Clear Aperture | 40mm |
| Weight | 1.7kg |
| Uncompensated Positioning Accuracy | ±4μm |
| Resolution | 0.1μm |
| Maximum Load | 5kg |
| Rated current | 0.32A |
Applications
Key Features
Datasheet
