PXIe-7151
The PXIe-7151 is a high-performance PXIe-based matrix switch module designed for precise signal routing and testing in automated systems.
Save to Favorites
Overview

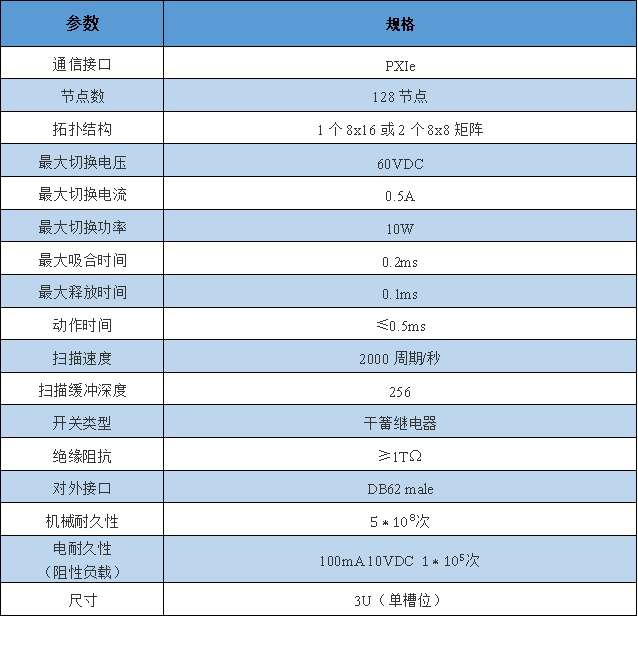

Specifications
| Parameter | Value |
|---|---|
| Communication Interface | PXIe |
| Number of Nodes | 128 |
| Topology | 1x8x16 or 2x8x8 matrix |
| Maximum Switching Voltage | 60VDC |
| Maximum Switching Current | 0.5A |
| Maximum Switching Power | 10W |
| Maximum Pull-in Time | 0.2ms |
| Maximum Release Time | 0.1ms |
| Action Time | ≤0.5ms |
| Scanning Speed | 2000 cycles/second |
| Scanning Buffer Depth | 256 |
| Switch Type | Electromechanical relay |
| Insulation Resistance | ≥1TΩ |
| External Interface | DB62 male |
| Mechanical Durability | 5*10^8 cycles |
| Electrical Durability (Resistive Load) | 100mA10VDC 1*10^5 cycles |
| Dimensions | 3U (single slot) |
