PXIe-4431 Multifunction IO
PXIe-4431 is a multifunction input/output module designed for high-speed data acquisition and signal processing applications. It offers high resolution and precision for analog and digital signals, making it ideal for various industrial and scientific uses.
Save to Favorites
Overview

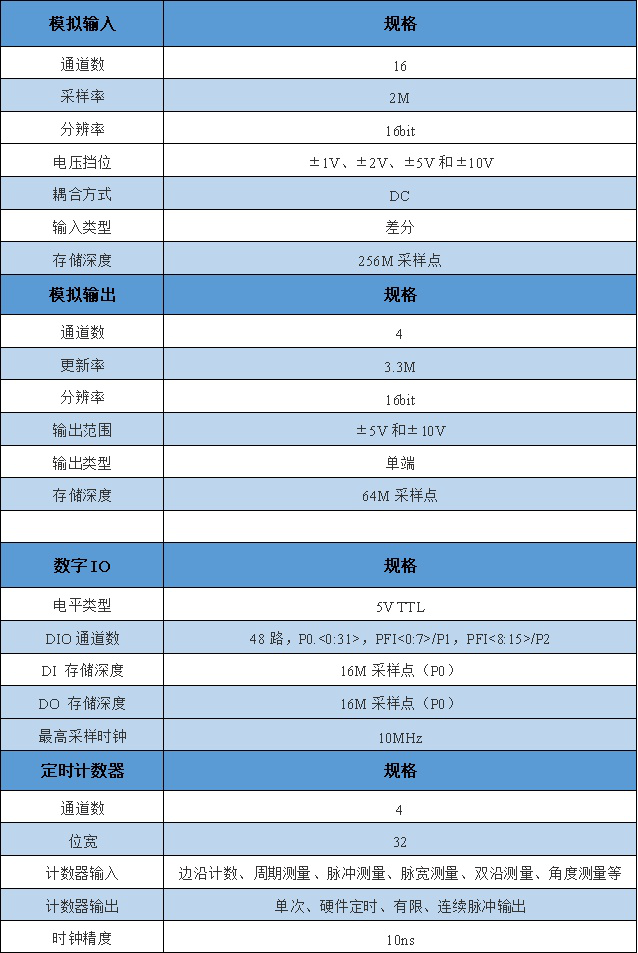

Specifications
| Parameter | Value |
|---|---|
| Number of Channels (Analog Input) | 16 |
| Sampling Rate (Analog Input) | 2M |
| Resolution (Analog Input) | 16bit |
| Voltage Range (Analog Input) | ±1V, ±2V, ±5V, ±10V |
| Coupling Mode (Analog Input) | DC |
| Input Type (Analog Input) | Differential |
| Memory Depth (Analog Input) | 256M samples |
| Number of Channels (Analog Output) | 4 |
| Update Rate (Analog Output) | 3.3M |
| Resolution (Analog Output) | 16bit |
| Output Voltage Range (Analog Output) | ±5V, ±10V |
| Output Type (Analog Output) | Single-ended |
| Memory Depth (Analog Output) | 64M samples |
| Level Type (Digital IO) | 5V TTL |
| DIO Channels (Digital IO) | 48 channels, PO<0:31>, PFI<0:7>/P1, PFI<8:15>/P2 |
| DI Memory Depth (Digital IO) | 16M samples (PO) |
| DO Memory Depth (Digital IO) | 16M samples (PO) |
| Maximum Sampling Clock (Digital IO) | 10MHz |
| Number of Channels (Timer) | 4 |
| Bit Width (Timer) | 32 |
| Counter Input (Timer) | Edge counting |
| Counter Input (Timer) | frequency measurement |
| Counter Input (Timer) | pulse measurement |
| Counter Input (Timer) | pulse width measurement |
| Counter Input (Timer) | double pulse measurement |
| Counter Input (Timer) | angle measurement |
| Counter Output Type (Timer) | Single |
| Counter Output Type (Timer) | hardware timing |
| Counter Output Type (Timer) | limited |
| Counter Output Type (Timer) | continuous pulse output |
| Clock Accuracy (Timer) | 10ns |
