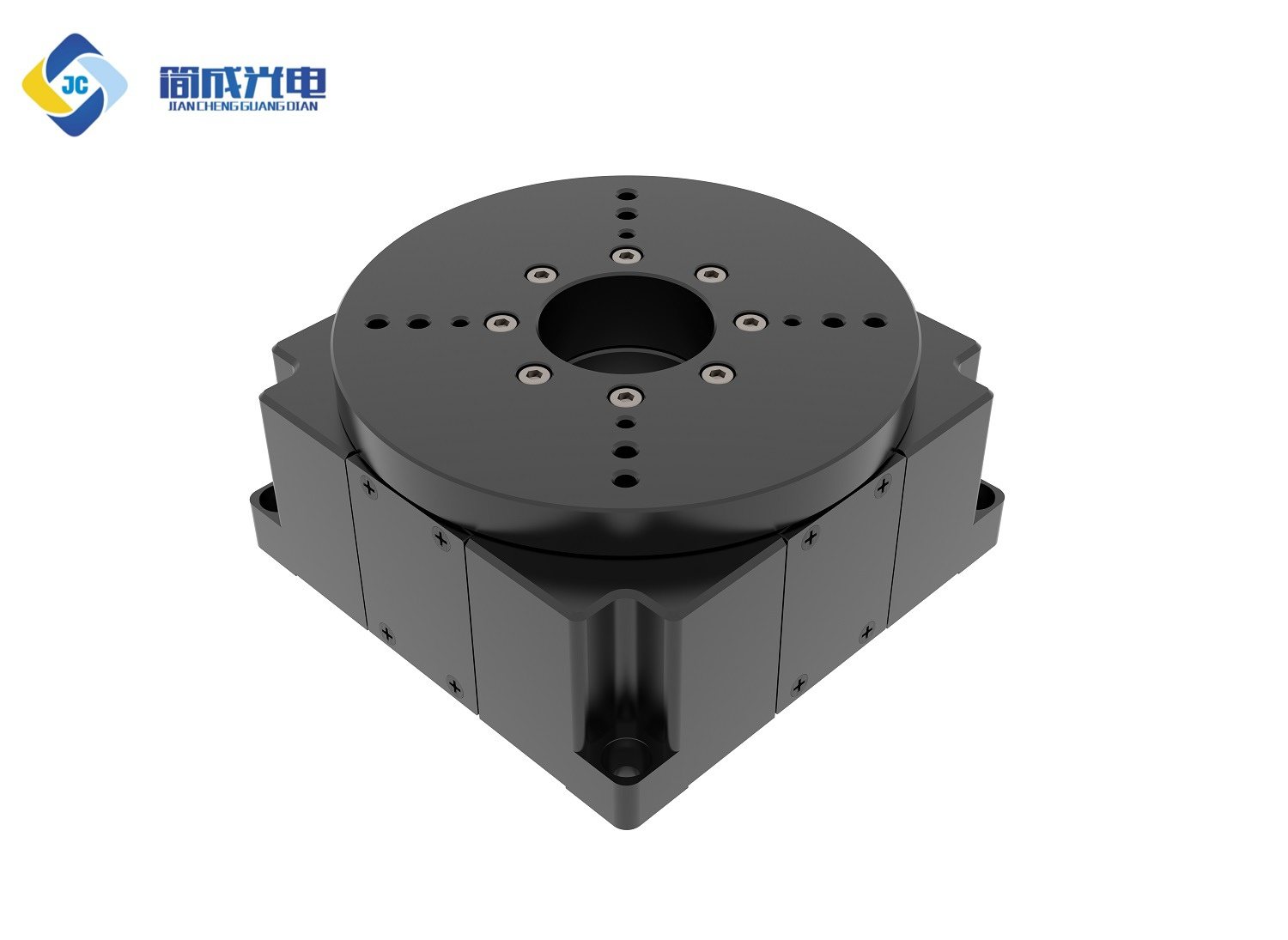

Precision Rotary Stage
This precision rotary stage is designed for high-accuracy rotational positioning in optical and photonic applications. It features a robust structure and smooth operation, making it ideal for demanding environments.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Dimensions | 100mm x 100mm x 50mm |
| Central Hole Diameter | 30mm |
| Maximum Load | 50kg |
| Rotational Accuracy | ±0.01° |
| Repeatability | ±0.005° |
| Drive Method | Stepper motor |
| Operating Voltage | 24V DC |
| Weight | 2.5kg |
Applications
Key Features
Datasheet
Supplier Information
