HSGQ-SFP 1G BIDI Module
The HSGQ-SFP 1G BIDI Module is a high-performance optical transceiver designed for efficient data transmission in various networking applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Data Rate | 1.25Gbps |
| Wavelength | 1310nm/1550nm |
| Interface | LC/SC |
| Receiving Sensitivity | ≤-23dBm |
| Transmitter Power | -9~0dBm |
| Center Wavelength | 1310nm/1550nm |
| Spectral Width | 1nm |
| Extinction Ratio | ≥3.5dB |
| Receiver Sensitivity | ≤-23dBm |
| LOS Sensitivity | -30~-23dBm |
| Operating Voltage | 3.3V |
| Storage Temperature | -40°C~85°C |
| Maximum Power Consumption | 1W |
Applications
Key Features

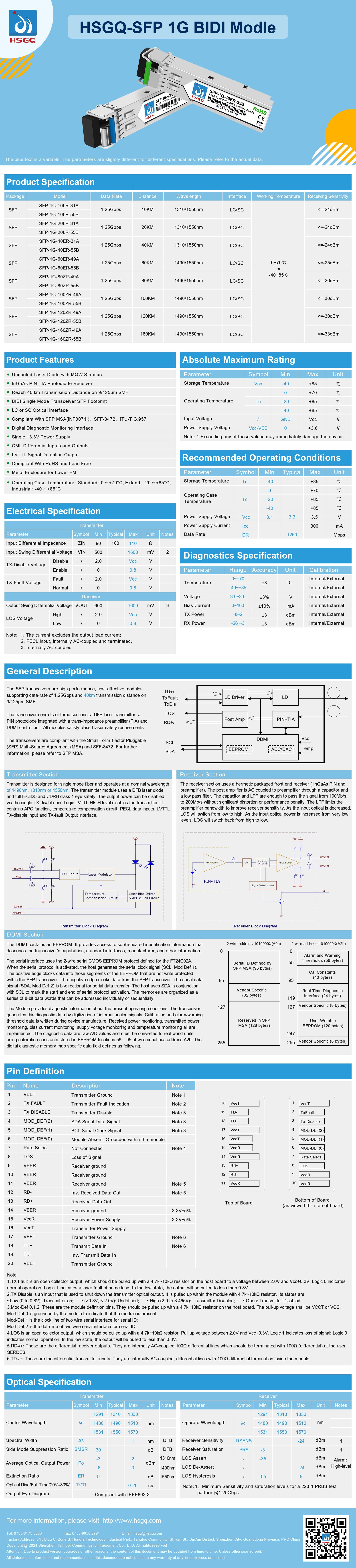

Datasheet
