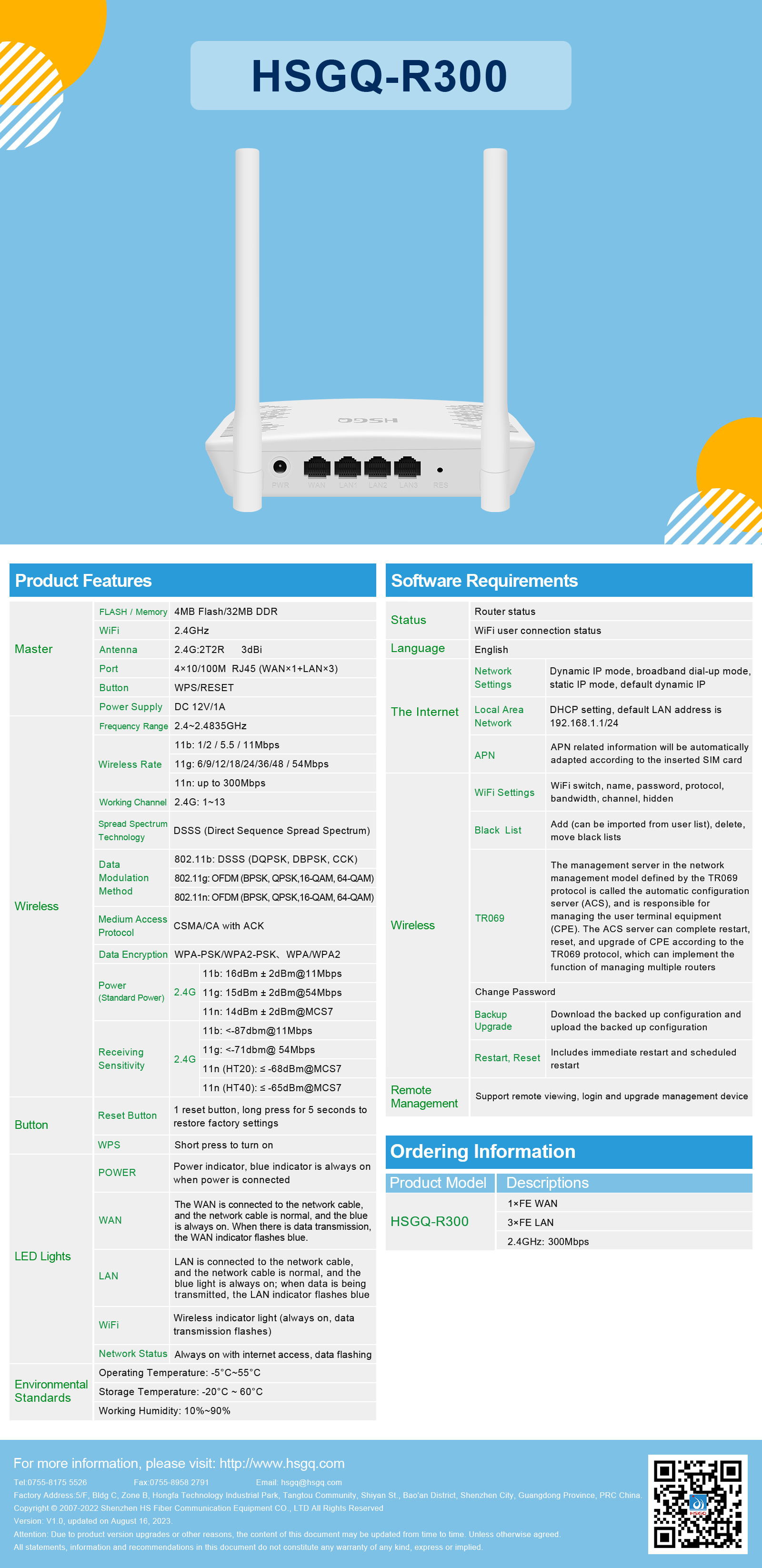

HSGQ-R300
HSGQ-R300 is a high-performance wireless router designed for stable and efficient network connectivity, featuring advanced wireless technology and robust management capabilities.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Flash Memory | 4MB |
| Memory | 32MB DDR |
| WiFi Frequency | 2.4GHz |
| Antenna | 2.4G 2T2R 3dBi |
| Port | 4×10/100M RJ45 (WAN×1+LAN×3) |
| Button | WPS/RESET |
| Power Supply | DC 12V1A |
| Frequency Range | 2.4-2.4835GHz |
| Wireless Rate | 11b: 1/2/5.5/11Mbps, 11g: 6/9/12/18/24/36/48/54Mbps, 11n: up to 300Mbps |
| Working Channel | 2.4G: 1-13 |
| Spread Spectrum Technology | DSSS (Direct Sequence Spread Spectrum) |
| Data Modulation Method | 802.11b: DSSS (DQPSK, DBPSK, CCK), 802.11g: OFDM (BPSK, QPSK, 16-QAM, 64-QAM), 802.11n: OFDM (BPSK, QPSK, 16-QAM, 64-QAM) |
| Medium Access Protocol | CSMA/CA with ACK |
| Data Encryption | WPA-PSK/WPA2-PSK, WPA/WPA2 |
| Power (Standard Power) | 11b: ≤16dBm±2dBm@11Mbps, 11g: ≤15dBm±2dBm@54Mbps, 11n: ≤14dBm±2dBm@MCS7 |
| Receiving Sensitivity | 11b: <-87dBm@11Mbps, 11g: <-71dBm@54Mbps, 11n (HT20): <-68dBm@MCS7, 11n (HT40): <-65dBm@MCS7 |
| Reset Button | 1 reset button, long press for 5 seconds to restore factory settings |
| WPS Button | Short press to turn on |
| Power Indicator | Power indicator |
| Power Indicator | blue indicator is always on when power is connected |
| WAN Indicator | The WAN is connected to the network cable, and the network cable is normal, and the blue light is always on; when there is data transmission, the WAN indicator flashes blue |
| LAN Indicator | LAN is connected to the network cable, and the network cable is normal, and the blue light is always on; when data is being transmitted, the LAN indicator flashes blue |
| WiFi Indicator | Wireless indicator light (always on, data transmission flashes) |
| Network Status Indicator | Always on with internet access |
| Network Status Indicator | data flashing |
| Operating Temperature | -5°C~55°C |
| Storage Temperature | -20°C~60°C |
| Working Humidity | 10%~90% |
