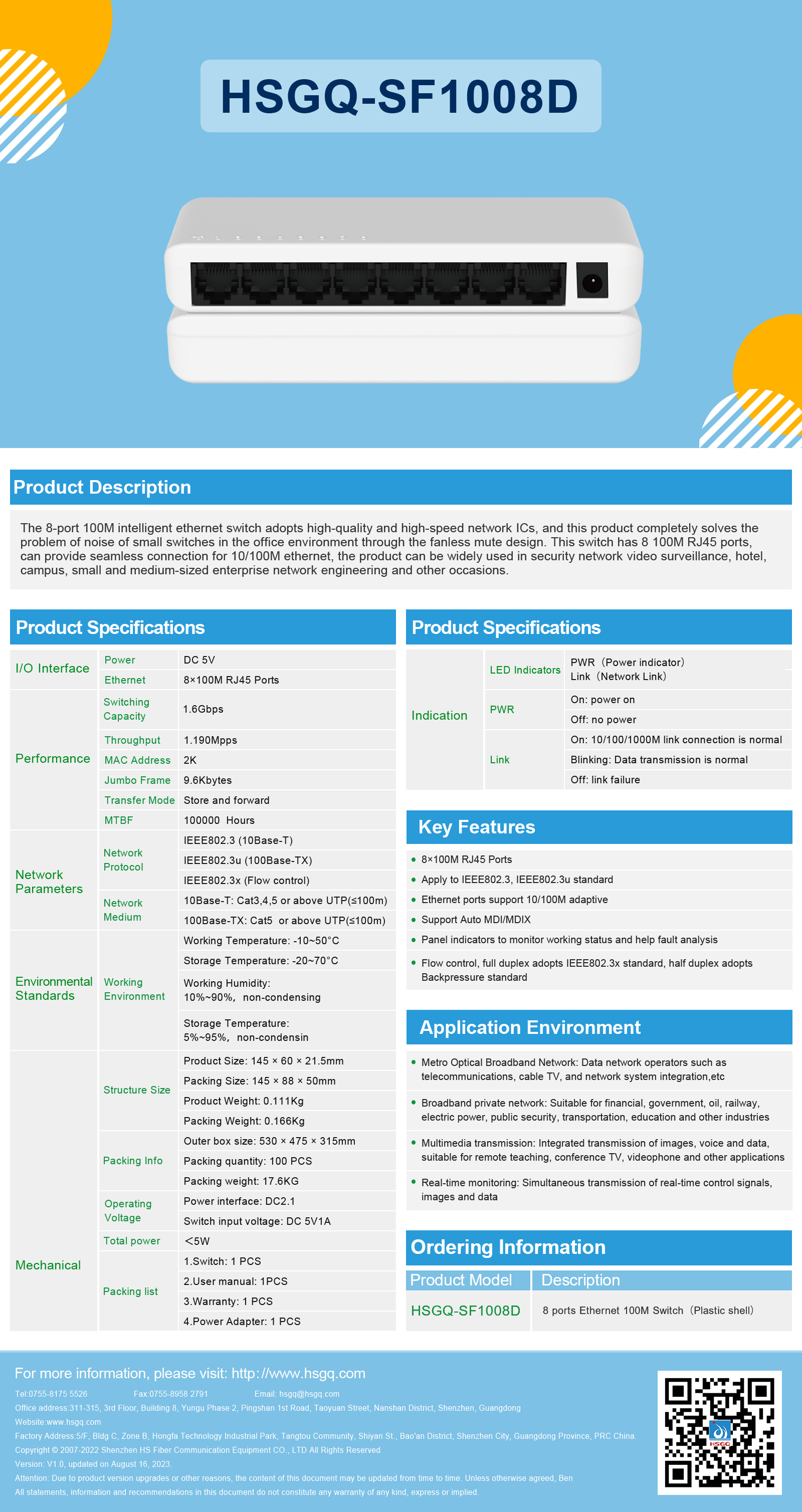

HSGQ-SF1008D
The 8-port 100M intelligent Ethernet switch adopts high-quality and high-speed network ICs, solving the noise problem of small switches in fanless environments. It features 8 100M RJ45 ports and provides seamless connectivity for 10/100M Ethernet. Widely used in security network video surveillance, hotels, campuses, and small to medium-sized enterprise network engineering.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Power | DC 5V |
| Ethernet | 8×100M RJ45 Ports |
| Switching Capacity | 1.6Gbps |
| Throughput | 1.190Mpps |
| MAC Address | 8Kbytes |
| Jumbo Frame | 9.6Kbytes |
| Transfer Mode | Store and forward |
| MTBF | 10000 Hours |
| Network Protocol | IEEE802.3 (10Base-T), IEEE802.3u (100Base-TX) |
| Network Medium | 10Base-T: Cat3,4,5 or above UTP(≤100m), 100Base-TX: Cat5 or above UTP(≤100m) |
| Working Temperature | -10℃~50℃ |
| Storage Temperature | -20℃~70℃ |
| Working Humidity | 10%~90%, non-condensing |
| Storage Humidity | 5%~95%, non-condensing |
| Product Size | 145×60×21.5mm |
| Packing Size | 145×88×50mm |
| Product Weight | 0.111Kg |
| Packing Weight | 0.166Kg |
| Outer Box Size | 530×475×315mm |
| Packing Quantity | 100 PCS |
| Total Weight | 17.6Kg |
| Switch Input Voltage | DC 5V1A |
| Total Power | <5W |
| LED Indicators | PWR (Power indicator), Link (Network Link) |
| Indication | PWR: On: power on, Off: no power; Link: On: 10/100/1000M link connection is normal, Blinking: Data transmission is normal, Off: link failure |
| Packing Info | 1.Switch: 1 PCS, 2.User manual: 1 PCS, 3.Warranty: 1 PCS, 4.Power Adapter: 1 PCS |
