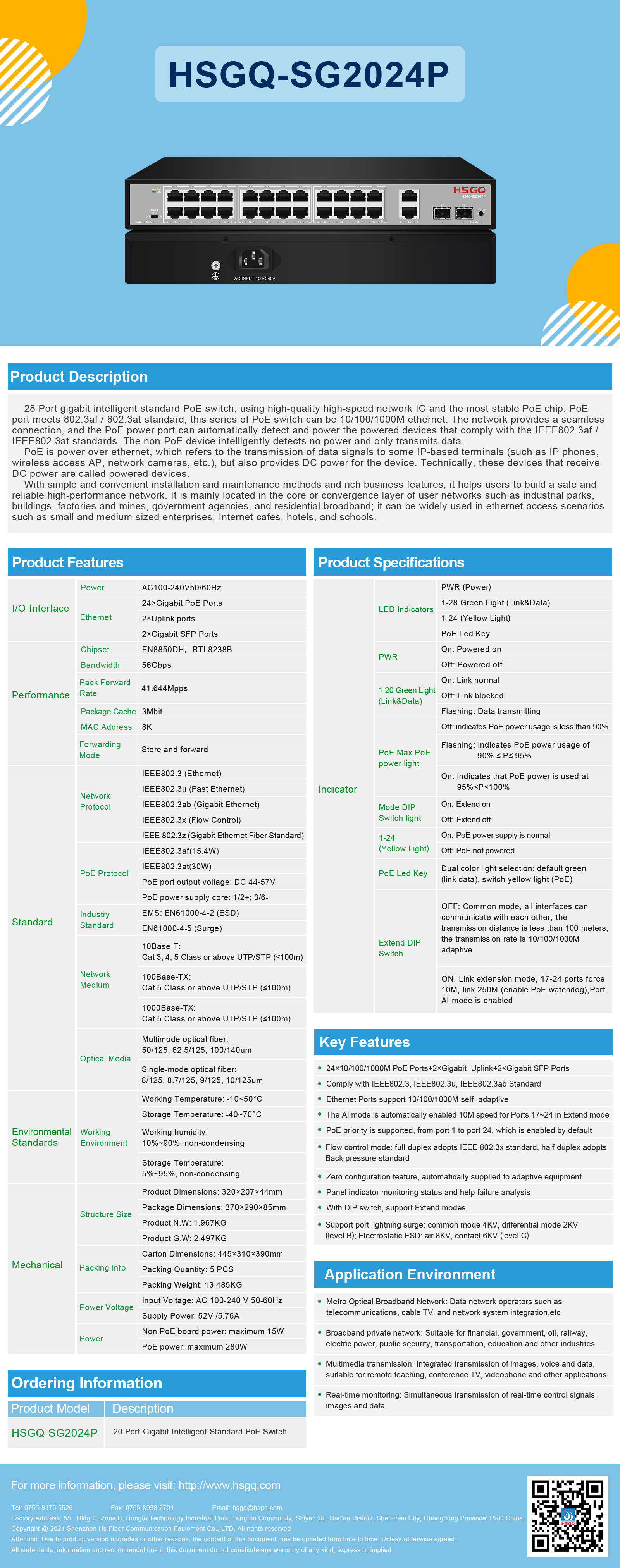

HSGQ-SG2024P
28-port gigabit intelligent standard PoE switch, featuring high-quality high-speed network IC and stable PoE chip. It supports IEEE802.3af/802.3at standards, ensuring seamless 10/100/1000M Ethernet connection. The PoE ports automatically detect and power devices compliant with IEEE802.3af/802.3at standards, while non-PoE devices only transmit data. Ideal for powering IP-based terminals like IP phones, wireless access points, and network cameras.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Power | AC100-240V50/60Hz |
| Ethernet Ports | 24×Gigabit PoE Ports |
| Uplink Ports | 2×Gigabit Ports |
| SFP Ports | 2×Gigabit SFP Ports |
| Chipset | EN8850DH, RTL8238B |
| Bandwidth | 56Gbps |
| Pack Forward Rate | 41.644Mpps |
| Package Cache | 3Mbit |
| MAC Address | 8K |
| Forwarding Mode | Store and forward |
| Network Protocol | IEEE802.3 (Ethernet), IEEE802.3u (Fast Ethernet), IEEE802.3ab (Gigabit Ethernet), IEEE802.3x (Flow Control), IEEE802.3z (Gigabit Ethernet Fiber Standard) |
| PoE Protocol | IEEE802.3af (15.4W), IEEE802.3at (30W) |
| PoE Port Output Voltage | DC44-57V |
| PoE Port Power Supply Core | 1/2-, 3/6+ |
| Industry Standard | EMS: EN61000-4-2 (ESD), EN61000-4-5 (Surge) |
| Network Medium | 10Base-T: Cat 3, 4, 5 Class or above UTP/STP (≤100m), 100Base-TX: Cat 5 Class or above UTP/STP (≤100m), 1000Base-TX: Cat 5 Class or above UTP/STP (≤100m) |
| Optical Mode | Multimode optical fiber: 50/125, 62.5/125, 100/140um; Single-mode optical fiber: 8/125, 8.7/125, 9/125, 10/125um |
| Working Temperature | -10°C~50°C |
| Storage Temperature | -40°C~70°C |
| Working Humidity | 10%~90%, non-condensing |
| Storage Humidity | 5%~95%, non-condensing |
| Product Dimensions | 320×207×44mm |
| Package Dimensions | 370×290×85mm |
| Product Net Weight | 1.967KG |
| Product Gross Weight | 2.497KG |
| Carton Dimensions | 445×310×390mm |
| Packing Quantity | 5 PCS |
| Packing Weight | 13.485KG |
| Input Voltage | AC100-240V 50-60Hz |
| Supply Power | 52V/5.76A |
| Non-PoE Port Power | Maximum 15W |
| PoE Port Power | Maximum 280W |
| LED Indicators | PWR (Power): On: Powered on, Off: Powered off; 1-20 Green Light (Link&Data): On: Link normal, Off: Link blocked, Flashing: Data transmitting; 1-24 Yellow Light: On: PoE power supply is normal, Off: PoE not powered; PoE Max PoE Power Usage: Flashing: Indicates PoE power usage is less than 90%, 90%≤PS≤95%, On: Indicates that PoE power is used at 95%≤PS<100% |
| Mode DIP Switch Light | On: Extend on, Off: Extend off |
| PoE LED Key | Default green (link data), switch yellow light (PoE) |
| Extend DIP Switch | On: Link extension mode, 17-24 ports force 10M, link 250M (enable PoE watchdog), Port AI mode is enabled |
