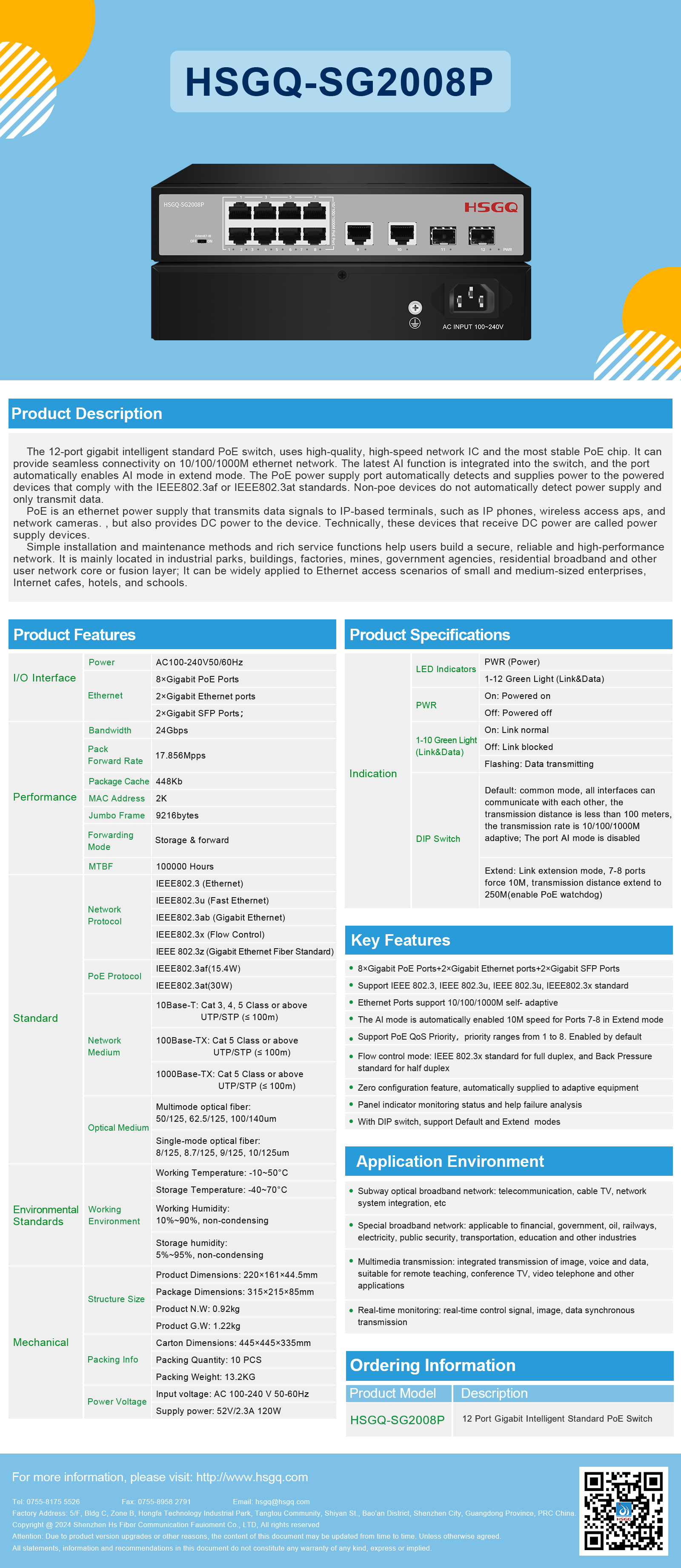

HSGQ-SG2008P
The 12-port gigabit intelligent standard PoE switch uses high-quality, high-speed network IC and the most stable PoE chip. It provides seamless connectivity on 10/100/1000M Ethernet networks. The latest AI function is integrated into the switch, and the port automatically enables AI mode in extend mode. The PoE power supply port automatically detects and supplies power to the powered devices that comply with IEEE802.3af or IEEE802.3at standards. Non-PoE devices do not automatically detect power supply and only transmit data.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Power | AC100-240V50/60Hz |
| Ethernet Ports | 8×Gigabit PoE Ports, 2×Gigabit Ethernet Ports, 2×Gigabit SFP Ports |
| Bandwidth | 24Gbps |
| Pack Forward Rate | 17.856Mpps |
| Package Cache | 448Kb |
| MAC Address | 2K |
| Jumbo Frame | 9216bytes |
| Forwarding Mode | Storage & forward |
| MTBF | 100000 Hours |
| Network Protocol | IEEE802.3 (Ethernet), IEEE802.3u (Fast Ethernet), IEEE802.3ab (Gigabit Ethernet), IEEE802.3x (Flow Control), IEEE802.3z (Gigabit Ethernet Fiber Standard), IEEE802.3af(15.4W), IEEE802.3at(30W) |
| Network Medium | 10Base-TX: Cat 3, 4, 5 Class or above UTP/STP (≤100m), 100Base-TX: Cat 5 Class or above UTP/STP (≤100m), 1000Base-TX: Cat 5 Class or above UTP/STP (≤100m) |
| Optical Medium | Multimode optical fiber: 50/125, 62.5/125, 100/140um; Single-mode optical fiber: 8/125, 8.7/125, 9/125, 10/125um |
| Working temperature | -10~50°C |
| Storage Temperature | -40~70°C |
| Working Humidity | 10%~90%, non-condensing |
| Storage Humidity | 5%~95%, non-condensing |
| Product Dimensions | 220×161×44.5mm |
| Package Dimensions | 315×215×85mm |
| Product N.W. | 0.96kg |
| Product G.W. | 1.22kg |
| Carton Dimensions | 445×445×335mm |
| Packing Quantity | 10 PCS |
| Packing Weight | 13.2KG |
| Input Voltage | AC 100-240V 50-60Hz |
| Power Supply | 52V/2.3A 120W |
| LED Indicators | PWR (Power), 1-12 Green Light (Link&Data) |
| Indication | PWR: On: Powered on, Off: Powered off; 1-10 Green Light (Link&Data): On: Link normal, Off: Link blocked, Flashing: Data transmitting |
| DIP Switch | Default: common mode, all interfaces can communicate with each other, the transmission distance is less than 100 meters, the transmission rate is 10/100/1000M adaptive; Extend: Link extension mode, 7-8 ports force 10M, transmission distance extend to 250m (enable PoE watchdog) |
