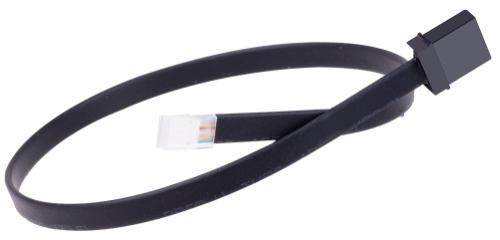

MT-FA (42.5°)

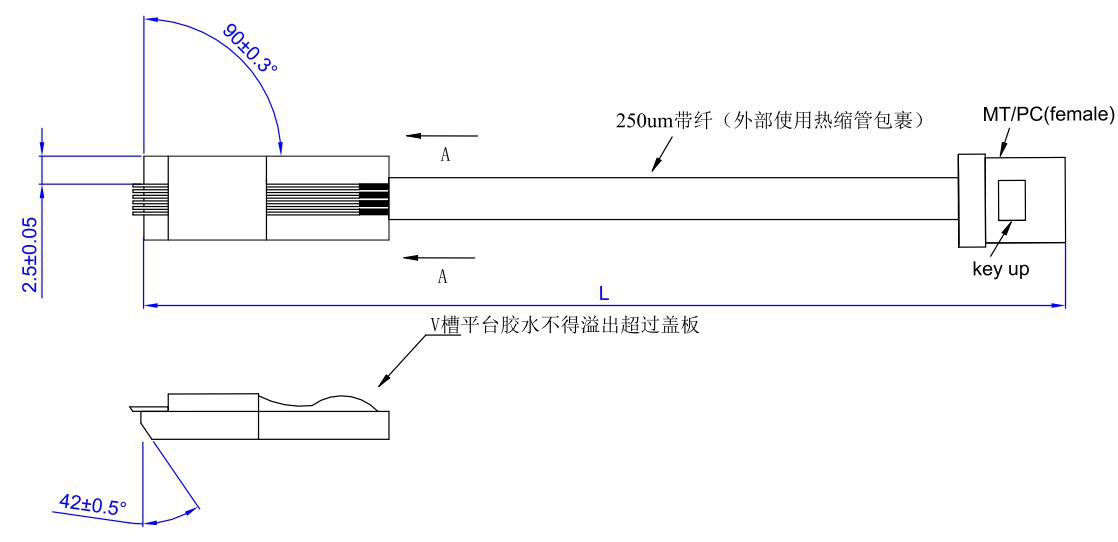

MT-FA (42.5°) uses a 42.5° total reflection FA as the RX receiving end to directly connect with the PD Array, completing optical-electrical conversion. Utilizing the compact MT plug-in structure, it achieves parallel transmission of multiple optical paths, currently widely used in high-speed optical module connections.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Operating Wavelength (nm) | 850~1650 |
| Insertion Loss (dB) | <0.5 |
| Return Loss (dB) | ≥50 |
| Operating Temperature (°C) | -40~+85 |
| Position Deviation (μm) | <1.0 (0.3/0.5/0.7/1.0 customizable based on channel count requirements) |
Applications
Key Features
Datasheet
