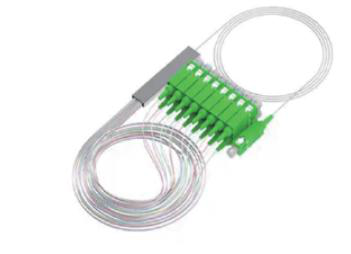

Polarization Maintaining PLC Splitter

Polarization Maintaining PLC Splitter

Supplier
Fibretop
Part Number
Polarization Maintaining PLC Splitter
Category
Automation and Control
Origin
China

Polarization Maintaining PLC Splitter is a high-performance optical splitter based on planar waveguide technology, designed to maintain stable polarization in fiber optic systems. It ensures excellent signal transmission and is suitable for high-precision applications such as optical sensing, quantum communication, and fiber optic networks.

Request a Quote Download Datasheet Chat
Save to Favorites Save to Favorites

Overview

Polarization Maintaining PLC Splitter is a high-performance optical splitter based on planar waveguide technology, designed to maintain stable polarization in fiber optic systems. It ensures excellent signal transmission and is suitable for high-precision applications such as optical sensing, quantum communication, and fiber optic networks.

Specifications

ParameterValue
Operating Wavelength (nm)1310 or 1550
Maximum Polarization Dependent Loss (PDL)0.1
Maximum Return Loss (dB)55
Minimum Directivity (dB)55
Connector TypeFC/APC, FC/PC, SC/APC, SC/PC, LC/APC, LC/PC, or others
Fiber Length (m)0.5, 1, 1.5, or others
Fiber TypeYOFC or CORNING PM 1310/PM 1550
Operating Temperature (°C)-5~+70
Storage Temperature (°C)-40~+85
Configuration Type 1xN1x2, 1x3, 1x4, 1x6, 1x8, 1x12, 1x16, 1x24, 1x32, 1x64
Maximum Insertion Loss (dB) 1x23.9
Maximum Insertion Loss (dB) 1x36.2
Maximum Insertion Loss (dB) 1x47.2
Maximum Insertion Loss (dB) 1x69.4
Maximum Insertion Loss (dB) 1x810.4
Maximum Insertion Loss (dB) 1x1212.6
Maximum Insertion Loss (dB) 1x1613.7
Maximum Insertion Loss (dB) 1x2415.8
Maximum Insertion Loss (dB) 1x3216.8
Maximum Insertion Loss (dB) 1x6421
Maximum Modal Uniformity (dB) 1x20.4
Maximum Modal Uniformity (dB) 1x30.5
Maximum Modal Uniformity (dB) 1x40.6
Maximum Modal Uniformity (dB) 1x60.6
Maximum Modal Uniformity (dB) 1x80.8
Maximum Modal Uniformity (dB) 1x121.2
Maximum Modal Uniformity (dB) 1x161.5
Maximum Modal Uniformity (dB) 1x242.5
Minimum Polarization Extinction Ratio (dB) 1xN20
Package Dimensions L×W×H(mm) 1x240×4×4
Package Dimensions L×W×H(mm) 1x350×7×4
Package Dimensions L×W×H(mm) 1x460×12×4
Package Dimensions L×W×H(mm) 1x660×7×4
Package Dimensions L×W×H(mm) 1x850×7×4
Package Dimensions L×W×H(mm) 1x1280×20×6
Package Dimensions L×W×H(mm) 1x16100×40×10
Package Dimensions L×W×H(mm) 1x24120×80×18
Package Dimensions L×W×H(mm) 1x32140×115×18
Configuration Type 2xN2x2, 2x4, 2x8, 2x16, 2x32
Maximum Insertion Loss (dB) 2x24.2
Maximum Insertion Loss (dB) 2x47.8
Maximum Insertion Loss (dB) 2x811.2
Maximum Insertion Loss (dB) 2x1614.2
Maximum Insertion Loss (dB) 2x3217.3
Maximum Modal Uniformity (dB) 2x20.6
Maximum Modal Uniformity (dB) 2x41.2
Maximum Modal Uniformity (dB) 2x81.4
Maximum Modal Uniformity (dB) 2x161.8
Maximum Modal Uniformity (dB) 2x322.0
Minimum Polarization Extinction Ratio (dB) 2xN20
Package Dimensions L×W×H(mm) 2x240×4×4
Package Dimensions L×W×H(mm) 2x450×7×4
Package Dimensions L×W×H(mm) 2x860×7×4
Package Dimensions L×W×H(mm) 2x1660×12×4
Package Dimensions L×W×H(mm) 2x3280×20×6

Applications

1. Optical sensing 2. Quantum communication 3. Fiber optic networks

Key Features

1. Insensitive to wavelength changes 2. Excellent uniformity in splitting 3. Low insertion loss 4. Compact size and lightweight 5. Supports up to 64 channels for splitting
