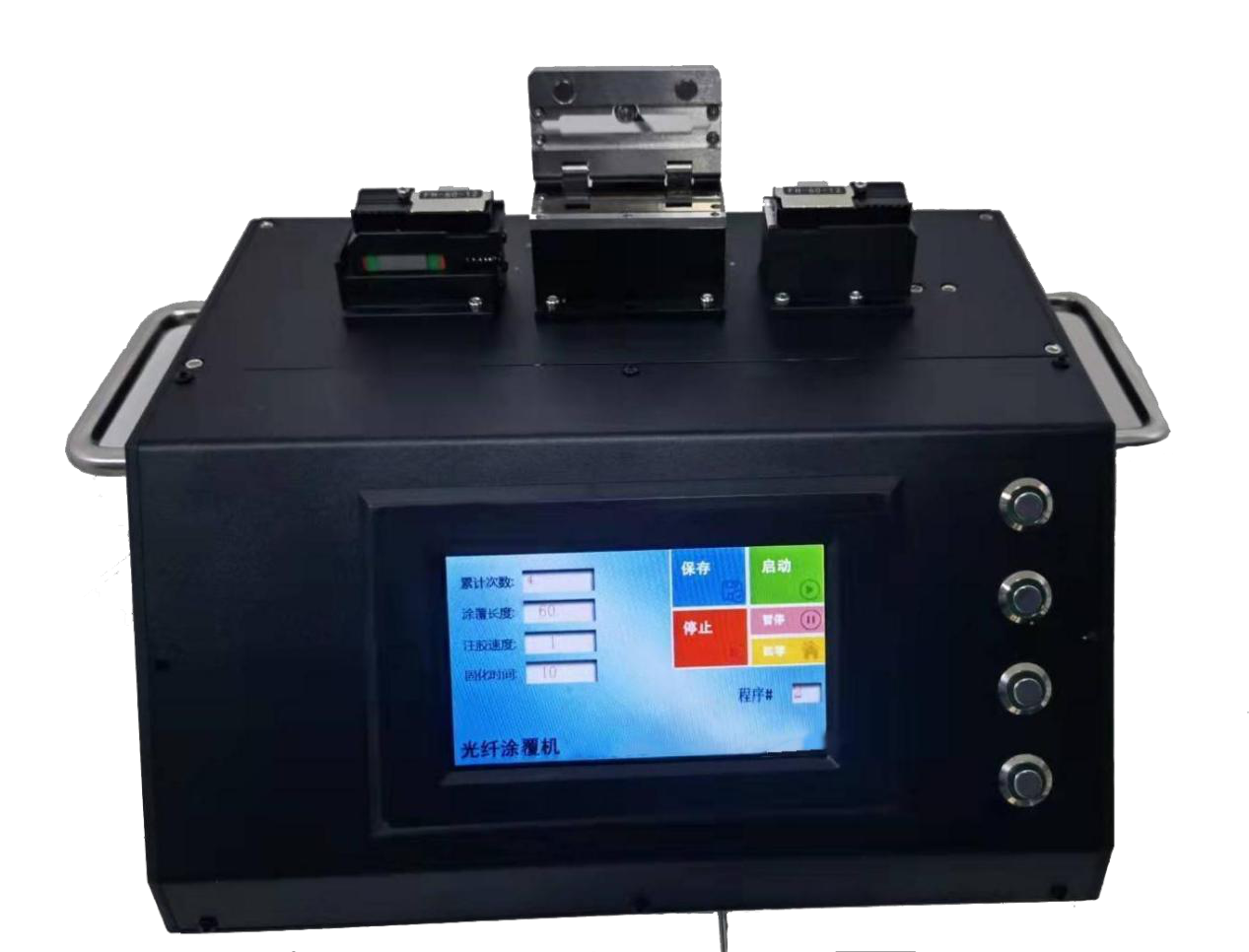

MY-101 Fiber Coating Machine
The MY-101 Fiber Coating Machine is designed for fiber protection after splicing. Traditional protection methods, such as heat-shrink tubing, are cost-effective but bulky and inconvenient for small-sized fibers. This machine ensures the fiber's integrity and flexibility, allowing for efficient production and organization of fibers. It also enhances the tensile strength of the coated fiber, preventing damage.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Applicable Fiber Type | Single core (180, 280, 450, 580, 1000, etc.), Ribbon (2~12 cores) |
| Curing Method | UV curing (wavelength 365, 400nm) |
| Coating Type | Coating length |
| Coating Type | injection molding length |
| Coating Type | simultaneous setting of curing time |
| Coating Length | Maximum 50mm (customizable for longer lengths) |
| Dimensions (L×W×H) | 296×200×214mm |
Applications
Key Features
Datasheet
