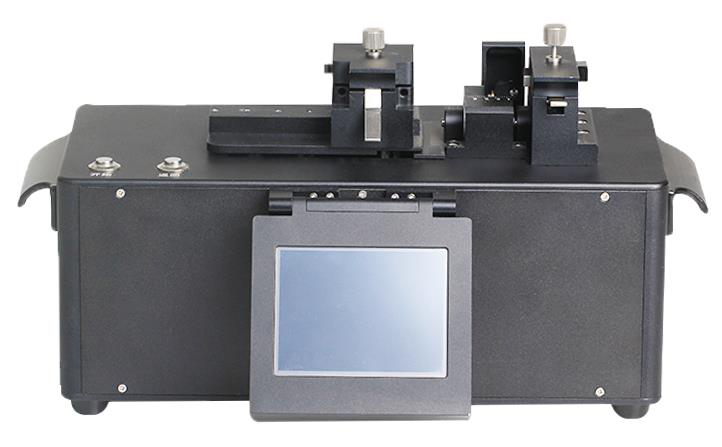

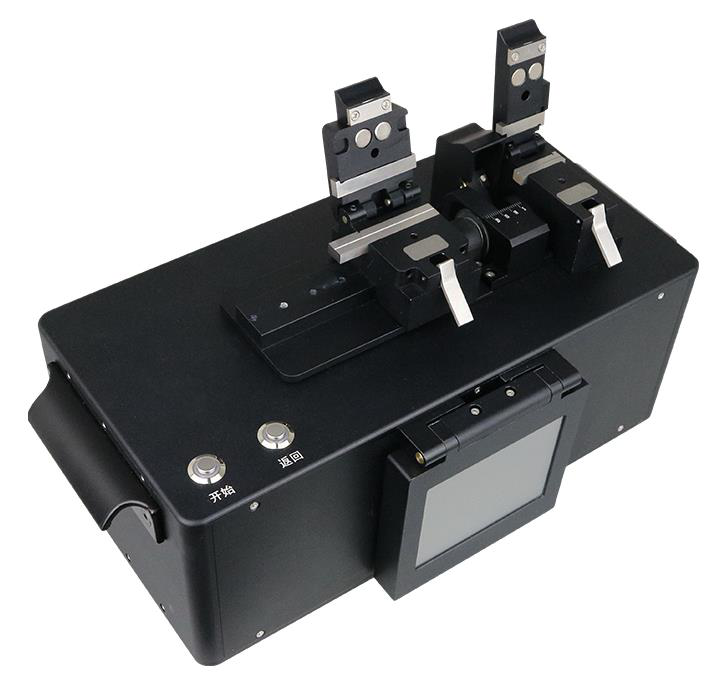

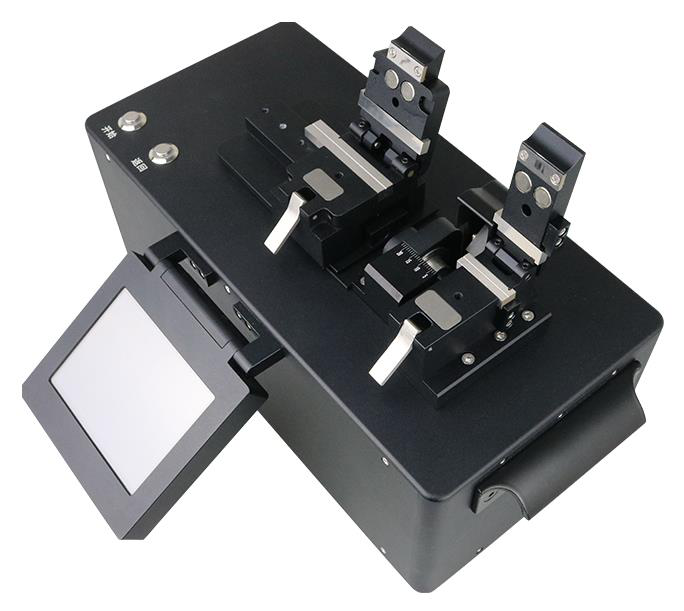

Large Diameter Optical Fiber Cutter

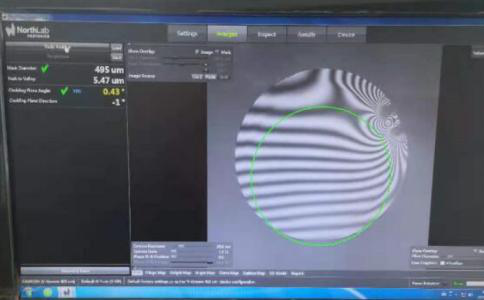

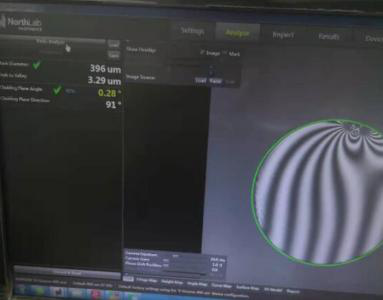

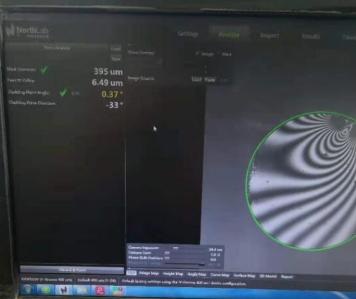

This large diameter optical fiber cutter is designed for high-precision cutting of optical fibers with cladding diameters ranging from 80 μm to 600 μm. It is easy to use and versatile for manufacturing and research environments. The cutter employs a unique cutting method to achieve precise perpendicular cuts, ensuring high-quality end faces suitable for splicing.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Applicable Fiber | Quartz optical fiber |
| Applicable Cladding Diameter (μm) | 80–600 |
| Applicable Coating Diameter (μm) | 250–1000 |
| Fiber Fixation Method | Pressure clamping strips |
| Fiber Fixation Method | magnetic clamping |
| Fiber Cutting Length (μm) | 5–25 |
| Blade Lifespan | 5000 cuts × 10 points (for cladding diameter of 125 μm) |
| Display Screen | 3.5 inches |
| Product Dimensions (W×D×H)(mm) | 305×150×153 |
| Power Supply | AC110–240V~50/60Hz, DC12V, 2A |
| Operating Environment Conditions | Relative humidity 0–95%, -40–+80°C (non-condensing) |
