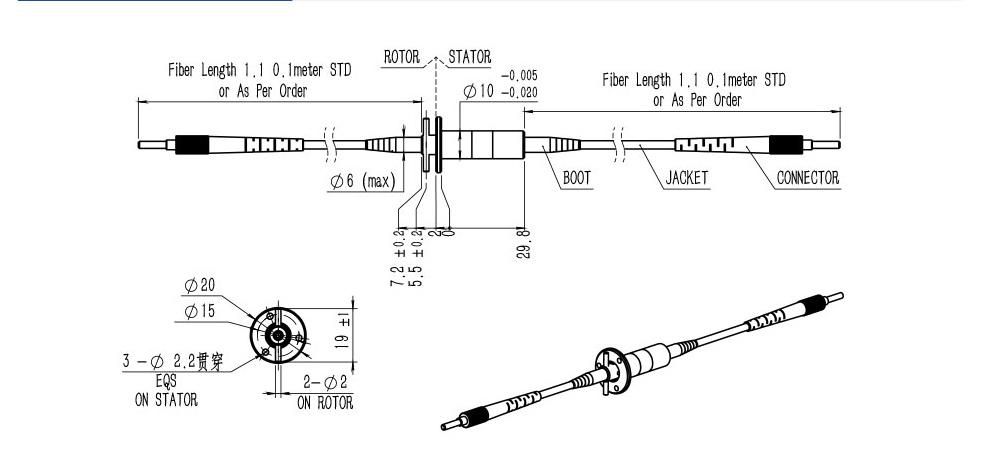

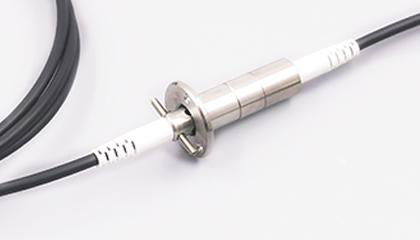

High-Speed Fiber Optic Rotary Joint
The high-speed fiber optic rotary joint is a device designed for high-speed data transmission in rotating connections. It is widely used in scenarios requiring continuous rotation and high-speed data transmission. This product adopts advanced optical design and precision manufacturing processes to ensure signal transmission performance during rotation, making it suitable for various harsh working environments.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Operating Wavelength | 1310/1550nm (SM), 850/1310nm (MM) |
| Insertion Loss at Room Temperature (dB) | ≤1.5dB |
| Insertion Loss Stability (dB) | ≤0.7dB |
| Return Loss (dB) | ≥40 (SM) |
| Power Handling (dBm) | ≤23dBm |
| Tensile Strength (N) | ≤12N |
| Rotational Speed (rpm) | 2000 (higher speeds customizable)rpm |
| Rotational Lifetime | 5 billion revolutions |
| Storage Temperature (°C) | -40~+85°C |
| Vibration and Shock Standard | GJB150 military standard |
