1×128 Optical Switch

1×128 Optical Switch

Supplier
Fibretop
Part Number
1×128 Optical Switch
Category
Fiber Optics
Origin
China

The 1×128 optical switch is a high-performance optical path switching device that supports dynamic path allocation between a single input and 128 output ports. It adopts MEMS (Micro-Electro-Mechanical Systems) and thermal or mechanical drive technology to achieve low insertion loss and high reliability signal switching. It is suitable for large-scale optical fiber networks, testing systems, and data centers.

Specification Snapshot
Crosstalk (dB)
≥80
Polarization Dependent Loss (dB)
≤0.10
Wavelength Dependent Loss (dB)
≤0.25
Maximum Optical Power (mW)
≤1000
Request a Quote Download Datasheet Chat
Save to Favorites Save to Favorites

Overview

The 1×128 optical switch is a high-performance optical path switching device that supports dynamic path allocation between a single input and 128 output ports. It adopts MEMS (Micro-Electro-Mechanical Systems) and thermal or mechanical drive technology to achieve low insertion loss and high reliability signal switching. It is suitable for large-scale optical fiber networks, testing systems, and data centers.

Specifications

ParameterValue
Operating Wavelength (nm)850&1310 or 1260~1650
Insertion Loss (dB)1.5 (typical), 1.8 (max)
Return Loss (dB)≥55 (single mode), ≥40 (multi-mode)
Crosstalk (dB)≥80
Polarization Dependent Loss (dB)≤0.10
Wavelength Dependent Loss (dB)≤0.25
Temperature Dependent Loss (dB)≤0.30
Repeatability (dB)≤±0.05
Lifetime (times)3×10⁷
Maximum Optical Power (mW)≤1000
Switching Time (ms)≤10 (adjacent port switching)
Operating Temperature (°C)-20~+70
Storage Temperature (°C)-40~+85
Operating Voltage/Current (V/A)+5/1.0

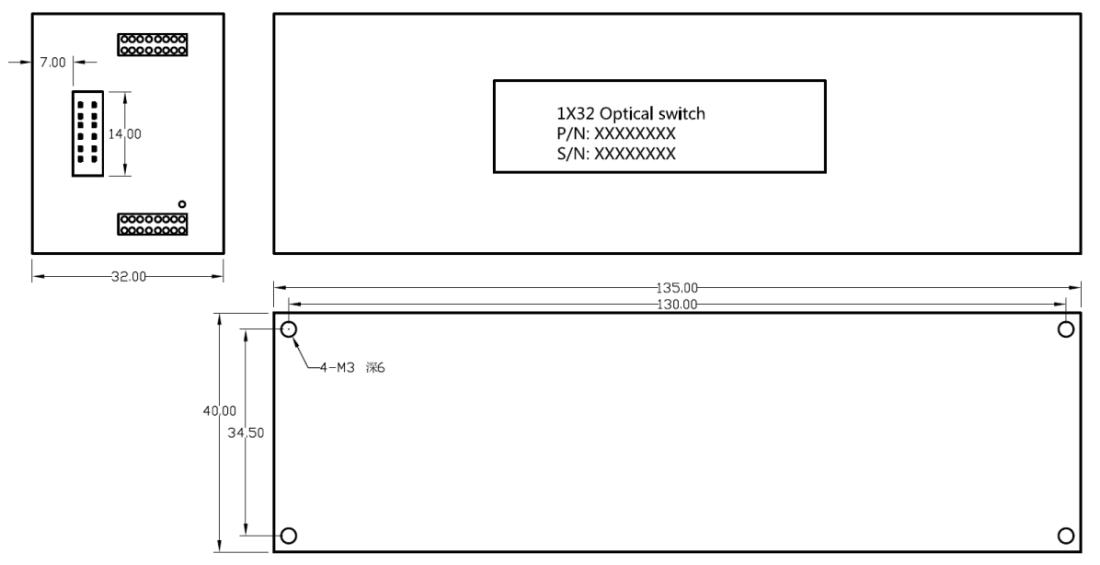

Package Dimensions (mm)135×80×32
Control MethodTTL+RS232 or TTL+RS485
Fiber Length (m)1.5
Connector TypeMultiple connector options available

Applications

1. Optical sensing multi-point dynamic monitoring systems 2. Testing systems 3. LAN multi-light source/probe automatic switching

Key Features

1. Extremely compact size 2. Customizable original interface 3. Multiple control methods (TTL+RS232, TTL+RS485, USB) 4. Low insertion loss, high return loss, high reliability
