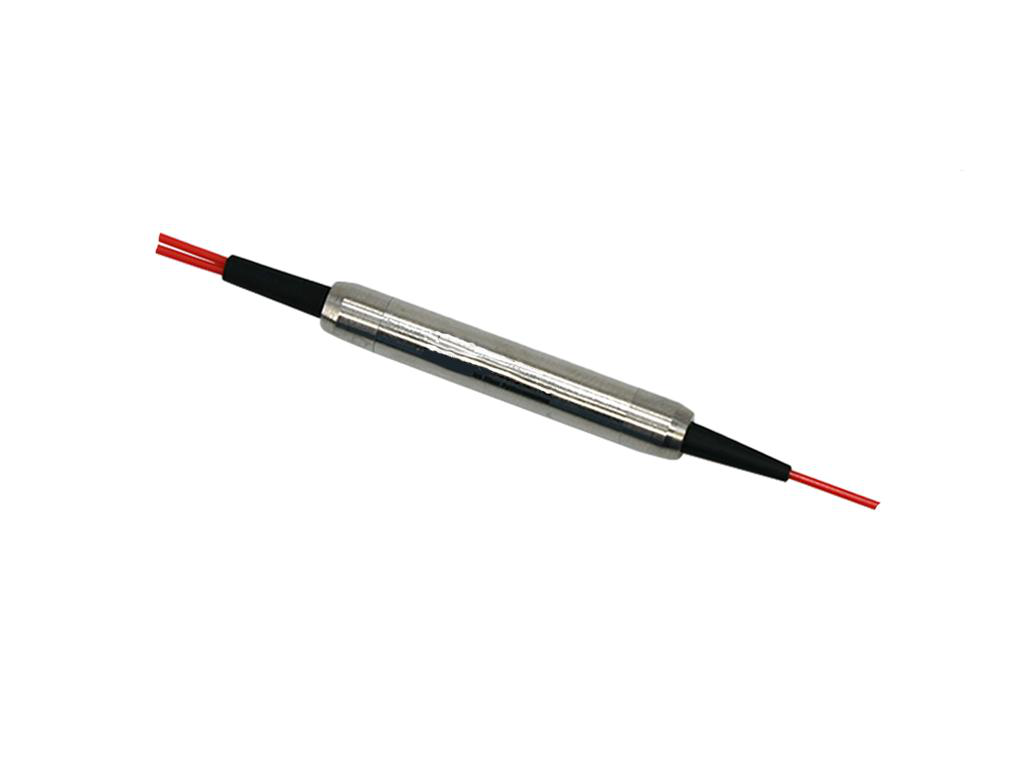

1×2(2×2) Dual Axis Polarization Maintaining Fiber Coupler

1×2(2×2) Dual Axis Polarization Maintaining Fiber Coupler

Supplier
Fibretop
Part Number
1×2(2×2) Dual Axis Polarization Maintaining Fiber Coupler
Category
Fiber Optic Couplers
Origin
China

The polarization maintaining fiber coupler is an optical device specifically designed for polarization maintaining fiber systems. It can maintain the input polarization state while achieving power splitting or combining. This product adopts a dual-axis structure and can achieve 1–55% splitting ratio. It is suitable for various wavelengths ranging from 1030–2050nm and is widely used in optical communication, laser systems, and optical amplification.

Specification Snapshot
Return Loss (dB)
50
Request a Quote Download Datasheet Chat
Save to Favorites Save to Favorites

Overview

The polarization maintaining fiber coupler is an optical device specifically designed for polarization maintaining fiber systems. It can maintain the input polarization state while achieving power splitting or combining. This product adopts a dual-axis structure and can achieve 1–55% splitting ratio. It is suitable for various wavelengths ranging from 1030–2050nm and is widely used in optical communication, laser systems, and optical amplification.

Specifications

ParameterValue
Operating Wavelength (nm) 780±10
Operating Wavelength (nm) 850±20
Operating Wavelength (nm) 980/1030/1064±20
Operating Wavelength (nm) 1310/1480/1550±40
Operating Wavelength (nm) 1950/2000/2050±20
Bandwidth (nm)±10 to ±40
Splitting Ratio01/99–50/50
Maximum Additional Loss (dB)0.81×1, 2.02×2
Minimum Extinction Ratio (dB)22@1×2, 20@2×2
Return Loss (dB)50
Power Handling (W)0.3–20
Working AxisDual Axis
Fiber TypePM Fiber
Fiber Length (m)1
Connector TypeFC/APC or others

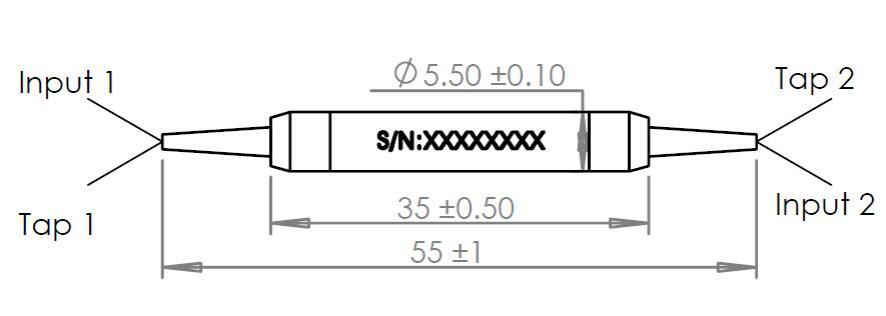

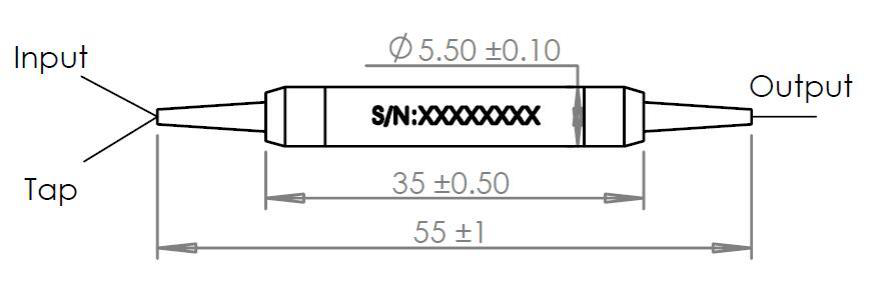

Package Dimensions (mm)φ5.5×L35
Operating Temperature (°C)-5 to +70
Storage Temperature (°C)-40 to +85

Applications

1. Optical communication 2. Laser systems 3. Optical amplification

Key Features

1. High extinction ratio 2. Multiple wavelength options 3. High stability and reliability

Datasheet

Product Datasheet
PDF
Download
