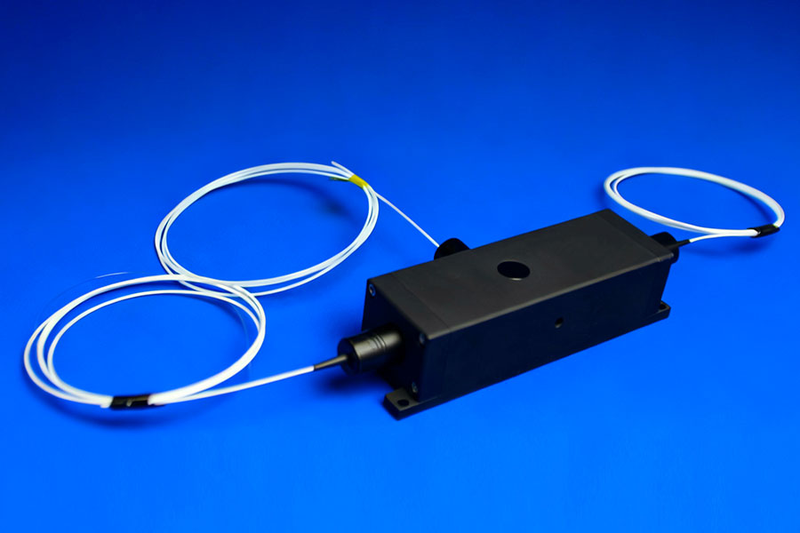

High Power Optical Fiber Circulator

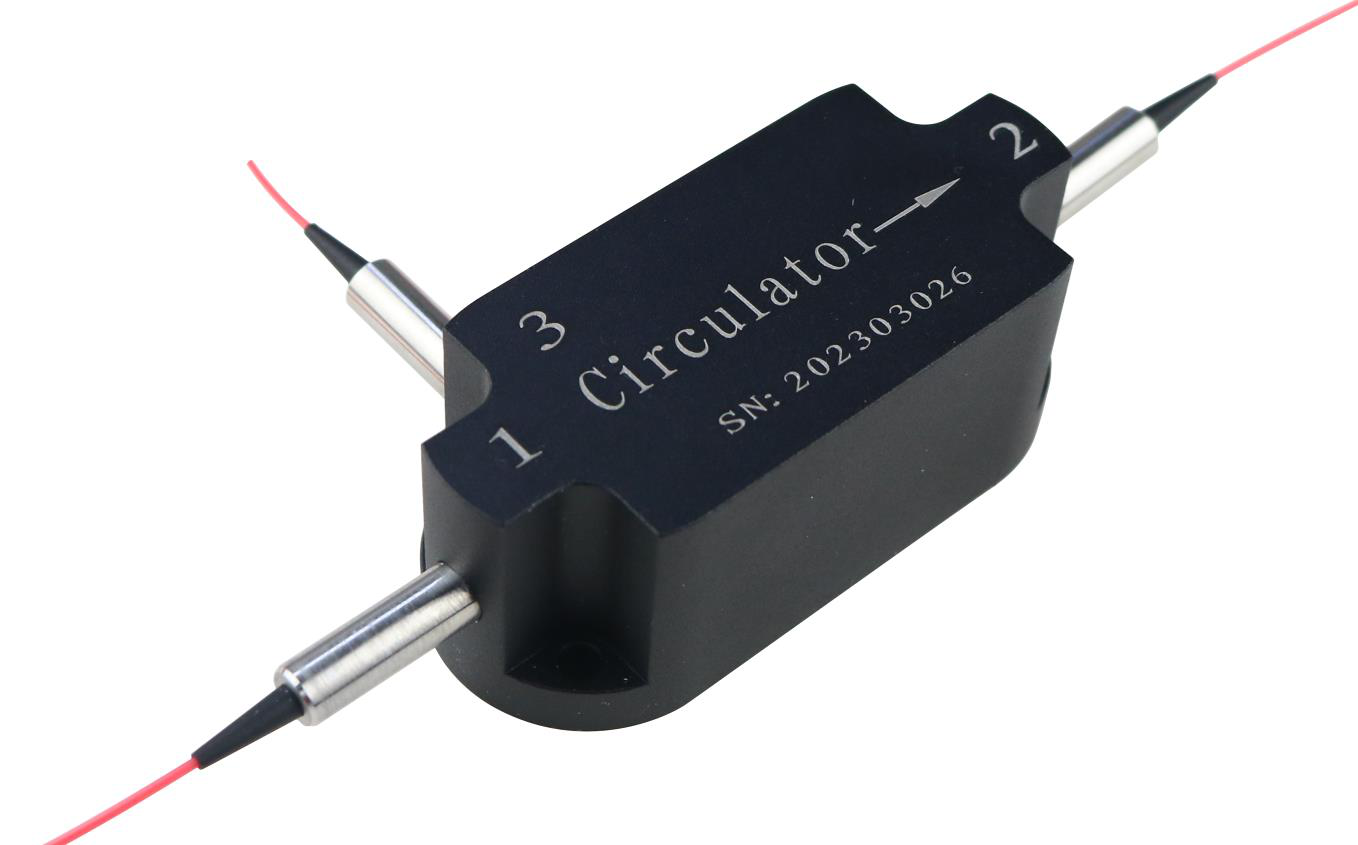

The three-port optical fiber circulator is a type of multi-port non-reciprocal optical device that enables unidirectional transmission of light. Signals entering port 1 are output from port 2, signals entering port 2 are output from port 3, and signals entering port 3 are output from port 1. The device features low insertion loss and high isolation, making it suitable for applications in fiber laser systems, optical measurement devices, and scientific research.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Center Wavelength (nm) | 780/808 |
| Bandwidth (nm) | ±10 |
| Ports and Working Mode | 3 ports, (Port 1→2, 2→3) |
| Insertion Loss (dB) | 1.0 (max value) |
| Insertion Loss (dB) at 23°C | 1.5 (max value at 23°C) |
| Peak Isolation (dB) | 25 (typical value) |
| Isolation (dB) at 23°C | 22 (min value at 23°C) |
| Polarization Dependent Loss (dB) | 0.15 (max value) |
| Crosstalk (dB) | 45 (min value) |
| Return Loss (dB) | 45 (min value) |
| Power Handling (W) | 0.3, 1, 2, 5, 10, 20 optional |
| Peak Power (kW) | <10 (8ns Pulse) |
| Damage Threshold | 5 |
| Fiber Type | 780-HP or H1780 |

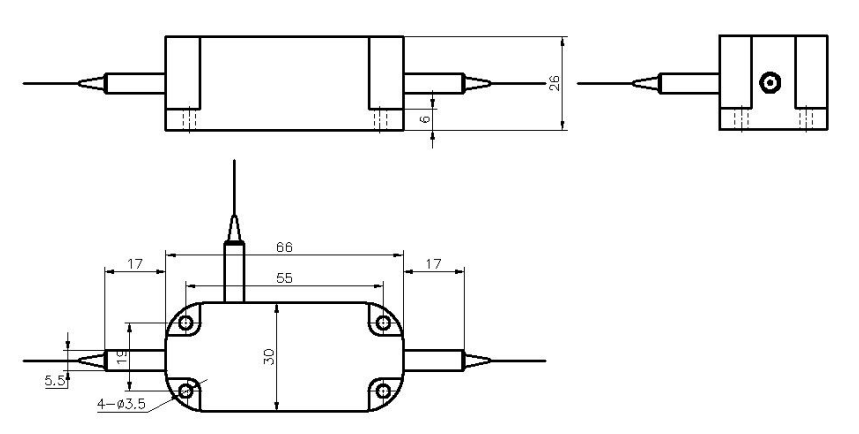

| Package Dimensions (mm) | 66×30×26 |
| Operating Temperature (°C) | 0~+60 |
| Storage Temperature (°C) | -10~+75 |
