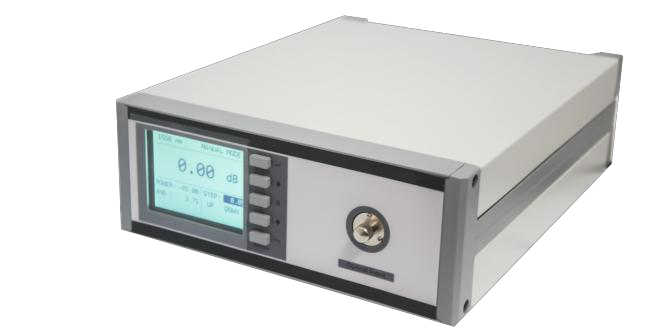

MY5505 Polarization Extinction Ratio Tester
The MY5505 Polarization Extinction Ratio Tester is designed for precise measurement of polarization extinction ratio (PER), light source polarization angle, and related parameters. It is a new-generation optical testing instrument developed by the company, suitable for testing polarization-maintaining optical devices, light source polarization, and fiber connection polarization extinction ratio. The upper computer software is powerful and user-friendly.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Wavelength Range 600~1100nm | 600~1100 |
| Wavelength Range 1200~1630nm | 1200~1630 |
| Input Power Range (dBm) | -55~+10 |
| PER Dynamic Range (dB) | 50 |
| Input Optical Power Range (dBm) +10~5dBm | 40 |
| Input Optical Power Range (dBm) +10~15dBm | 30 |
| Input Optical Power Range (dBm) +10~25dBm | 20 |
| PER Resolution (dB) | <10dB:0.001, ≥10dB:0.01 |
| PER Accuracy PER<2dB | ±0.1dB |
| PER Accuracy PER30dB | ±0.3dB |
| PER Accuracy PER>30dB | ±1.0dB |
| Polarization Angle Resolution (°) | 0.11 |
| Polarization Angle Accuracy (°) | ±0.45 |
| Measurement Speed (s) | 0.25 |
| Connector Type | FC/PC, SC/LC |
| Communication Interface | RS232 |
| AC Power Input | 220V, 50Hz |
| Warm-up Time (min) | 15 |
| Operating Temperature (°C) | +10~+40 |
| Storage Temperature (°C) | -15~+70 |
| Weight (kg) | 4 |
| Dimensions (mm) | 235×104×300 |
Applications
Key Features
Datasheet
