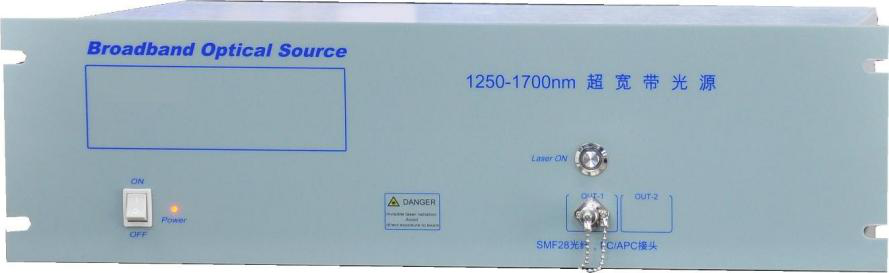

MY8003 Broadband SLED Light Source
The MY8003 broadband SLED light source is a high-performance broadband optical source that utilizes superluminescent diode (SLED) technology. It features a wide spectrum, high output power, and excellent stability, making it suitable for near-infrared light waves, optical coherence tomography (OCT), and spectral analysis. With low noise, high power, and long-term stability, it meets industrial and medical research requirements.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Continuous Output Power (P0) | 1~20mW (typical value 10) |

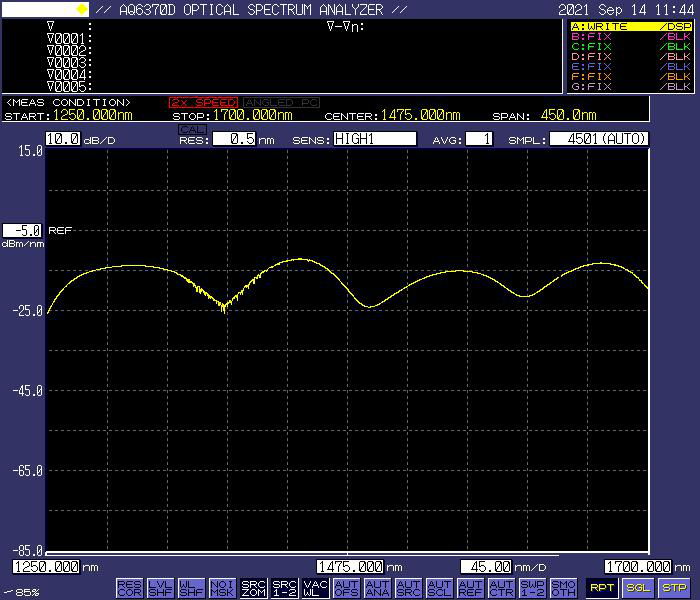

| Wavelength Range (Multi-Wavelength Combination) | 1250~1700nm (user-specified) |
| 8-Hour Output Power Stability (A P0 8h) | ≤±0.05 (typical value ±0.05) |
| Overall Polarization-Dependent ASE Suppression Ratio DOP (ASE Mode) | ≤0.2 |
| Spectral Stability (RES: 1nm, 2H, Fiber to Fiber) | ≤±0.03 (typical value), ≤±0.05 (extreme value) |
| Spectral Flatness (Within Visible Range) | 1350~1410nm, water level ≤15 |
| Operating Temperature TW | +15~+35°C |
Applications
Key Features
Datasheet
