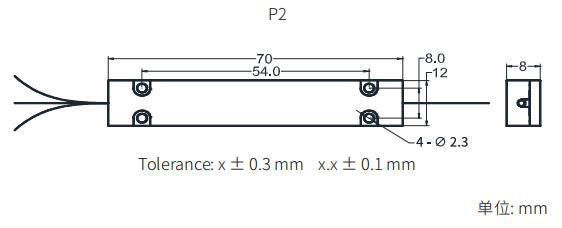

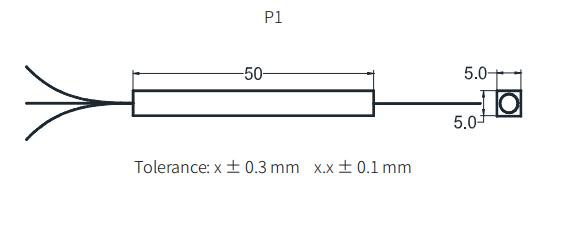

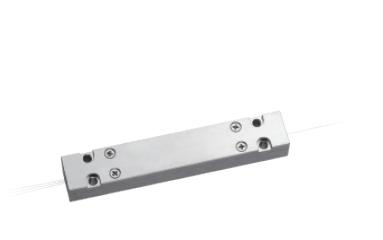

PM (2+1) × 1 Polarization Maintaining Multimode Pump Combiner

Wavelength band: C-band Wavelength band: L-band Output power [C-band]: ≤20 mW

JW8006 Tunable Laser Light Source is a high-precision test light source that adopts imported high-performance tunable laser components. It supports the output of 89 wavelengths in the C-band (1528.77‒1563.86nm) and 64 wavelengths in the L-band (1554.94‒1607.47 nm), with a wavelength spacing of 50 GHz ITU standard. The device integrates laser and control components in a modular benchtop package, through C-band (1528.77‒1563.86nm) 89 wavelengths and L-band (1554.94‒1607.47 nm) 64 wavelengths output, with a wavelength spacing of 50 GHz ITU standard. The device integrates laser and control components in a modular benchtop package, and through the RS232 interface realizes flexible setting of parameters such as wavelength and power. It features 10mW high output power, 1MHz narrow linewidth, high side mode suppression ratio and excellent wavelength stability, and is suitable for application fields such as high-speed optical communication, wavelength division multiplexing systems and precision optical component testing.

Package: Nano Linewidth: 100kHz/150kHz Launched Power: 10‑16dBm

Grating Features: High quality and high reliability; High control precision for parameters such as wavelength, bandwidth and reflectivity; Wide wavelength selection range, optional wide or narrow bandwidth; High side-mode suppression ratio and low loss; Capable of fabricating gratings for high-power laser cavity mirrors; Temperature control devices can be provided to ensure precise wavelength alignment and tuning; Customizable according to user requirements;

Size: φ31.5 mm x178mm Input/Output wavelength: Input 532 nm,Output585nm Conversion Efficiency: 50-60%

Size: φ31.5 mm x178mm Input/Output wavelength: Input 532 nm,Output650nm Conversion Efficiency: 35-50%
