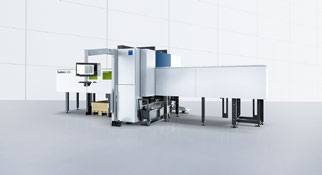

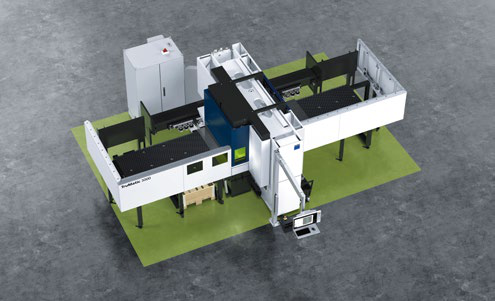

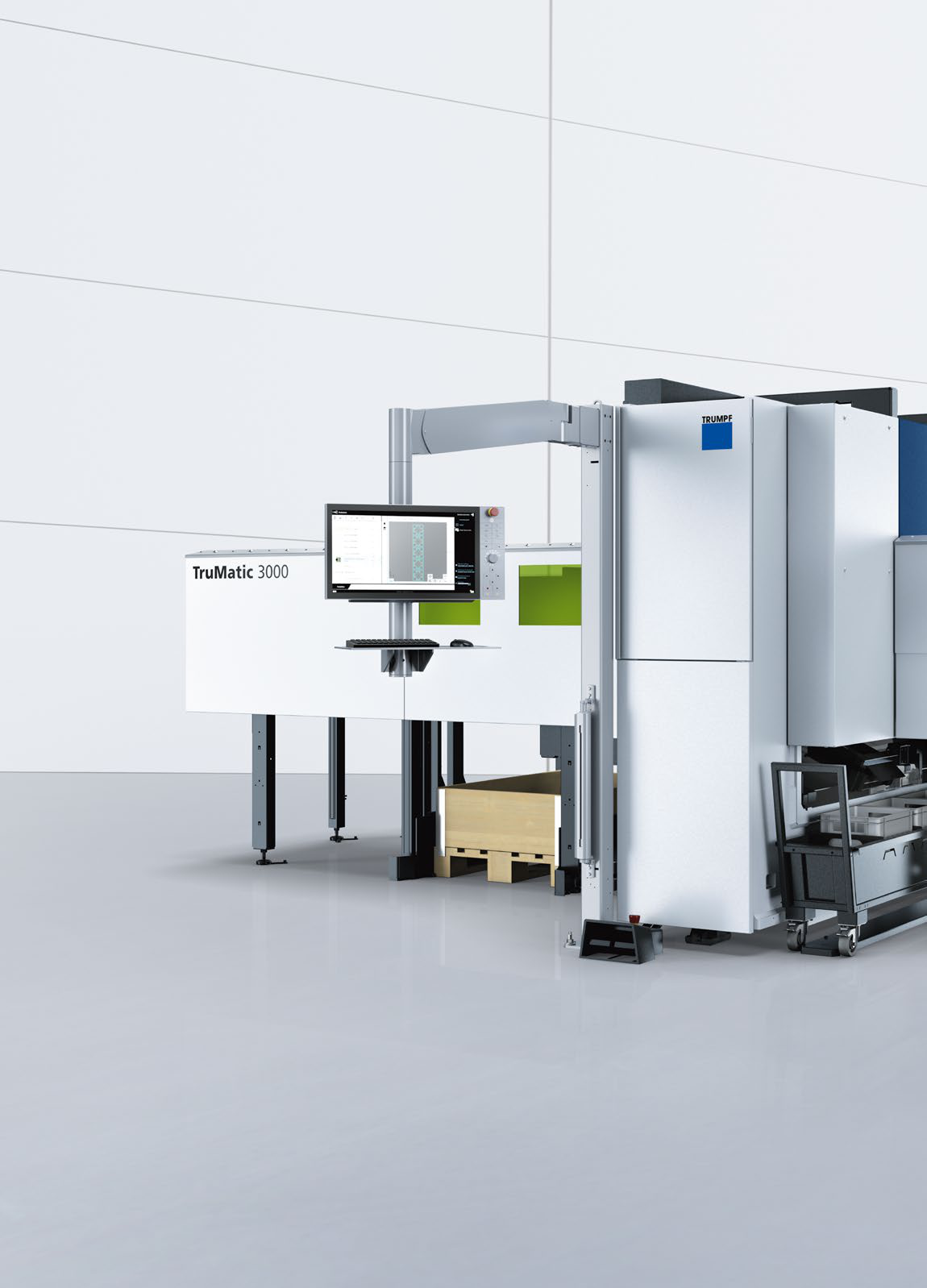

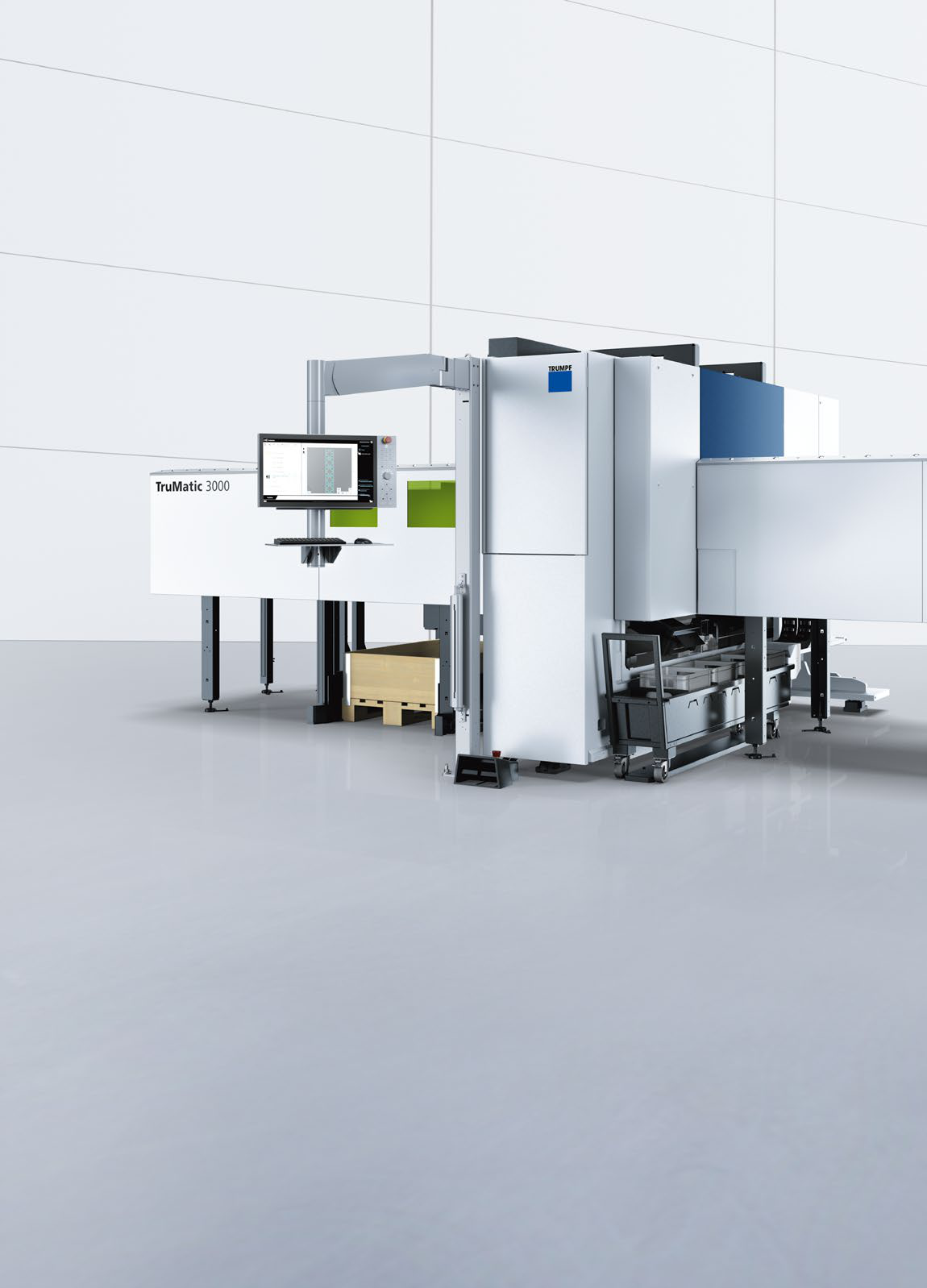

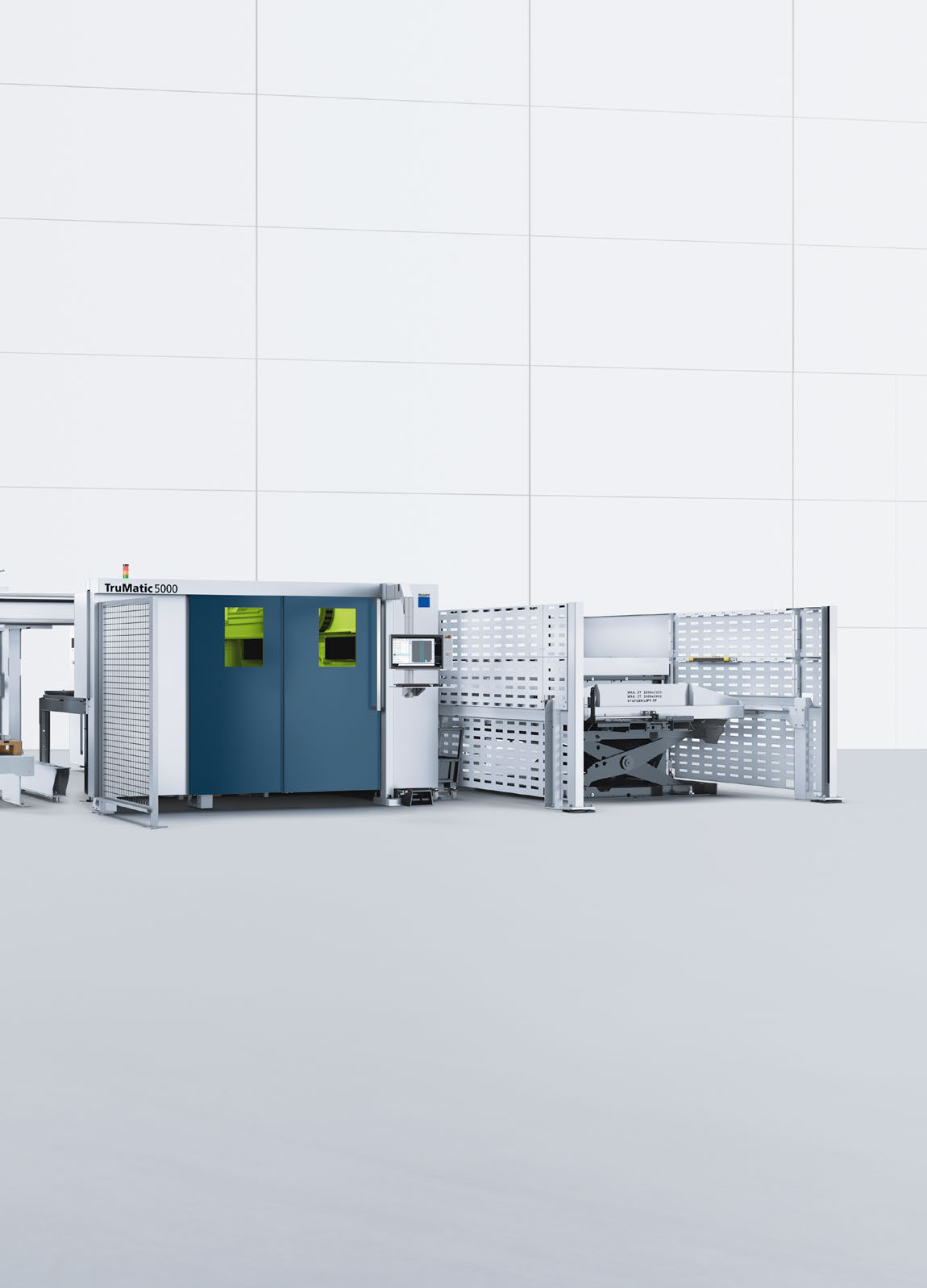

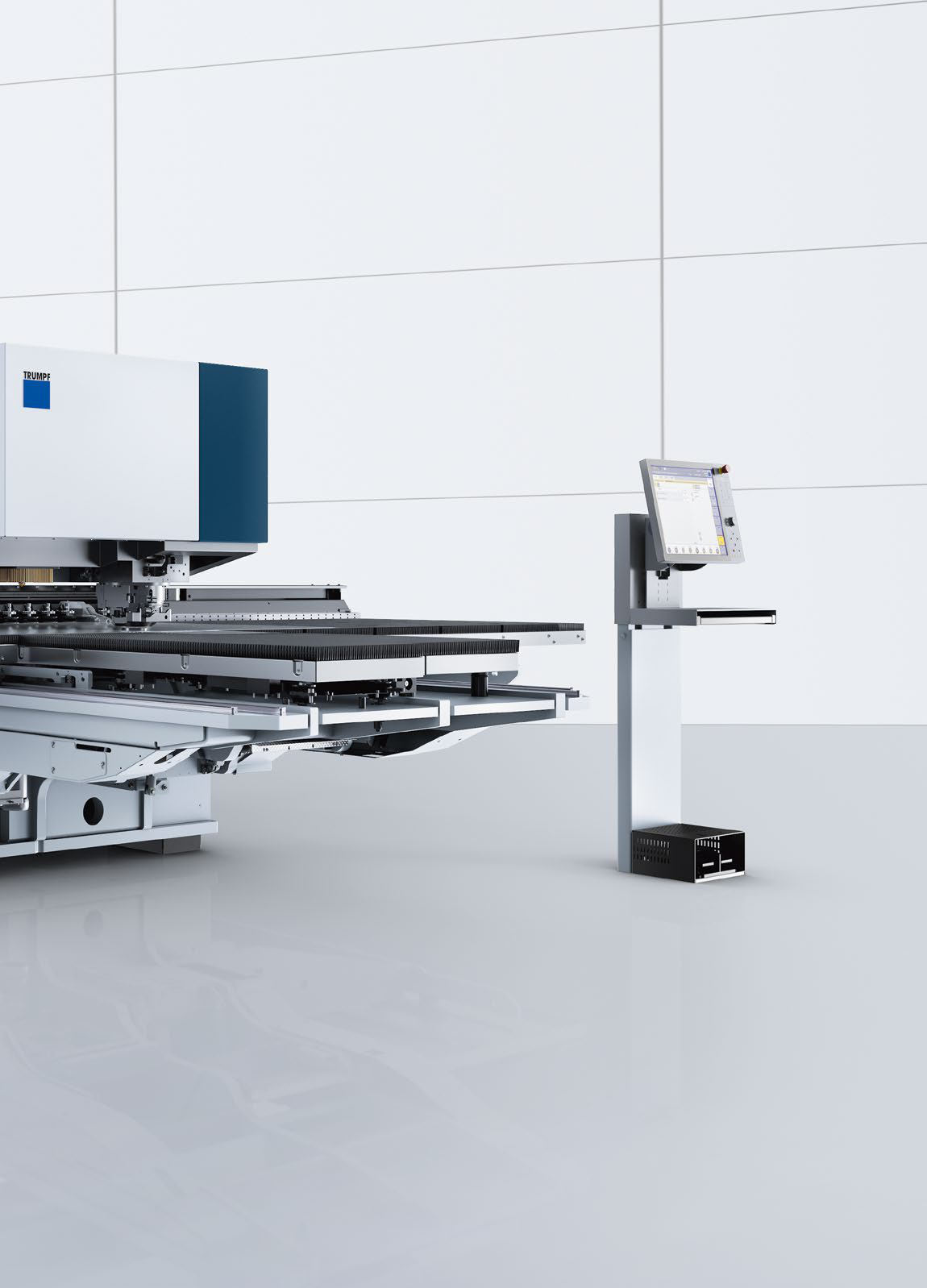

TruMatic 3000
Complete production on a single machine: punching, laser cutting, forming, and tapping – with high throughput, efficiency, and ease of use.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Punching mode (X×Y) Medium format | 2500×1250mm |
| Punching mode (X×Y) Large format | 3000×1550mm |
| Laser operation (X×Y) Medium format | 2500×1250mm |
| Laser operation (X×Y) Large format | 3000×1550mm |
| Combined processing (X×Y) Medium format | 2535×1250mm |
| Combined Processing (X×Y) Large Format | 3050×1550mm |
| Max. sheet thickness | 6.4mm |
| Max. workpiece weight Medium format | 150kg |
| Max. workpiece weight Large format | 230kg |
| Effective punching force Medium format | 165kN |
| Effective punching force Large format | 180kN |
| Linear Magazine: Number of Tools Medium Format | 17 |
| Linear Magazine: Number of Tools Large Format | 21 |
| Linear Magazine: Number of Clamps Medium Format | 3 |
| Linear Magazine: Number of Clamps Large Format | 3 |
| Tool change time | 2.4s |
| Bidirectional Positioning Error | ±0.03mm |
| C-Axis Punching Speed Medium Format | 180U/min |
| C-Axis Punching Speed Large Format | 350U/min |
| Max. Punching Stroke Rate (1mm Increment) Medium Format | 600/min |
| Max. Punching Stroke Rate (1mm Increment) Large Format | 800/min |
| Max. Punching Stroke Rate (25mm Increment) Medium Format | 310/min |
| Max. Punching Stroke Rate (25mm Increment) Large Format | 400/min |
| Max. Marking Stroke Rate | 1000/min |
| TruFiber 3001 laser data: Max. laser power | 3000W |
| TruFiber 3001 Laser Data: Max. Mild Steel Thickness | 6mm |
| TruFiber 3001 Laser Data: Max. Stainless Steel Thickness | 6mm |
| TruFiber 3001 Laser Data: Max. Aluminum Thickness | 5mm |
| TruFiber 3001 Laser Data: Max. Copper Thickness | 6mm |
| TruFiber 3001 Laser Data: Max. Brass Thickness | 6mm |

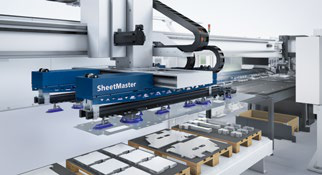

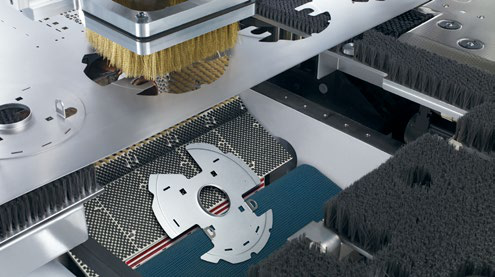

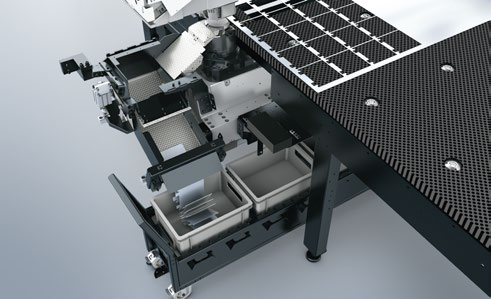

| Programmable Part Removal: Punching Part Size | 180×180mm |
| Programmable Part Removal: Laser Part Size | 400×1250mm |
