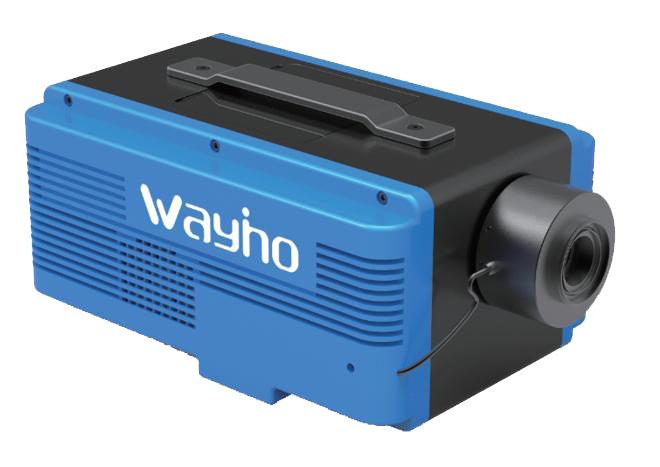

VIX-N320
VIX-N320 is an advanced push-broom hyperspectral camera designed for visible and near-infrared imaging. It features high spectral resolution and rapid imaging capabilities, making it ideal for scientific research and industrial applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Spectral Range | 400-1000nm |
| Sampling Interval | 0.5nm |
| Spectral Resolution | 2.5nm |
| Optical Lens | Fixed focal length: 25mm (supports auto-focus) |
| Numerical Aperture | F/2.0 |
| Detection Size (Width×Height) | 25μm×10μm |
| Spectral Channels | 1200 |
| Spatial Channels | 1920 |
| Spatial Resolution | 1920×1920 |
| Data Depth | 12bits |
| Full Spectrum Imaging Time | Automatically matched to exposure time, minimum <6s |
| Shutter Type | Global shutter |
| Device Interface | GigE, Thunderbolt interface (external touch display supported), 2×USB3.0 Type A, 1×USB3.0 Type C, WiFi |
| Storage Temperature | -20°C-50°C |
| Dimensions (Width×Height×Depth, excluding lens) | 159mm×135mm×270mm |
| AF Function | Equipped with auto-focus adjustment, no manual operation required |
| Power Consumption | <210W |
| External Power Supply | DC 24V 2A |
| Auxiliary Processing | High-definition camera and hyperspectral camera integrated into one device, enabling fast data acquisition, precise positioning, and auto-focus |
| Remote Control | Supports remote control via laptop/flat-panel devices, enabling real-time data monitoring |
| Built-in Battery | 72Wh |
| Spectral Imaging | Push-broom imaging, internal scanning |
