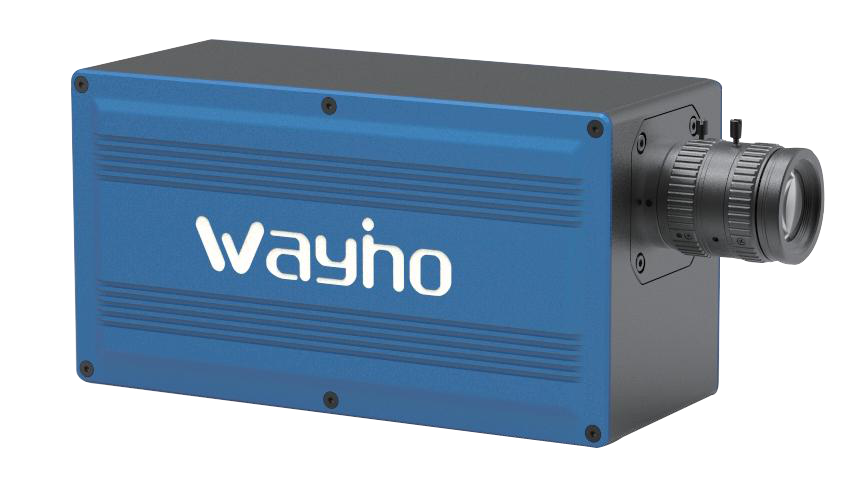

VIX-N230
The VIX-N230 push-broom visible and near-infrared hyperspectral camera is independently developed and manufactured by Shenzhen Wayho Technology Co., Ltd. It is a new generation of high spectral resolution and high image resolution hyperspectral camera, suitable for drone-mounted, portable, and indoor application scenarios.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Spectral Range | 400-1000nm |
| Sampling Interval | 0.8mm |
| Spectral Resolution (FWHM) | 2.5nm |
| Optical Lens | Fixed focal lengths: 50mm / 35mm / 16mm |
| Numerical Aperture | F/2.0 |
| Detection Size (Width×Height) | 25μm×10mm |
| Spectral Channels | 720 |
| Spatial Channels | 1200 |
| Data Depth | 12bits |
| Max Frame Rate | 342fps@full |
| Shutter Type | Global shutter |
| Lens Interface | Standard C mount |
| Device Interface | 10Gige |
| Storage Temperature | -20°C-50°C |
| Dimensions (Width×Height×Depth, excluding lens) | 90mm×110mm×211.5mm |
| Weight (excluding lens) | 2kg |
| Power Consumption | <12W |
| External Power Supply | DC 24V 2A |
