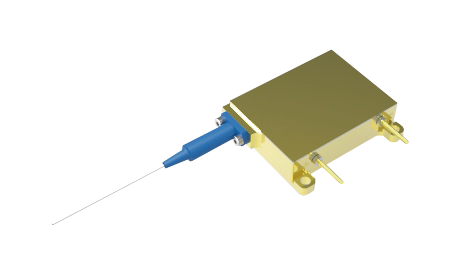

EB-FCP-300-135-0915-10
High-power fiber-coupled laser module designed for industrial applications, offering excellent reliability and performance.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Center Wavelength | 915nm |
| Wavelength Tolerance | ±10nm |
| Output Power | 300W |
| Spectral Width (FWHM) | 6nm |
| Numerical aperture | 0.175 |
| Fiber Core | 135μm |
| Fiber Connector | Pigtail |
| Fiber Length | 2m |
| Power Conversion Efficiency | 55% |
| Threshold Current | 1.2A |
| Operating Current | 18A |
| Operating Voltage | 29V |
| Operating Temperature | 25°C |
| Storage Temperature | -35~75°C |
| Wavelength Temperature Coefficient | 0.33nm/°C |
| Anti Reflection Wavelength Range | 1030~1200nm |
| Reflection Efficiency | 30dB |
| Soldering Temperature | 260°C(10sec) |
Applications
Key Features
Datasheet
