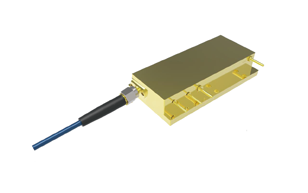

EB-FCP-050-400-0808-03
High-power fiber-coupled laser module with 50W output power and 808nm wavelength, designed for solid-state laser pumping applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Center Wavelength@lop | 808nm |
| Wavelength Tolerance | ±3nm |
| Output Power | 50W |
| Spectral Width (FWHM) | 1.5nm |
| Numerical aperture | 0.22 |
| Fiber Core | 400μm |
| Fiber Connector | SMA905 |
| Fiber Length | 1.2m |
| Power Conversion Efficiency | 45% |
| Threshold Current | 2.1A |
| Operating Current | 10A |
| Operating Voltage | 12.1V |
| Operating Temperature | 0-50°C |
| Storage Temperature | -40-80°C |
| Wavelength Temperature Coefficient | 0.28nm/°C |
| Anti Reflection Wavelength Range | 1030-1200nm |
| Reflection Efficiency | >30dB |
| Soldering Temperature | 260°C(10sec) |
