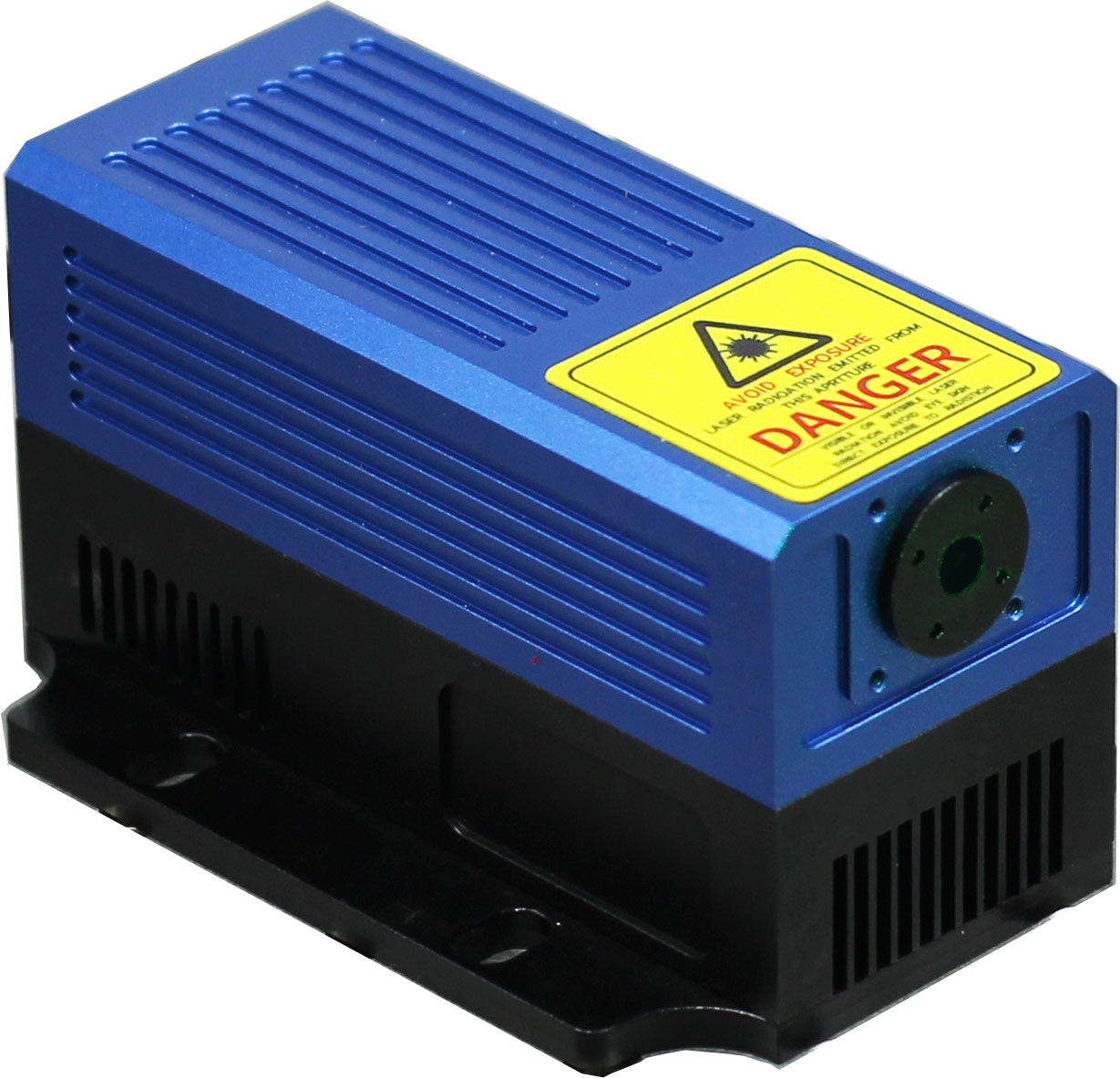

793nm CW Laser
This laser features high stability, long lifetime, and cost efficiency, making it ideal for scientific research, optical instruments, spectroscopy, communication, and frequency analysis.
Save to Favorites
Overview
Specifications

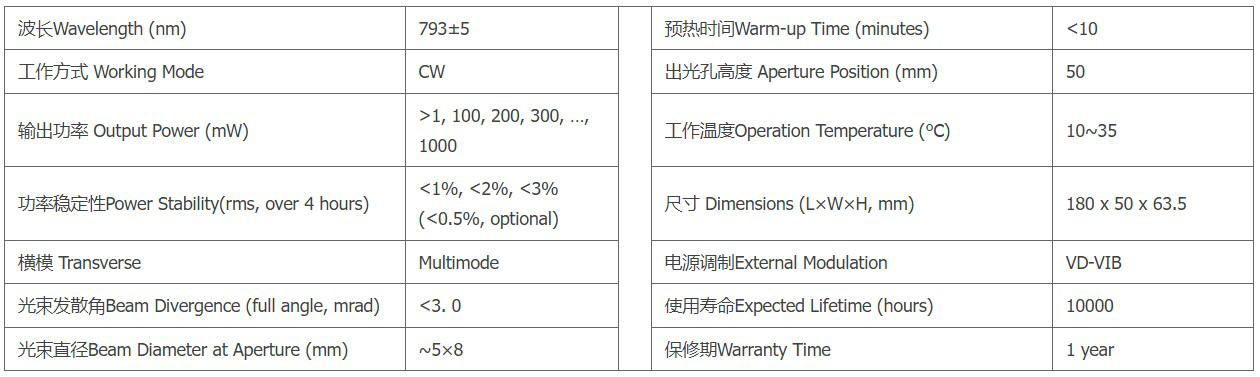

| Parameter | Value |
|---|---|
| Wavelength (nm) | 793±5 |
| Working Mode | CW |
| Output Power (mW) | ＞1, 100, 200, 300, 1000 |
| Power Stability (mW; over 4 hours) | ＜1%, ＜2%, ＜3% (＜0.5%, optional) |
| Transverse Mode | Multimode |
| Beam Divergence (full angle, mrad) | ＜3.0 |
| Beam Diameter at Aperture (mm) | ＜5×5 |
| Warm-up Time (minutes) | ＜10 |
| Aperture Position (mm) | 50 |
| Operation Temperature (°C) | 10~35 |

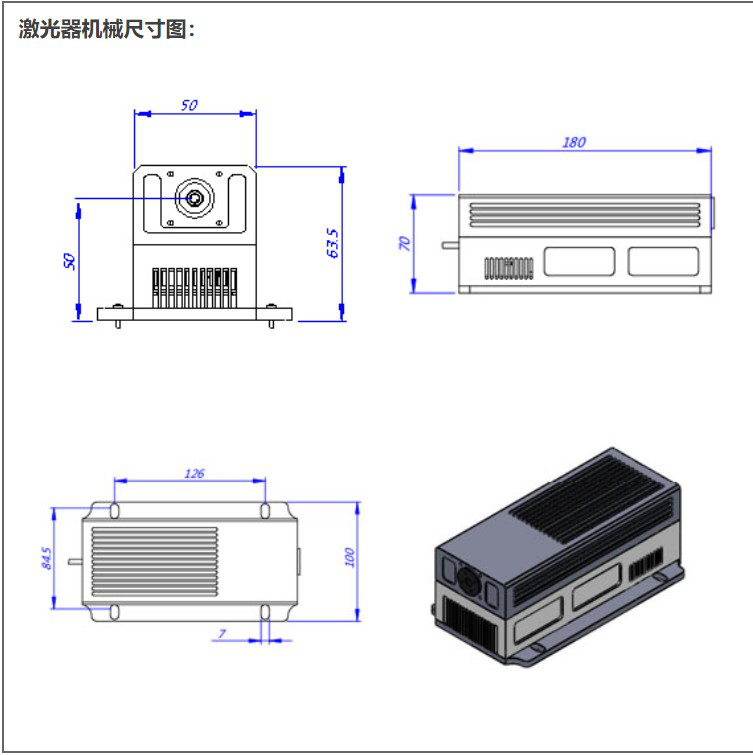

| Dimensions (L×W×H, mm) | 180×50×63.5 |

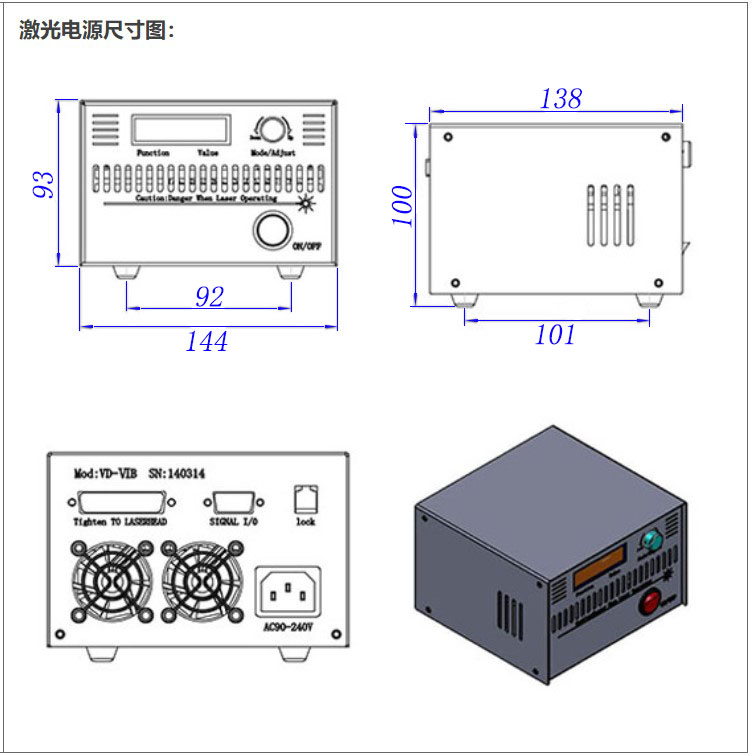

| External Modulation | VD-VIB |
| Expected Lifetime (hours) | 10000 |
| Warranty Time | 1 year |
