VD-IQ Integrated Driver Model

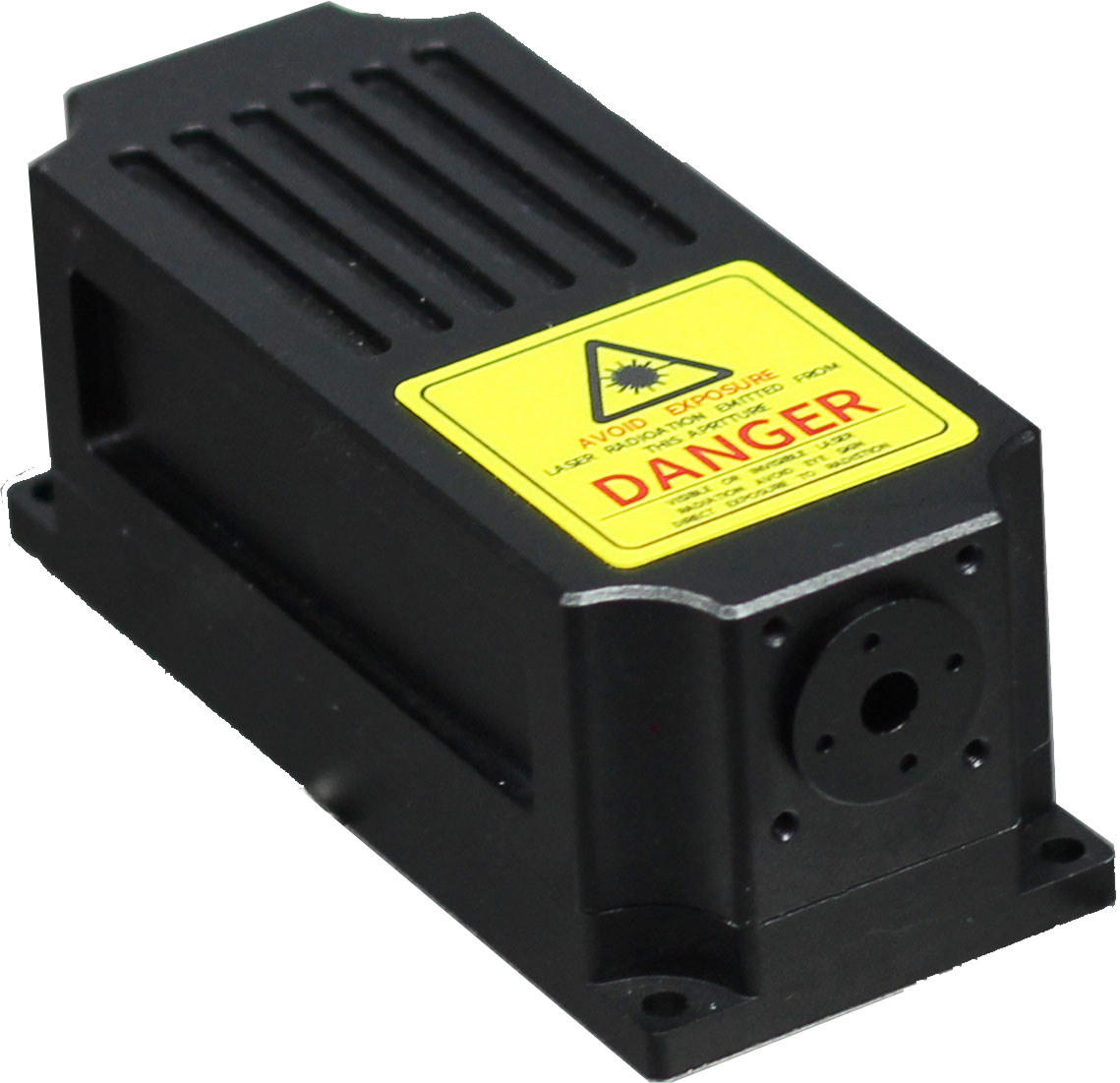

Compact and efficient laser module designed for various optical applications.
Save to Favorites
Overview
Specifications

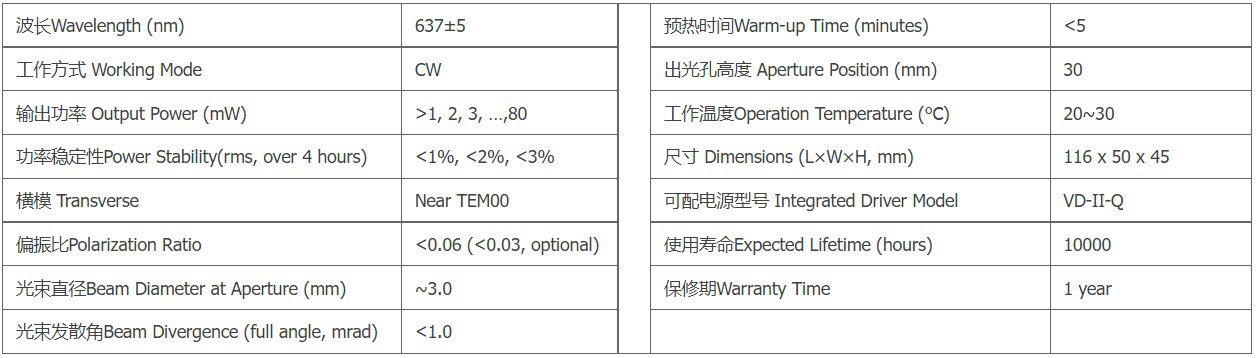

| Parameter | Value |
|---|---|
| Wavelength (nm) | 637±5 |
| Working Mode | CW |
| Output Power (mW) | ＞1, 2, 3,...80 |
| Power Stability (mss, over 4 hours) | ＜1%, ＜2%, ＜3% |
| Transverse | Near TEM00 |
| Polarization ratio | ＜0.06 (＜0.03, optional) |
| Beam Diameter at Aperture (mm) | ≈3.0 |
| Beam Divergence (full angle, mrad) | ＜1.0 |
| Warm-up Time (minutes) | ＜5 |
| Aperture Position (mm) | 30 |
| Operation Temperature (°C) | 20~30 |

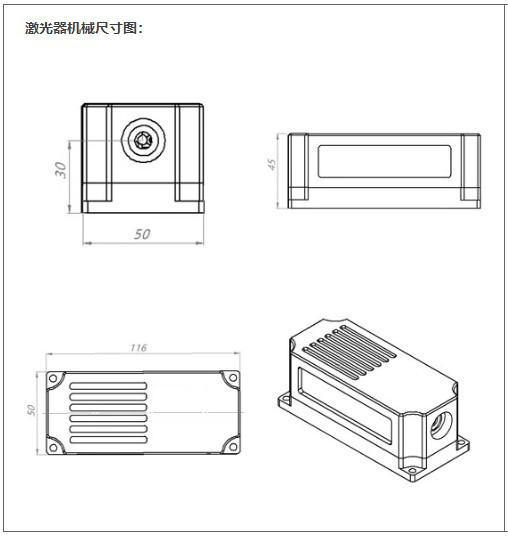

| Dimensions (L×W×H, mm) | 116×50×45 |

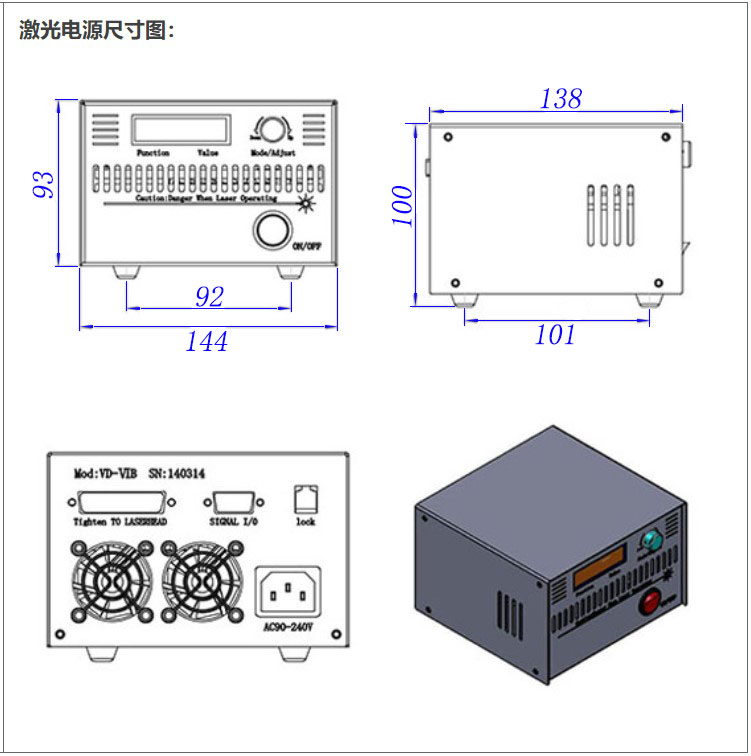

| Integrated Driver Model | VD-IQ |
| Expected Lifetime (hours) | 10000 |
| Warranty Time | 1 year |
