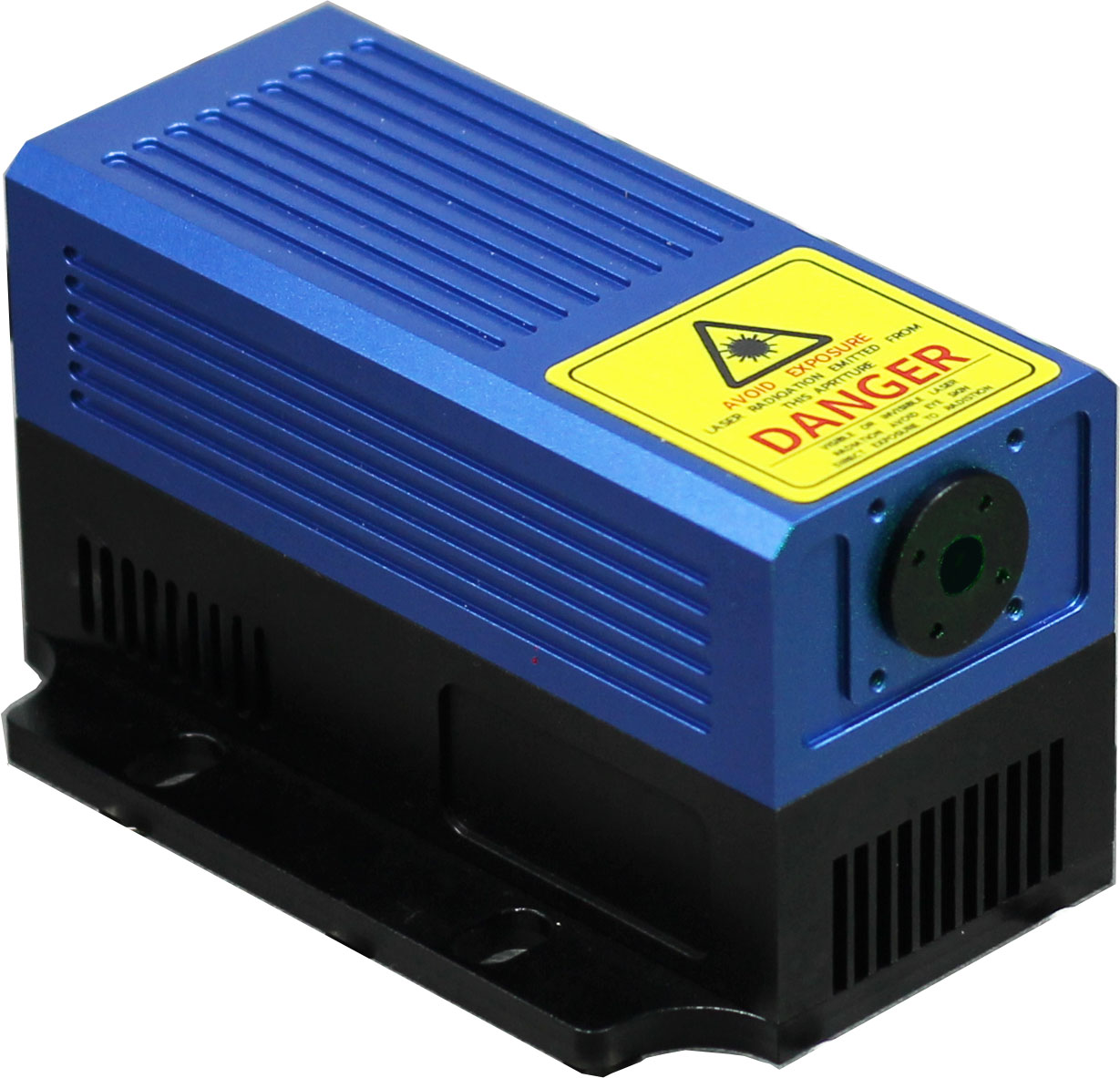

1870nm Laser Module
This laser module features ultra-compact design, low cost, and simple operation, making it ideal for scientific experiments, optical instruments, optical communication, measurement, communication, and spectrum analysis.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Wavelength(nm) | 1870±10 |
| Output Power(mW) | ＞1, 50, 100, ..., 500 |
| Output Mode | Near TEM00 |
| Beam Diameter(mm) | ＜2.0 |
| Operation Mode | CW |
| Power Stability (4 hours) | ＜1%, ＜3%, ＜5% |
| Warm-up Time(minutes) | ＜5 |
| Beam Divergence(mrad) | ＜3.0 |
| Beam Quality(M2) | 5-8 |
| Polarization | ＞50:1 |
| Output Aperture(mm) | 27 |
| Environmental Temperature Coefficient(rad/°C) | ＜0.05 |
| Operating Temperature(°C) | 10-35 |
| Power Supply | 90-264VAC |
| Modulation | 30k TTL/15k Analog |
| Operating Life(hours) | 10000 |
| Warranty | 1 year |
