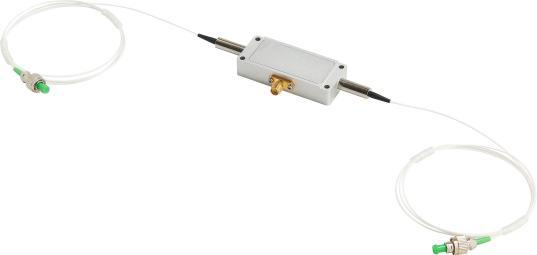

Polarization Maintaining 1550nm Fiber-Coupled Acousto-Optic Modulator (AOM Series)
The Polarization Maintaining Fiber-Coupled Acousto-Optic Modulator is designed for use in pulsed fiber laser amplifier systems and as a pulse picker for short pulse, high rep rate fiber laser.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Interaction Material | Tellurium dioxide |
| Signal Wavelength (λc) | 1550 |
| Operating Wavelength Range | ±30 |
| Frequency (MHz) | 150 |
| Max. Insertion Loss (dB) | 3.5 |
| Min. Polarization Extinction Ratio (dB) | 20 |
| Max. Rise-Time/Fall-Time (10%-90%) (ns) | 20 |
| Min. Extinction Ratio (Turn On/Off) (dB) | 45 |
| Max. Voltage Standing Wave Ratio (VSWR) | 1.5:1 |
| Frequency Shift (MHz) | 150 (UpShift) |
| Max. Average Optical Power (mW) | 500 (Other Power Available On Request) |
| Peak Power (kW) | 1 |
| Input Impedance (Ω) | 50 |
| Max. RF Power (W) | 2.5 |
| Fiber Type | PM1550 |
| Operating Temperature (°C) | -10 to +65 |
| Storage Temperature (°C) | -20 to +70 |
