Adjustable Focus Laser Module
This adjustable focus laser module is designed for precision alignment and positioning applications. It features a compact design, high stability, and adjustable focus capabilities, making it suitable for various industrial and professional uses.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Wavelength (nm) 515-520nm | 515-520 |
| Wavelength Error (nm) 515-520nm | ±5 |
| Power (mW) 515-520nm | 0.5-10mW |
| Beam Type 515-520nm | Line/Cross |
| Divergence Angle (°) 515-520nm | 10-90 |
| Linearity 515-520nm | ≤0.1% |
| Focal Distance 515-520nm | Adjustable |
| Working Distance 515-520nm | Within 3m |
| Wavelength (nm) 635-650nm | 635-650 |
| Wavelength Error (nm) 635-650nm | ±5 |
| Power (mW) 635-650nm | 0.1-10mW |
| Beam Type 635-650nm | Line/Cross |
| Divergence Angle (°) 635-650nm | 10-90 |
| Linearity 635-650nm | ≤0.1% |
| Focal Distance 635-650nm | Adjustable |
| Working Distance 635-650nm | Within 3m |
| Laser Drive Mode | CW/TTL |
| Operating Voltage (V) | 3-5V/12-24V |
| Operating Current (mA) | <100mA/<35mA |
| Tail Wire | DC wire/black leather wire |
| Protection | Anti-reverse connection, anti-interference |

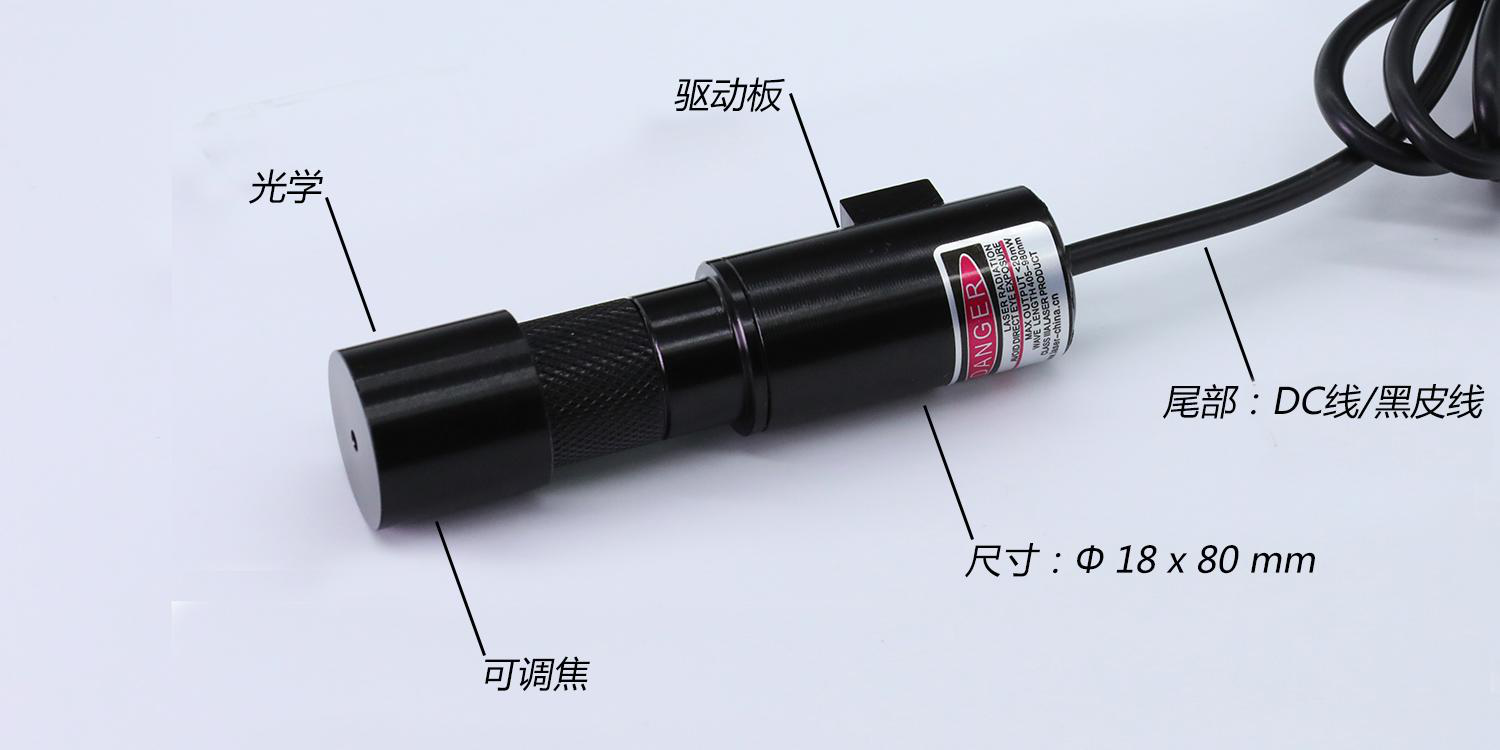

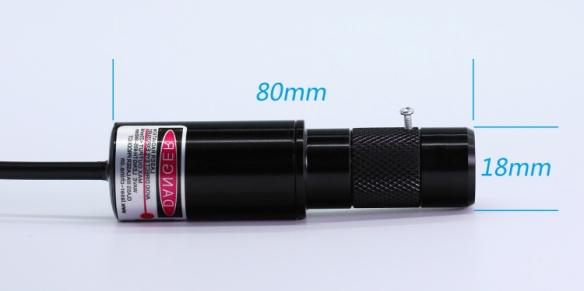

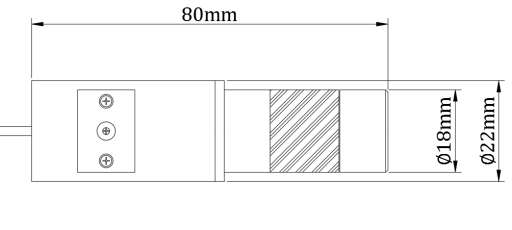

| Dimensions (mm) | Φ18×80 |
| Material | Black aviation aluminum |
| Operating Temperature (°C) | -10~50 |
| Storage Temperature (°C) | -40~85 |
| Service Life (hours) | ≥10000 |
