Laser Module Φ10×30mm
This laser module is compact and durable, designed for precision applications such as alignment, positioning, and measurement.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Wavelength (nm) | 635-650nm |
| Wavelength Error | ±5nm |
| Power (mW) | 0.1-10mW |
| Beam Type | Line |
| Divergence Angle | 5-130° |
| Linearity | ≤0.5% |
| Focal Distance | Non-adjustable |
| Working Distance | Within 3m |
| Laser Drive Mode | CW/TTL |
| Operating Voltage | 3-5V/12-24V |
| Operating Current | <35mA |
| Tail Wire | Red-black wire/DC wire/Dual wire |
| Protection | Anti-reverse connection, anti-interference |

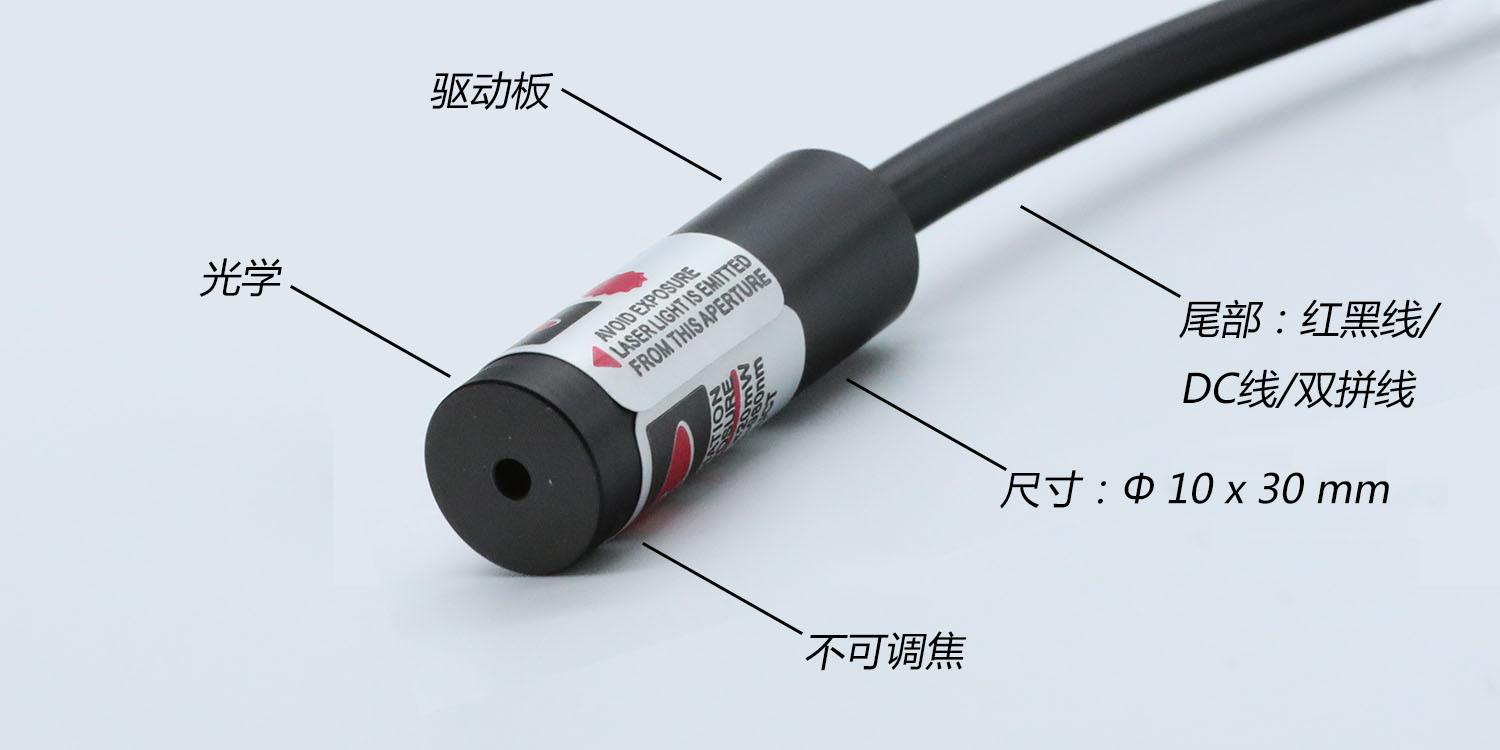

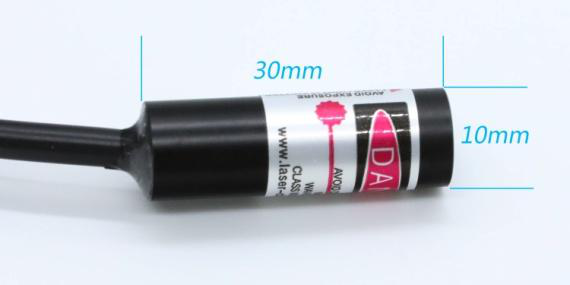

| Dimensions (mm) | Φ10×30mm |
| Material | Black aerospace aluminum |
| Operating Temperature | -10~50°C (Standard) |
| Storage Temperature | -40~85°C (Standard) |
| Service Life | ≥10000 hours |
