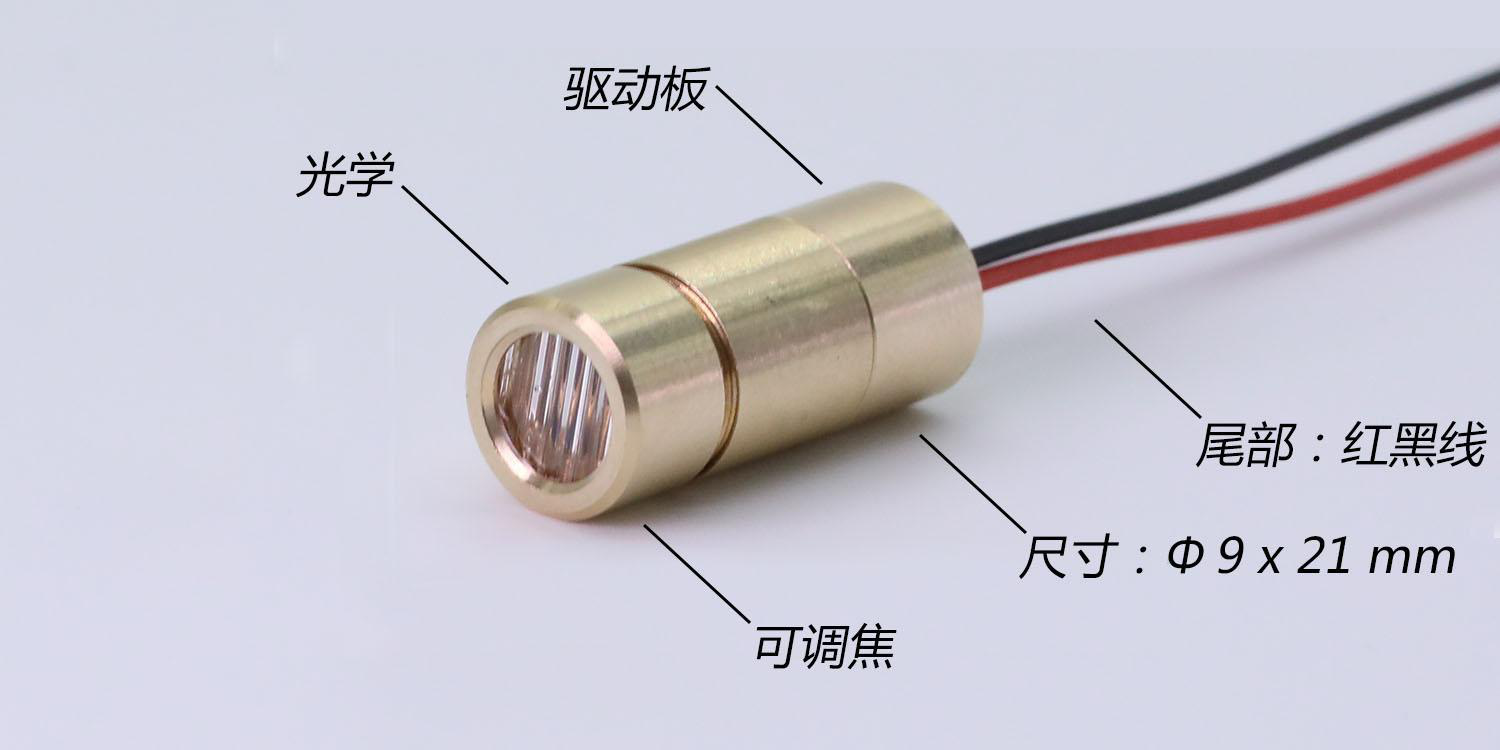

Adjustable Focus Laser Module
This adjustable focus laser module is compact and versatile, designed for precision applications requiring high stability and reliability.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Wavelength (nm) 515-520nm | 515-520nm |
| Wavelength Error (nm) 515-520nm | ±5nm |
| Power (mW) 515-520nm | 0.5-10mW |
| Beam Type 515-520nm | Line/Cross |
| Divergence Angle (°) 515-520nm | 5-130° |
| Linearity 515-520nm | ≤1% |
| Focal Distance 515-520nm | Adjustable |
| Working Distance 515-520nm | Within 2m |
| Laser Drive Mode 515-520nm | CW/TTL |
| Operating Voltage (V) 515-520nm | 3-5V |
| Operating Current (mA) 515-520nm | <100mA |
| Tail Wire 515-520nm | Red/Black |
| Protection 515-520nm | Anti-reverse connection, anti-interference |
| Wavelength (nm) 635-650nm | 635-650nm |
| Wavelength Error (nm) 635-650nm | ±5nm |
| Power (mW) 635-650nm | 0.1-10mW |
| Beam Type 635-650nm | Line/Cross |
| Divergence Angle (°) 635-650nm | 5-130° |
| Linearity 635-650nm | ≤1% |
| Focal Distance 635-650nm | Adjustable |
| Working Distance 635-650nm | Within 2m |
| Laser Drive Mode 635-650nm | CW/TTL |
| Operating Voltage (V) 635-650nm | 3-5/12-24 |
| Operating Current (mA) 635-650nm | <35mA |
| Tail Wire 635-650nm | Red/Black |
| Protection 635-650nm | Anti-reverse connection, anti-interference |
| Wavelength (nm) 780-980nm | 780-980nm |
| Wavelength Error (nm) 780-980nm | ±10nm |
| Power (mW) 780-980nm | 100-500mW |
| Beam Type 780-980nm | Line/Cross |
| Divergence Angle (°) 780-980nm | 5-130° |
| Linearity 780-980nm | ≤1% |
| Focal Distance 780-980nm | Adjustable |
| Working Distance 780-980nm | Within 2m |
| Laser Drive Mode 780-980nm | CW/TTL |
| Operating Voltage (V) 780-980nm | 12-24V |
| Operating Current (mA) 780-980nm | <700mA |
| Tail Wire 780-980nm | Red/Black |
| Protection 780-980nm | Anti-reverse connection, anti-interference |
| Operating Temperature (°C) | -10~50°C |
| Storage Temperature (°C) | -40~85°C |
| Service Life (hours) | ≥10000 |
