Laser Module

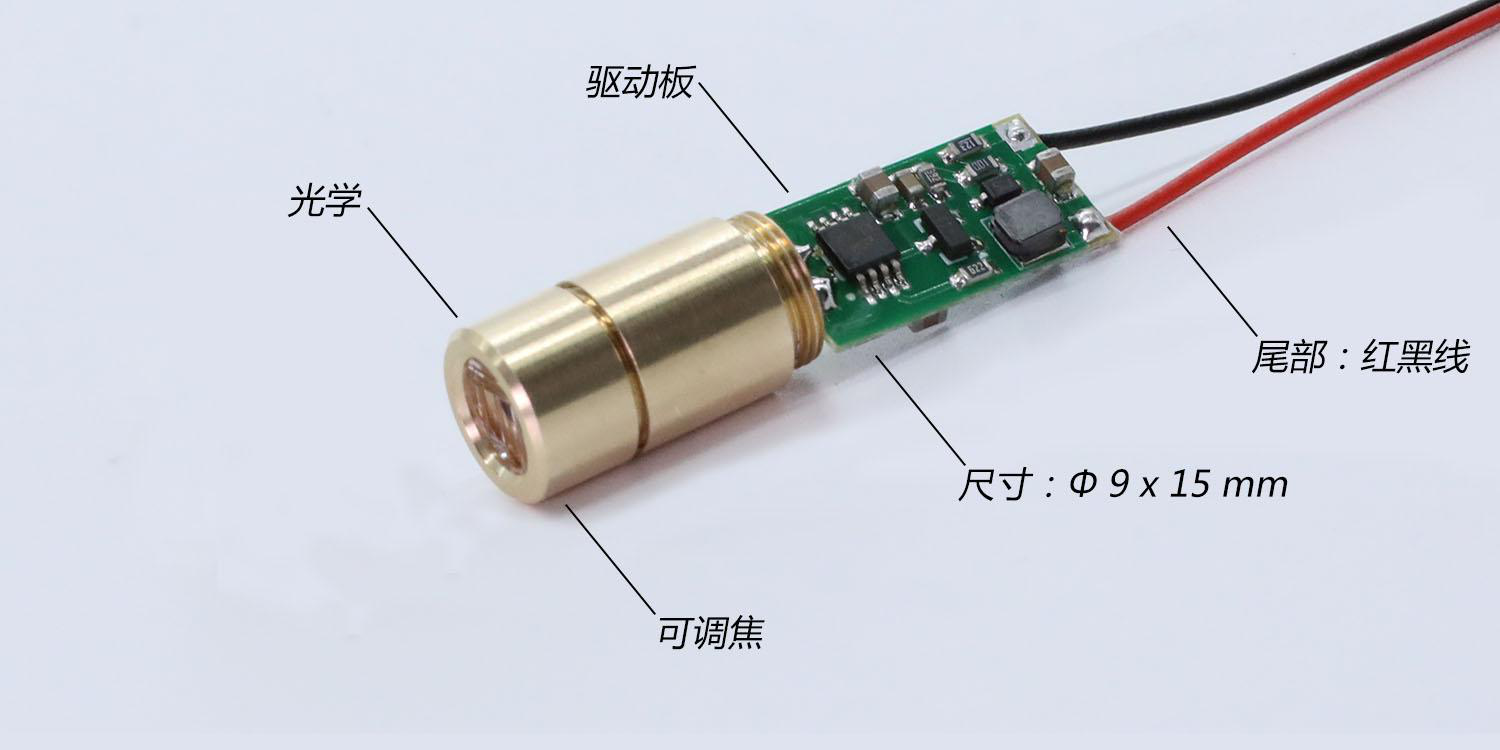

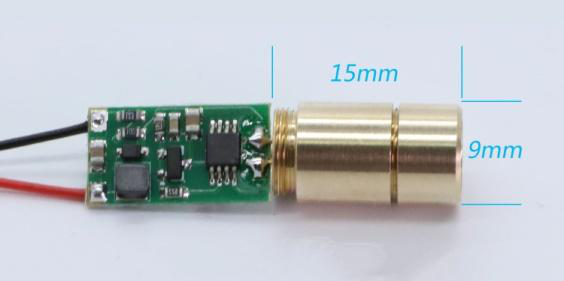

This laser module features adjustable focus and compact dimensions, making it suitable for various applications requiring precision and reliability.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Wavelength Error | ±5nm, ±10nm |
| Beam Type | Line/Cross |
| Divergence Angle | 5-130° |
| Linearity | ≤1% |
| Laser Drive Mode | CW/TTL |
| Operating Voltage (V) | 3-5V/12-24V |
| Operating Current (mA) | <100mA, <700mA |
| Tail Wire | Red and black wires |
| Protection | Anti-reverse connection, anti-interference |
| Storage Temperature | -40~85°C (Standard) |
| Service Life | ≥10000 hours |
Applications
Key Features
Datasheet
