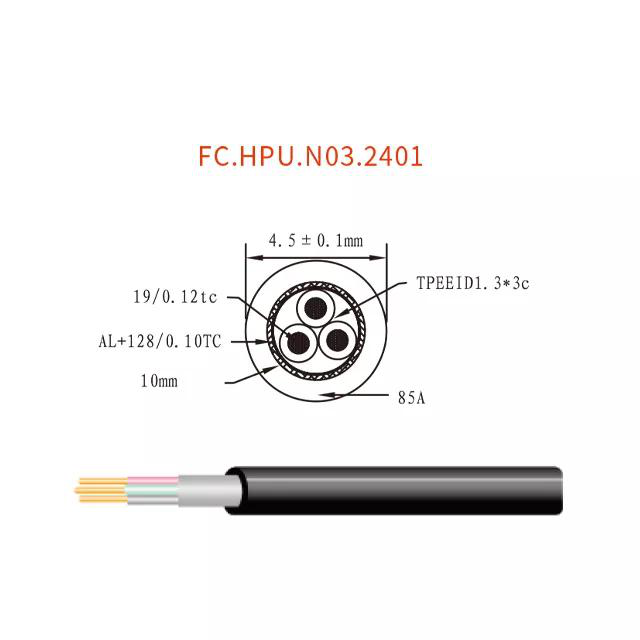

FC.HPU.N03.2401
This is a high-temperature resistant cable with excellent insulation and shielding properties, designed for demanding applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Specification | Φ4.5 (19/0.12TCID1.3*3c black blue+AL+128/0.10TC braided+PT) 85A high-temperature resistant 120°C PU black |
| Conductor Specification | 24AWG*3c |
| Conductor Material | Tinned copper |
| Conductor Structure | 19/0.12TC |
| Conductor Color | Tin color |
| Insulation Average Thickness | 0.34mm |
| Insulation Minimum Thickness | 0.3mm |
| Insulation Outer Diameter | 1.3±0.20mm |
| Insulation Material | TPEE+Color masterbatch |
| Insulation Color | Black |
| Insulation Color | blue |
| Shielding Material | Tinned copper |
| Shielding Structure | 15MMAL+16/8/0.10TC braided |
| Shielding Average Thickness | 0.65mm |
| Shielding Minimum Thickness | 0.6mm |
| Outer Sheath Insulation Outer Diameter | 4.5±0.1mm |
| Outer Sheath Insulation Material | 85A high-temperature resistant 120°C PU black |
| Outer Sheath Color | Black |
| Printing | None |
