FGK Series Circular Connectors
FGK series circular connectors are designed for high-performance applications, offering reliable connections in harsh environments. They feature robust construction, high durability, and excellent shielding performance.
Save to Favorites
Overview
Specifications

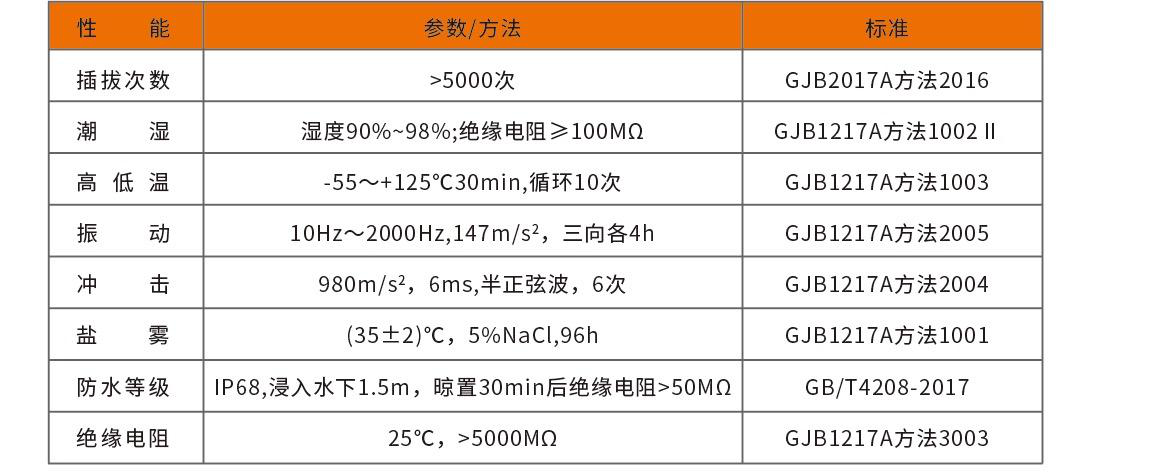

| Parameter | Value |
|---|---|
| Insertion Cycles | ＞5000次 |
| Humidity | 湿度90%~98%;绝缘电阻≥100MΩ |
| High and Low Temperature | -55~+125°C30min,循环10次 |
| Vibration | 10Hz~2000Hz,147m/s²,三向各4h |
| Shock | 980m/s²,6ms,半正弦波,6次 |
| Salt Spray | (35±2)°C,5%NaCl,96h |
| Waterproof Level | IP68,浸入水下1.5m,喷置30min后绝缘电阻≥50MΩ |
| Insulation Resistance | 25°C,＞5000MΩ |

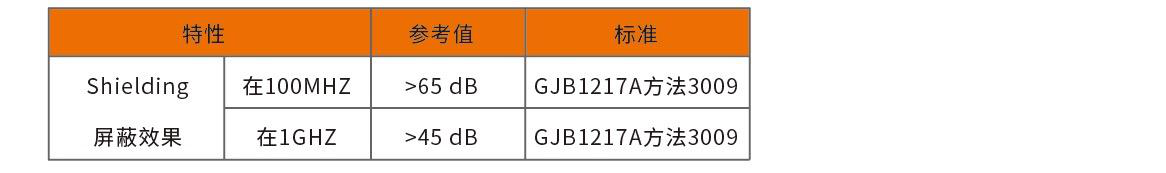

| Shielding Effectiveness at 100MHz | ＞65dB |
| Shielding Effectiveness at 1GHz | ＞45dB |

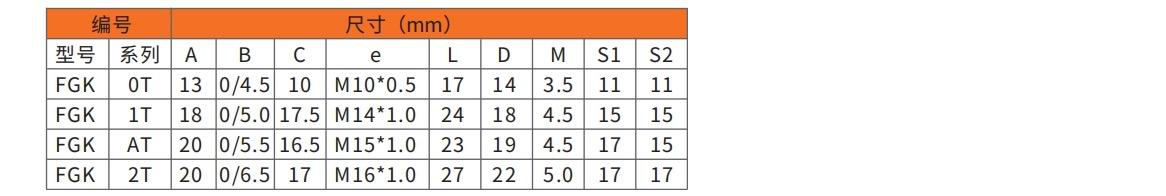

| Dimension A | 13,18,20,20 |
| Dimension B | 0/4.5,0/5.0,0/5.5,0/6.5 |
| Dimension C | 10,7.5,6.5,17 |
| Dimension e | M10*0.5,M14*1.0,M15*1.0,M16*1.0 |
| Dimension L | 17,24,23,27 |
| Dimension D | 14,18,19,22 |
| Dimension M | 3.5,4.5,4.5,5.0 |
| Dimension S1 | 11,15,17,17 |
| Dimension S2 | 11,15,15,17 |

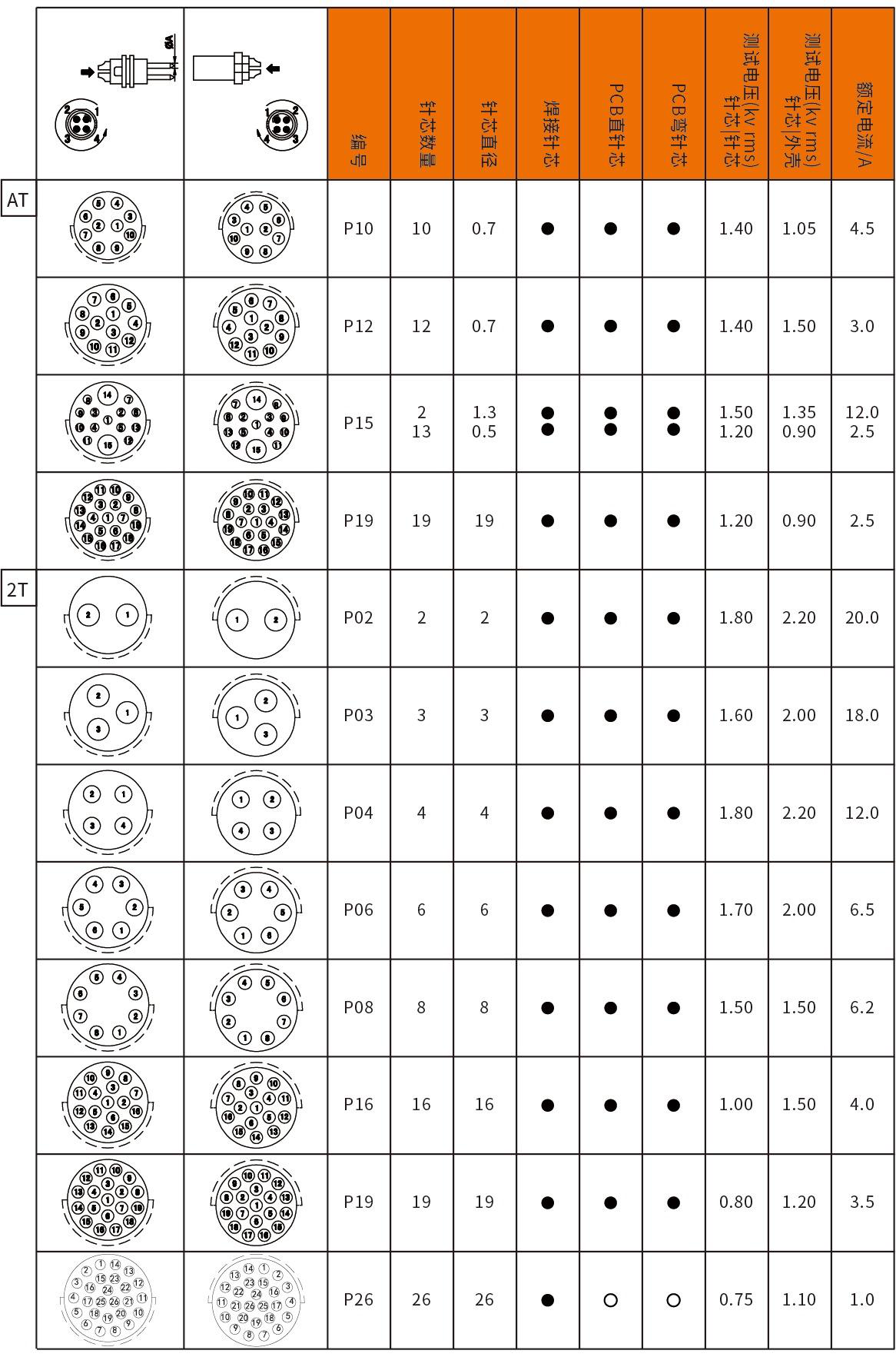

| Number of Pins | 2,3,4,6,8,10,12,13,16,19,26 |
| Rated current | 1.0A,1.5A,2.0A,4.5A,6.5A,12.0A,20.0A |
| Rated Voltage | 1.40kV,1.80kV,0.75kV |
