PKG Series Circular Connector
PKG series circular connectors are designed for reliable electrical connections, featuring high durability, compact design, and versatile applications in various industries.
Save to Favorites
Overview
Specifications

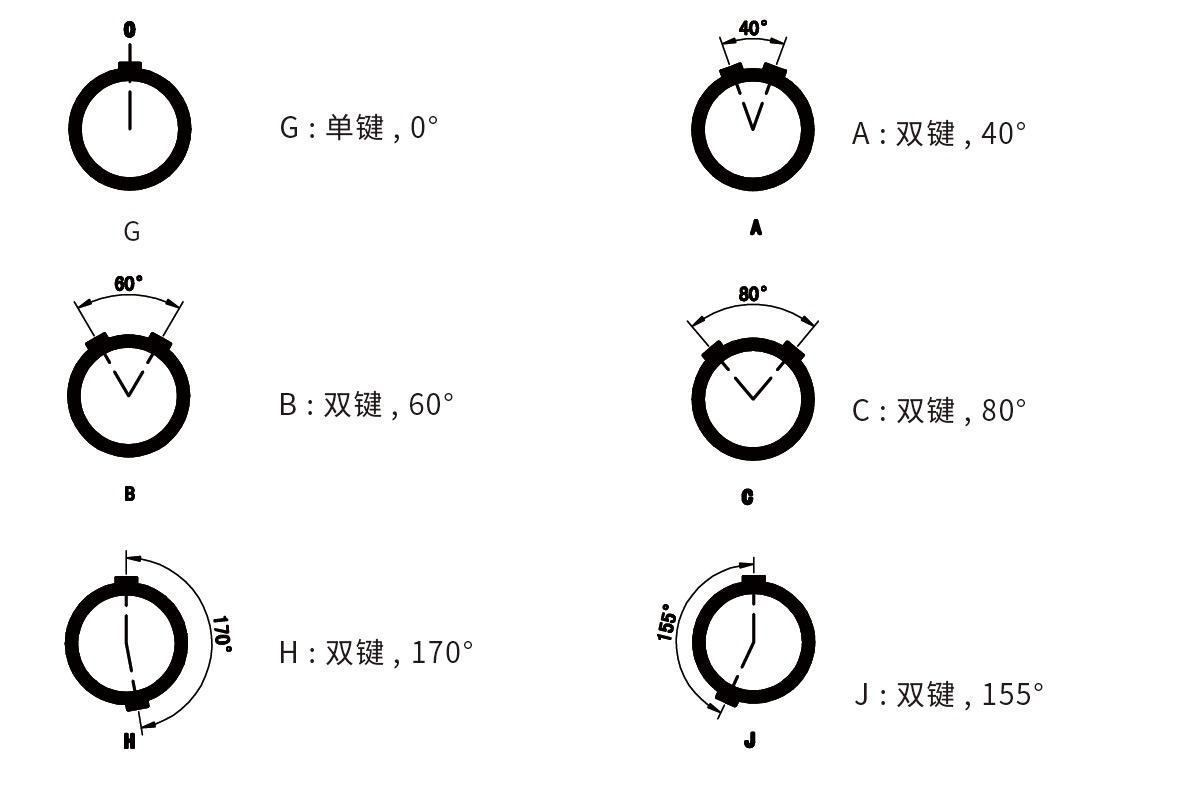

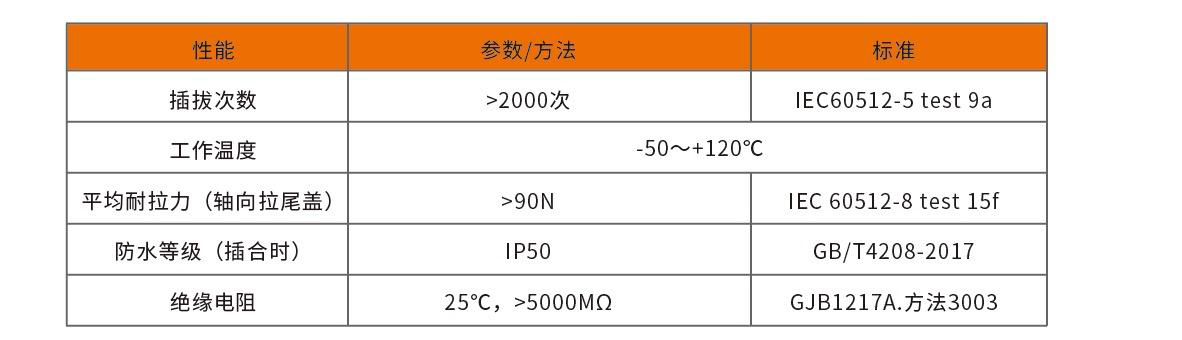

| Parameter | Value |
|---|---|
| Mating Cycles | >2000次 |
| Operating Temperature | -50~+120°C |
| Average Pull Strength | >90N |
| Waterproof Rating (Mated) | IP50 |
| Insulation Resistance | 25°C, >5000MΩ |
| Model | PKG |
| Series | 1P |

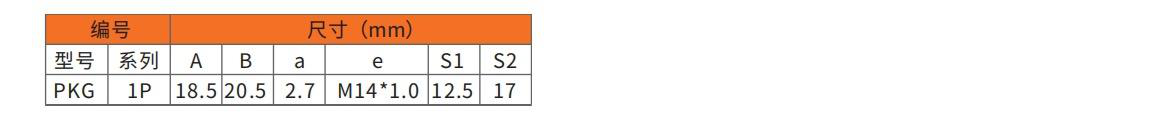

| A (mm) | 18.5 |
| B (mm) | 20.5 |
| A (mm) | 2.7 |
| e (mm) | M14*1.0 |
| S1 (mm) | 12.5 |
| S2 (mm) | 17 |

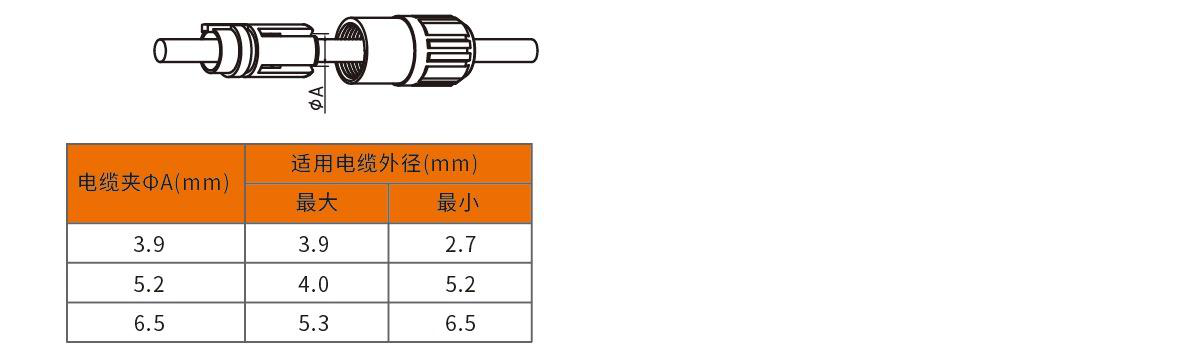

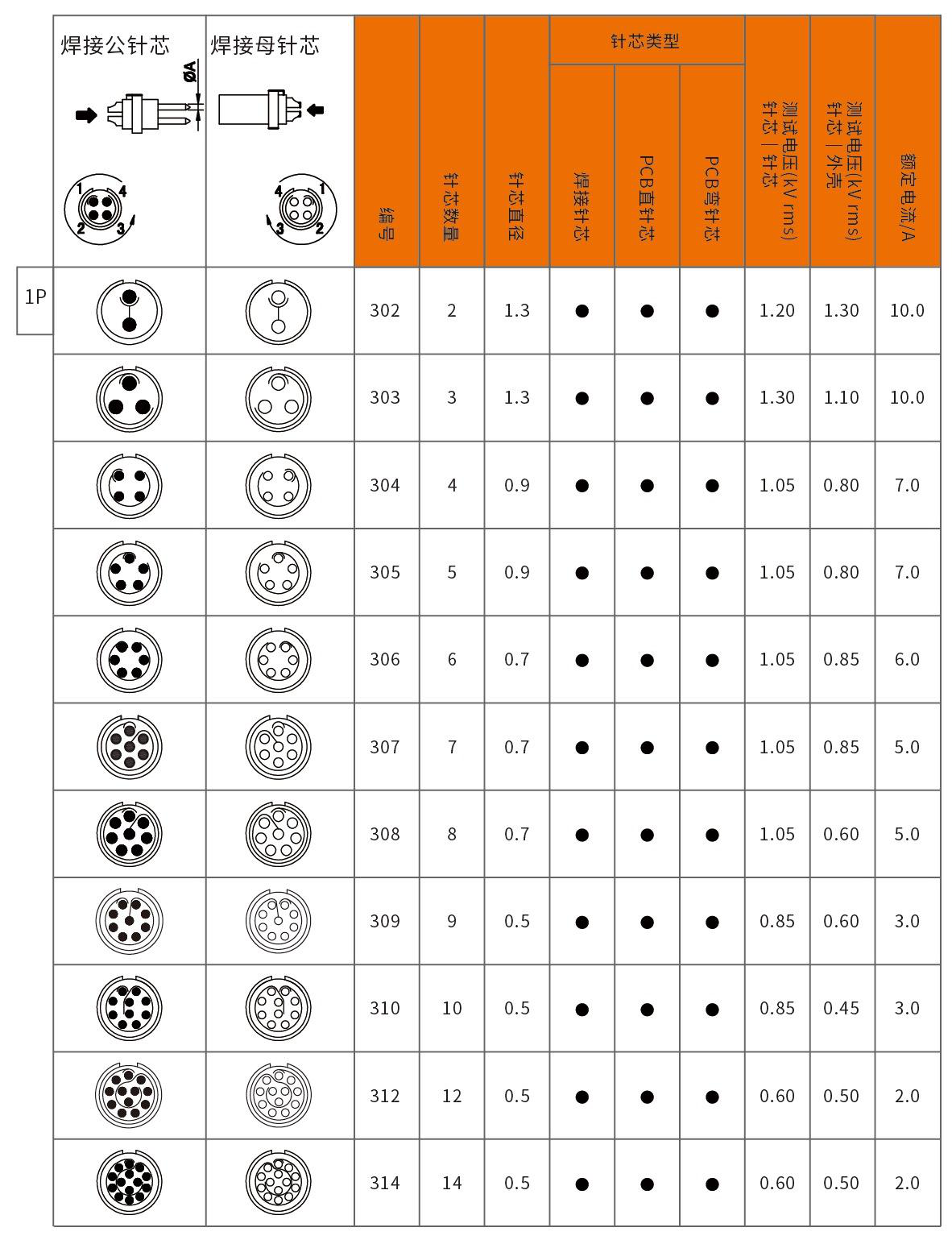

| Cable Clamp Diameter ΦA (mm) | 3.9, 5.2, 6.5 |
| Applicable Cable Outer Diameter Max (mm) | 3.9, 4.0, 5.3 |
| Applicable Cable Outer Diameter Min (mm) | 2.7, 5.2, 6.5 |
| Number of Pins | 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 14 |
| Rated Current (A) | 10.0, 10.0, 10.0, 10.0, 6.0, 5.0, 5.0, 3.0, 3.0, 2.0, 2.0 |
| Test Voltage (kV rms) | 1.20, 1.30, 1.30, 1.05, 1.05, 1.05, 1.05, 0.85, 0.85, 0.60, 0.60 |
