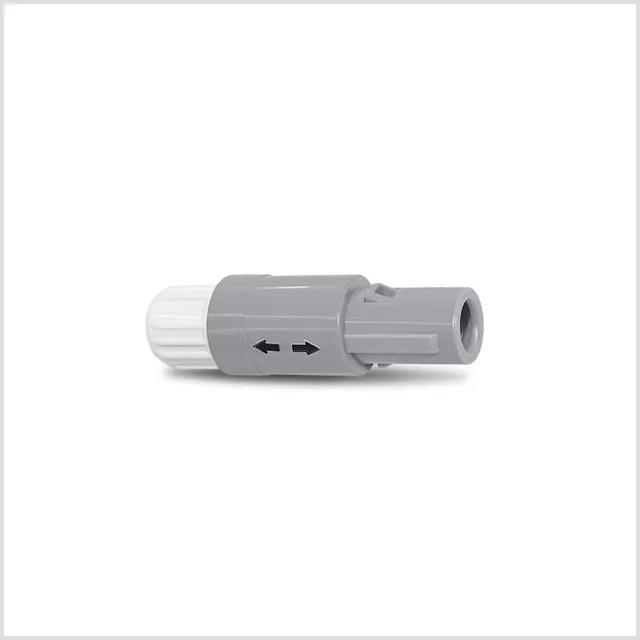

PAG Series Connector
The PAG Series Connector is a high-performance electrical connector designed for reliable and durable connections in various applications.
Save to Favorites
Overview
Specifications

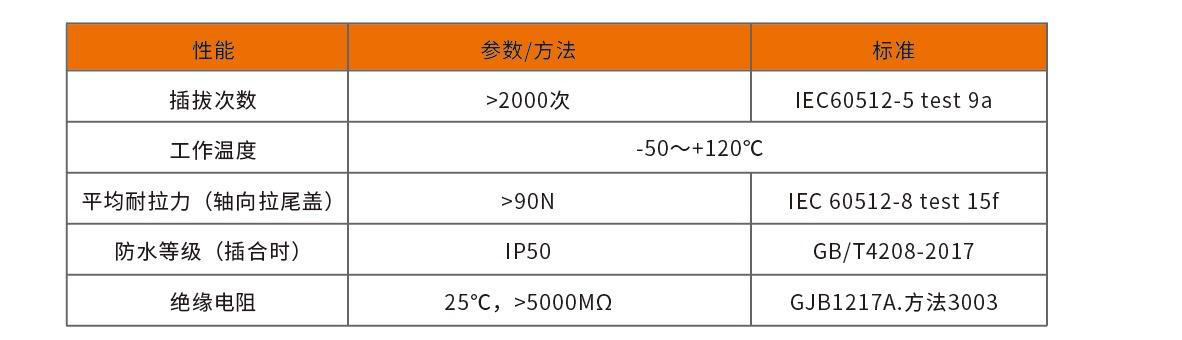

| Parameter | Value |
|---|---|
| Plugging Cycles | ＞2000次 |
| Operating Temperature | -50~+120°C |
| Average Tensile Strength (Axial Pull Tail Cover) | ＞90N |
| Waterproof Rating (When Plugged) | IP50 |
| Insulation Resistance | 25°C, ＞5000MΩ |

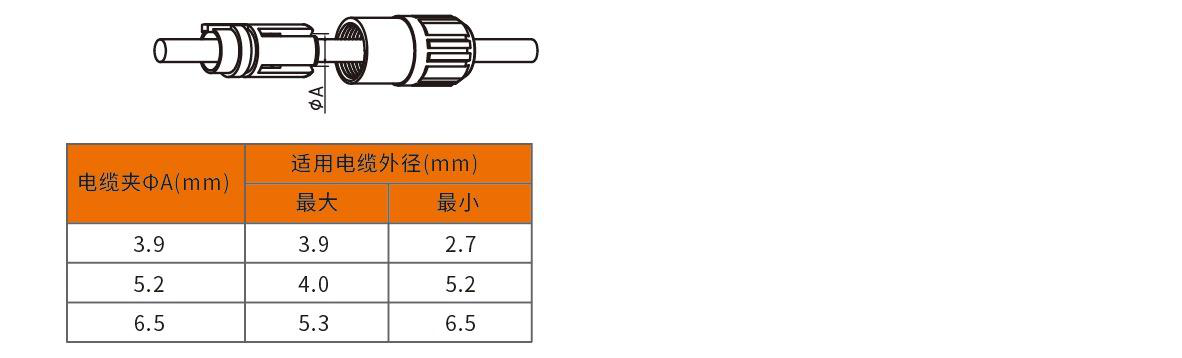

| Cable Clamp Diameter | 3.9, 5.2, 6.5 |
| Applicable Cable Outer Diameter (Max) | 3.9, 4.0, 5.3 |
| Applicable Cable Outer Diameter (Min) | 2.7, 5.2, 6.5 |

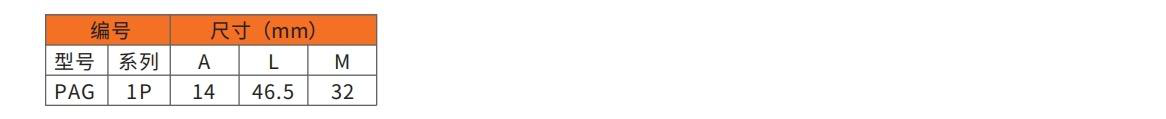

| Model | PAG |

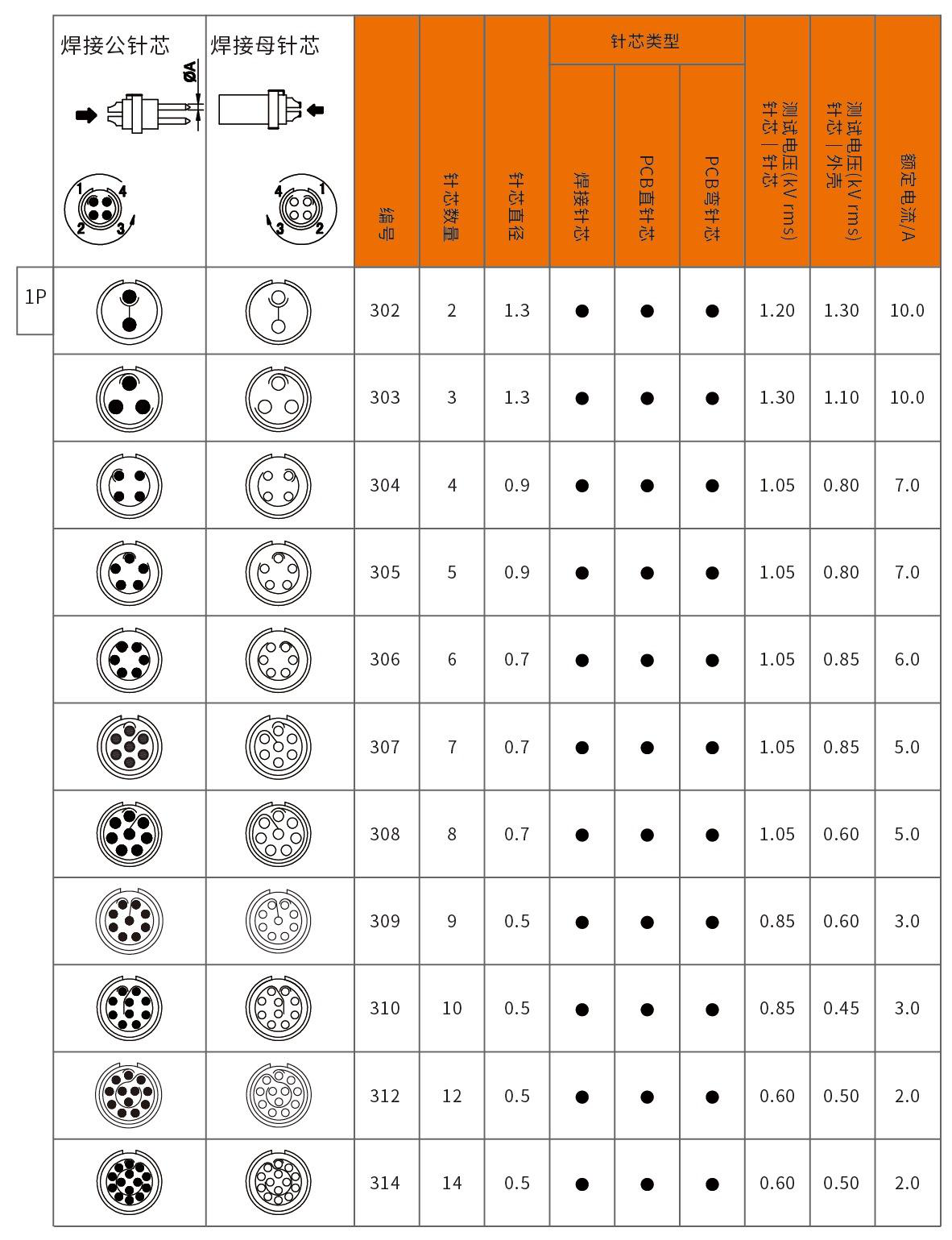

| Series | 1P |
| A | 14 |
| L | 46.5 |
| M | 32 |
Applications
Key Features
Datasheet
