Circular Connector
This circular connector is designed for reliable electrical connections, featuring multiple pin configurations and compact sizes.
Save to Favorites
Overview
Specifications

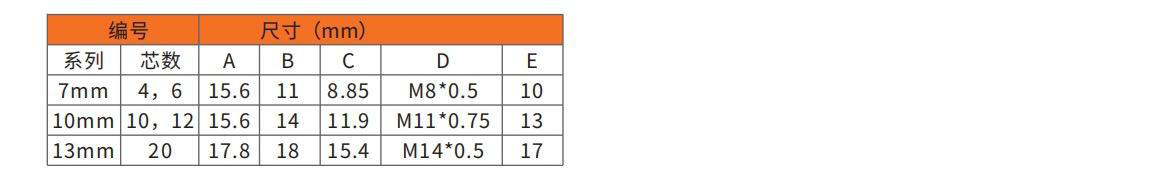

| Parameter | Value |
|---|---|
| Series | 7mm, 10mm, 13mm |
| Number of Pins | 4, 6, 10, 12, 20 |
| Dimension A (mm) | 15.6, 17.8 |
| Dimension B (mm) | 15.6, 18 |
| Dimension C (mm) | 8.85, 11.9, 15.4 |
| Dimension D | M8*0.5, M11*0.75, M14*0.5 |
| Dimension E (mm) | 10, 13, 17 |
| Rated Voltage | AC500V/min, AC300V/min |
| Rated current | 2A |
| Insulation Resistance | MIN 1,000Ω |
| Pin Resistance | MAX 10Ω |
| Solder Cup Size | Φ0.8 |
