PGX Series Connectors
PGX series connectors are high-performance electrical connectors designed for reliable signal transmission in various demanding environments.
Save to Favorites
Overview

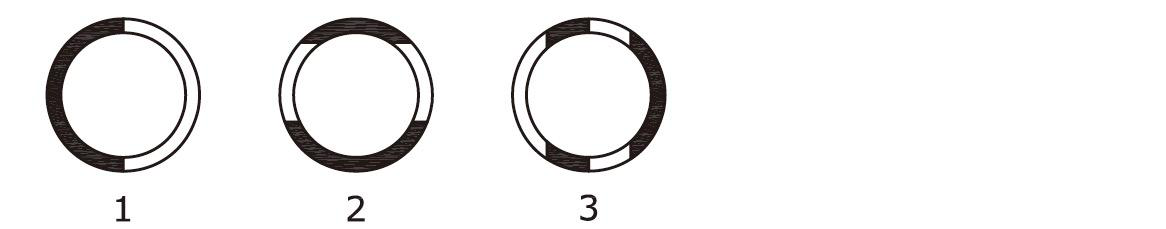

Specifications
| Parameter | Value |
|---|---|

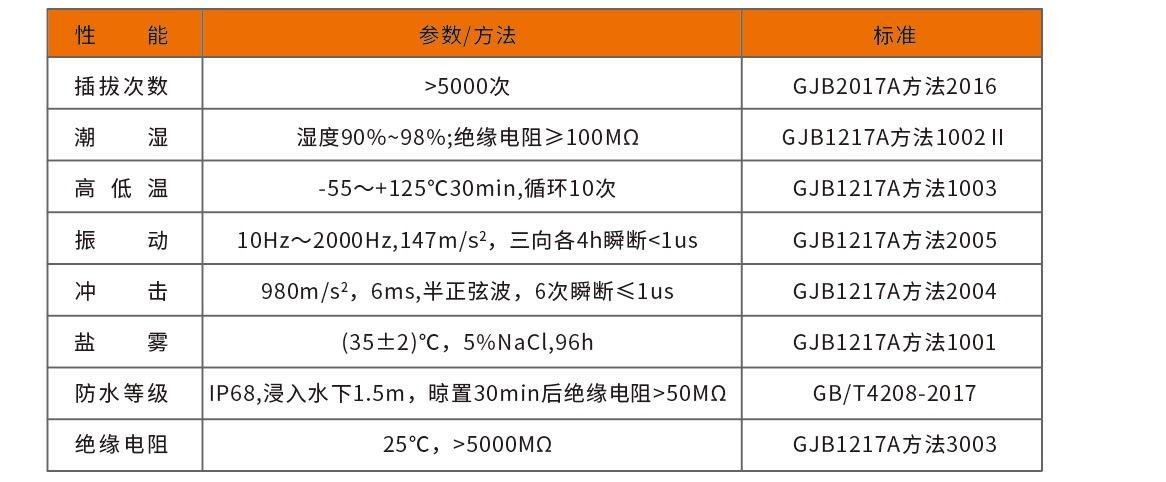

| Insertion Cycles | ＞5000次 |
| Humidity | 湿度90%~98%;绝缘电阻≥100MΩ |
| High and Low Temperature | -55~+125°C30min,循环10次 |
| Vibration | 10Hz~2000Hz,147m/s²,三向各4h瞬断＜1us |
| Shock | 980m/s²,6ms,半正弦波,6次瞬断＜1us |
| Salt Spray | (35±2)°C,5%NaCl,96h |
| Waterproof Level | IP68,浸入水下1.5m,喷置30min后绝缘电阻＞50MΩ |
| Insulation Resistance | 25°C,＞5000MΩ |

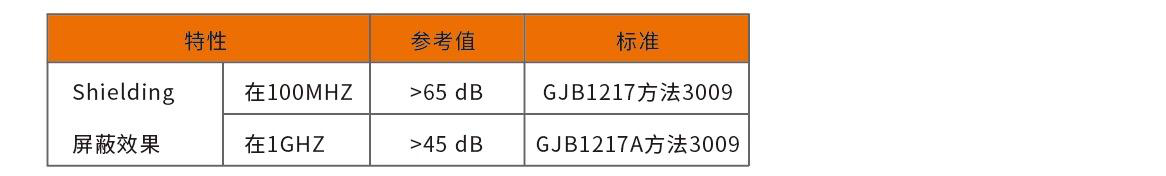

| Shielding Effectiveness at 100MHz | ＞65dB |
| Shielding Effectiveness at 1GHz | ＞45dB |

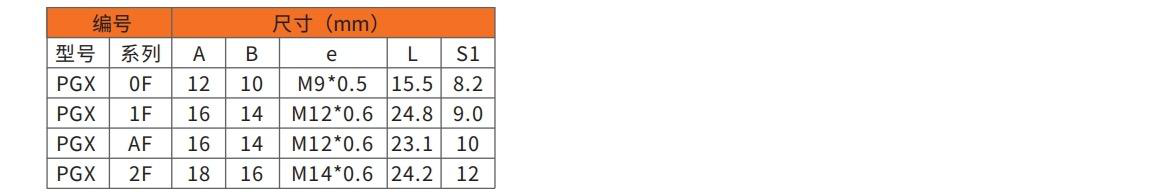

| Dimension A | 12,16,18 |
| Dimension B | 10,14,16 |
| Dimension e | M9*0.5,M12*0.6,M14*0.6 |
| Dimension L | 15.5,24.8,23.1,24.2 |
| Dimension S1 | 8.2,9.0,10,12 |

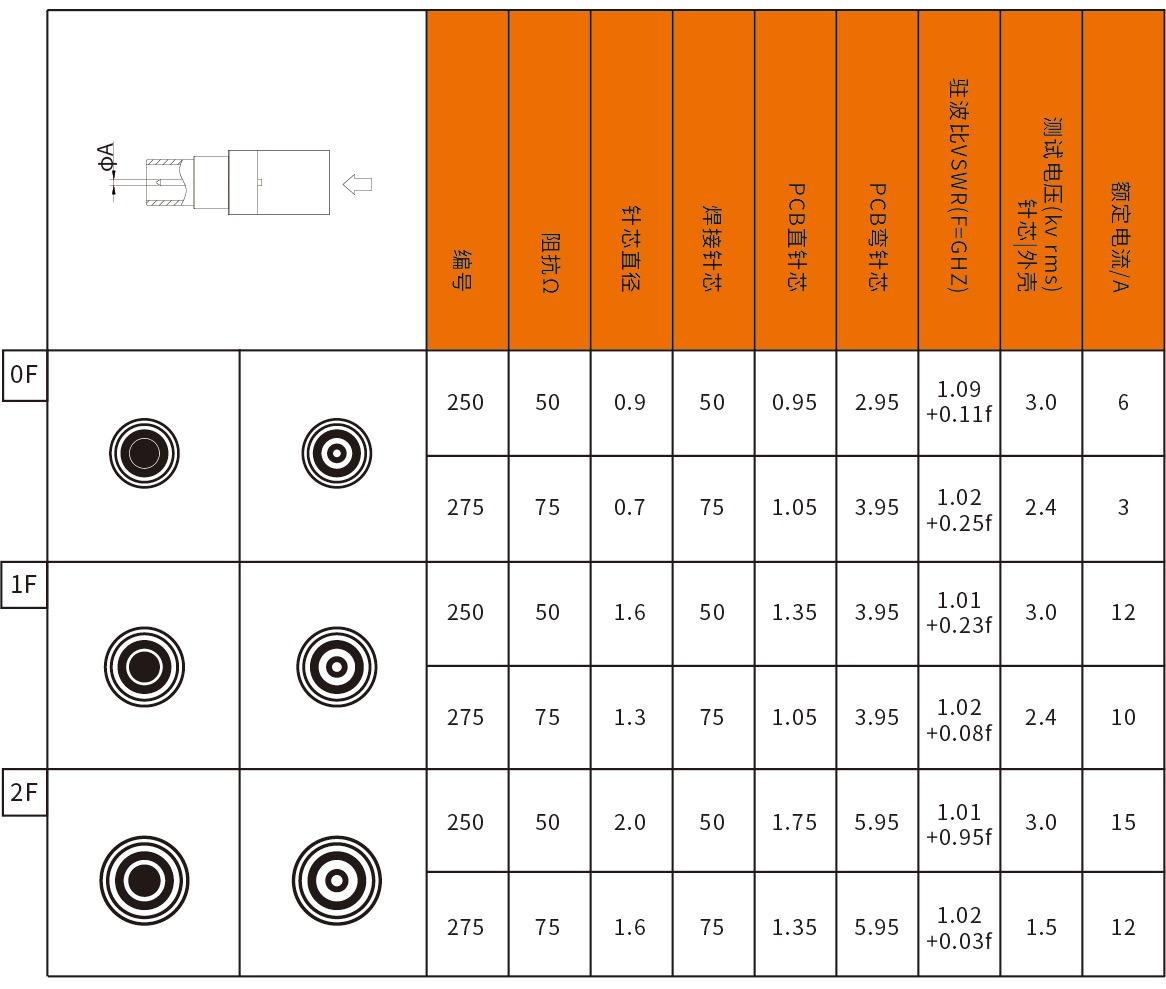

| Rated Current A | 6,12,15,20,25 |
| Test Voltage (kVrms) | 1.09+0.11f,1.02+0.25f,1.01+0.23f,1.02+0.08f,1.01+0.95f,1.02+0.03f |
| PCB DC Core | 0.95,1.05,1.35,1.75 |
| PCB High-Frequency Core | 2.95,3.95,5.95 |
| No-Load Diameter | 0.9,0.7,1.6,2.0 |
| Step | 250,275 |
| U-shaped Ring | 50,75 |

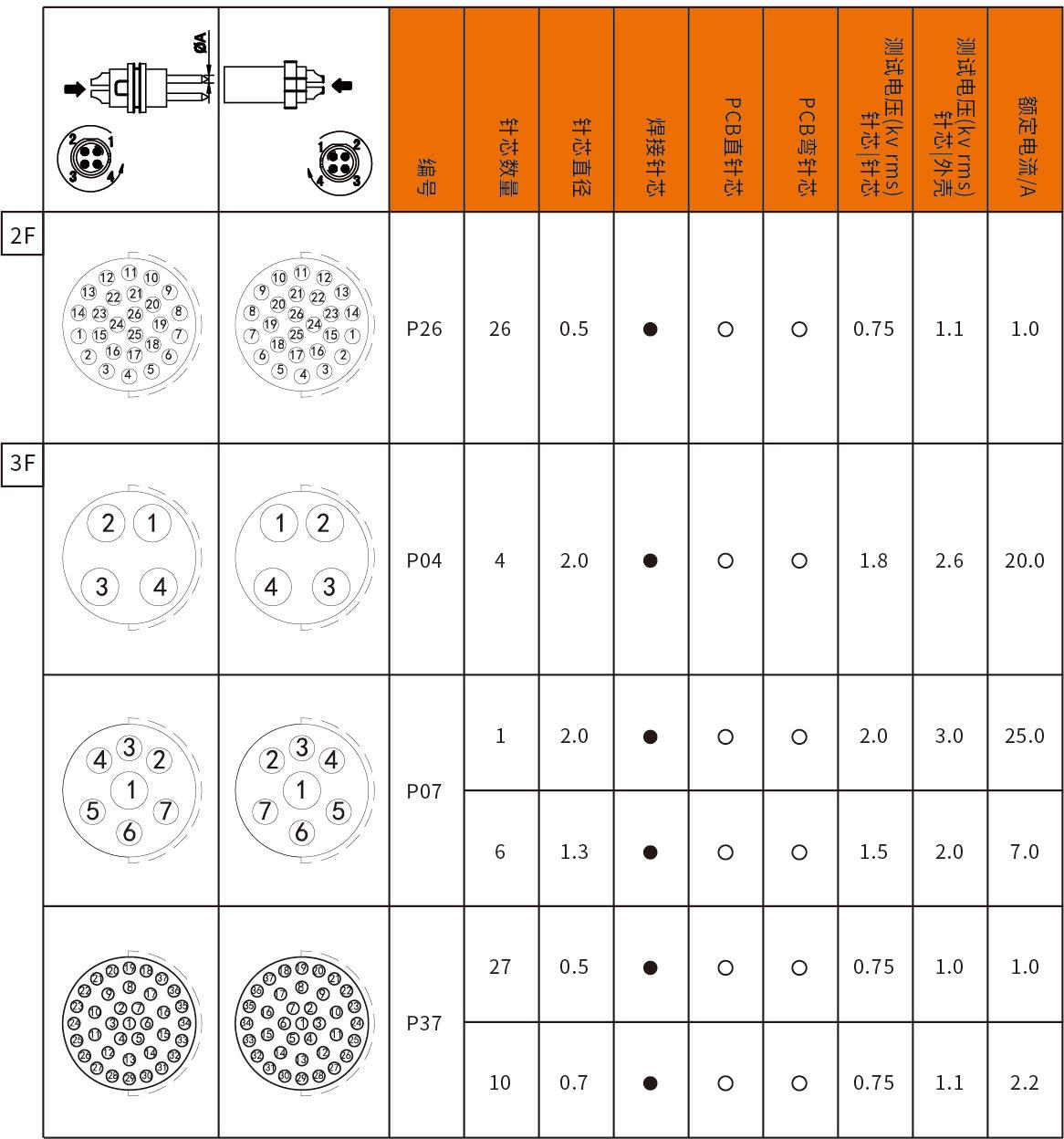

| Rated Current A (3F) | 1.0,20.0,25.0,7.0,2.2 |
| Test Voltage (kVrms) (3F) | 1.1,2.6,3.0,2.0,1.1 |
| PCB DC Core (3F) | 0.75,1.8,2.0,1.5,0.75 |
| PCB High-Frequency Core (3F) | 1.1,2.6,3.0,2.0,1.1 |
| No-Load Diameter (3F) | 0.5,2.0,2.0,1.3,0.7 |
| Step (3F) | 26,4,1,6,27 |
