FGD Series Connector
The FGD Series Connector is a high-performance, durable connector designed for various demanding applications. It features excellent shielding, high reliability, and robust environmental resistance.
Save to Favorites
Overview
Specifications

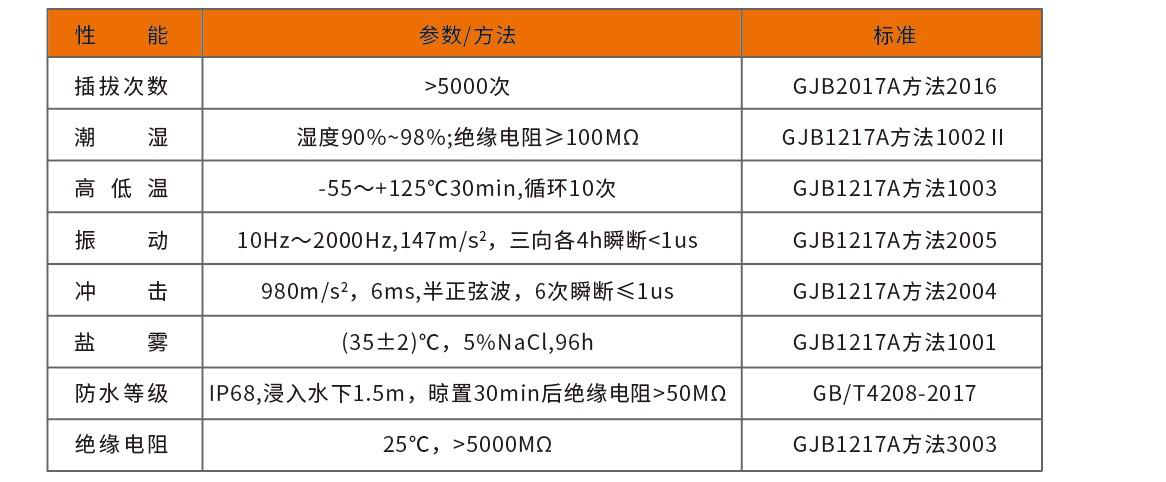

| Parameter | Value |
|---|---|
| Insertion Cycles | ＞5000次 |
| Humidity | 湿度90%~98%;绝缘电阻≥100MΩ |
| High and Low Temperature | -55~125°C,30min,循环10次 |
| Vibration | 10Hz~2000Hz,147m/s²,三向各4h瞬断＜1us |
| Shock | 980m/s²,6ms,半正弦波,6次瞬断＜1us |
| Salt Spray | (35±2)°C,5%NaCl,96h |
| Waterproof Level | IP68,浸入水下1.5m,喷置30min后绝缘电阻＞50MΩ |
| Insulation Resistance | 25°C,＞5000MΩ |

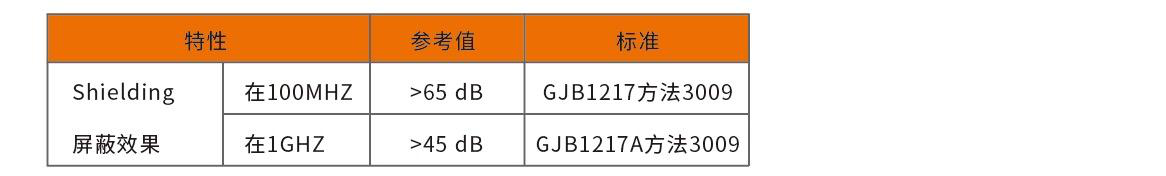

| Shielding Effectiveness at 100MHz | ＞65dB |
| Shielding Effectiveness at 1GHz | ＞45dB |

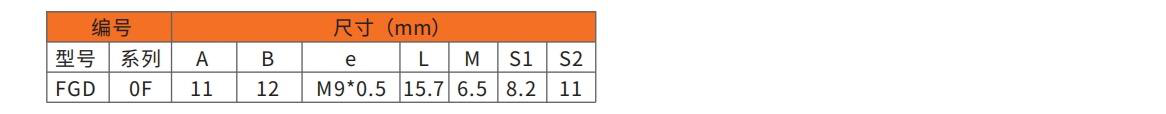

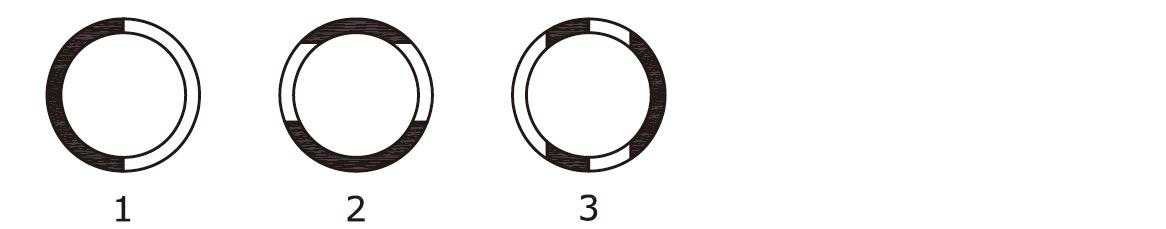

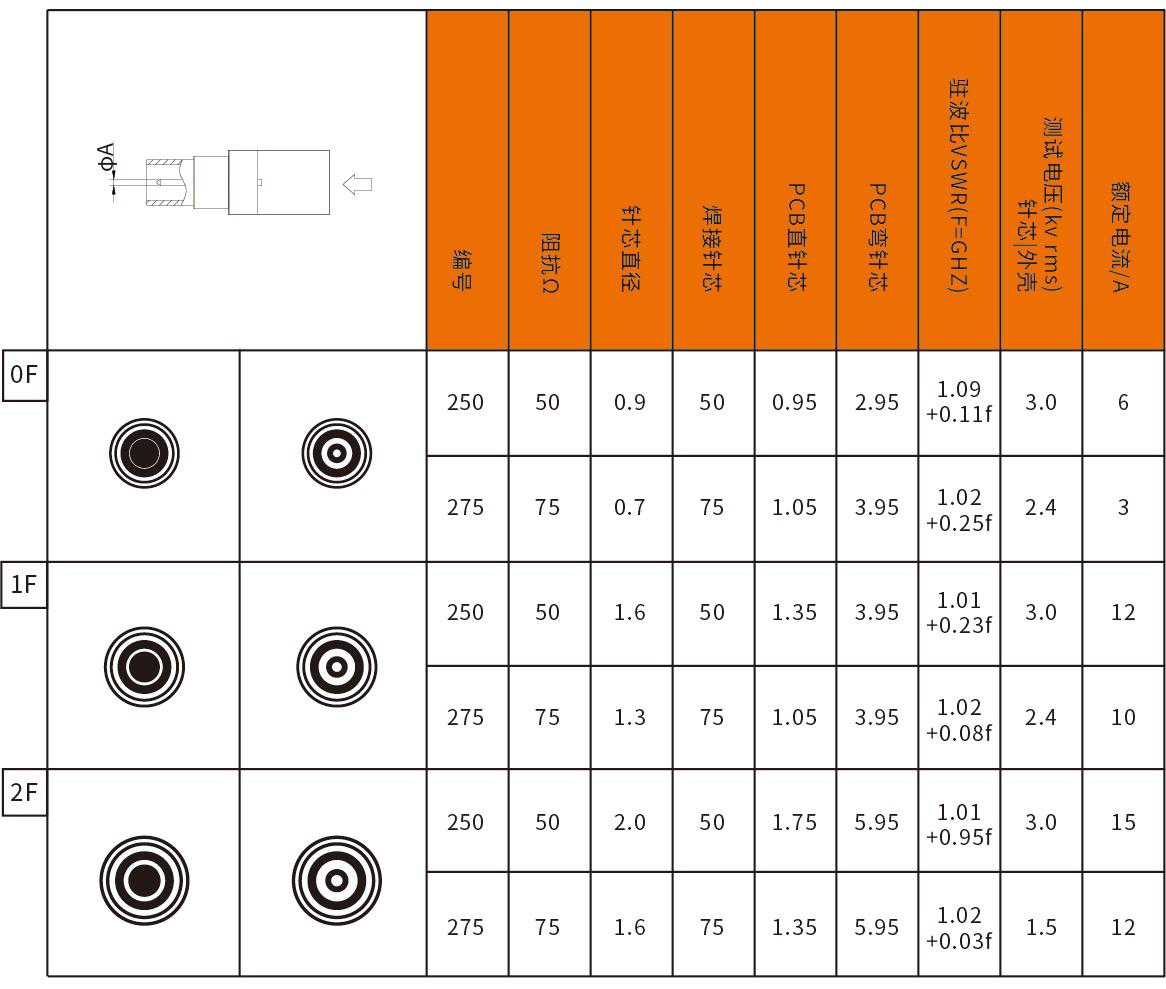

| Model | FGD |
| A | 11 |
| B | 12 |
| e | M9*0.5 |
| L | 15.7 |
| M | 6.5 |
| S1 | 8.2 |
| S2 | 11 |
| Qualification | 250 |
| U-shaped Ring | 50 |
| Radius Diameter | 0.9 |
| Short Circuit Core | 50 |
| PCB Diameter Core | 2.95 |
| VSWR(F-GHz) | 1.09+0.11f |
| Test Voltage A | 3.0 |
| Rated Current A | 6 |

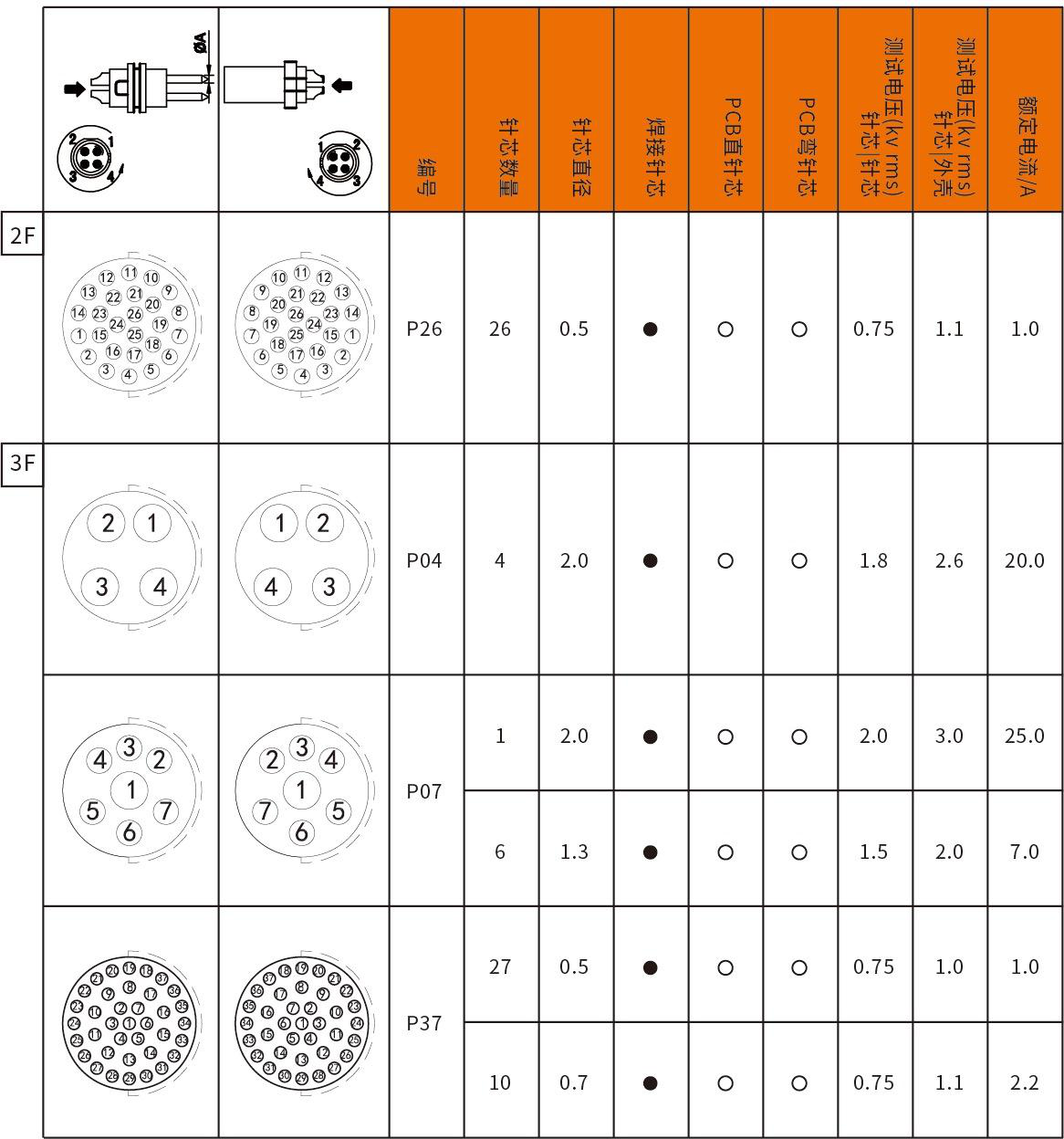

| Base | P26 |
| Rated Current A (P26) | 1.0 |
| Base (3F) | P37 |
| Rated Current A (P04) | 20.0 |
| Rated Current A (P07) | 25.0 |
| Rated Current A (P37) | 2.2 |
