FGM Series Connectors
FGM series connectors are designed for high-performance electrical and optical connections, offering robust durability and reliability.
Save to Favorites
Overview
Specifications

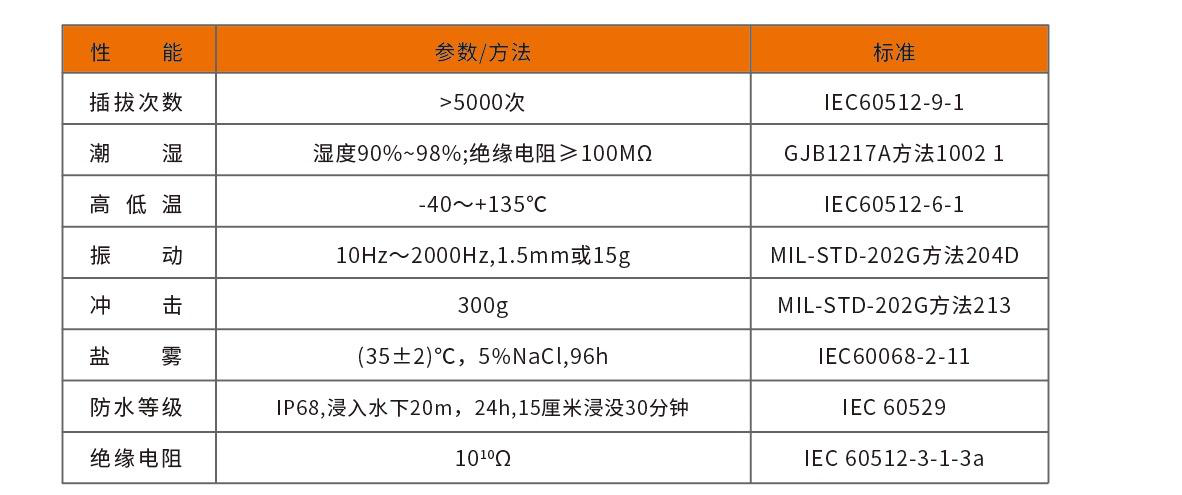

| Parameter | Value |
|---|---|
| Insertion Cycles | ＞5000次 |
| Humidity | 湿度90%~98%;绝缘电阻≥100MΩ |
| High and Low Temperature | -40~+135°C |
| Vibration | 10Hz~2000Hz,1.5mm或15g |
| Shock | 300g |
| Salt Spray | (35±2)°C,5%NaCl,96h |
| Waterproof Rating | IP68,浸入水下20m,24h,15厘米深浸没30分钟 |
| Insulation Resistance | 10^10Ω |

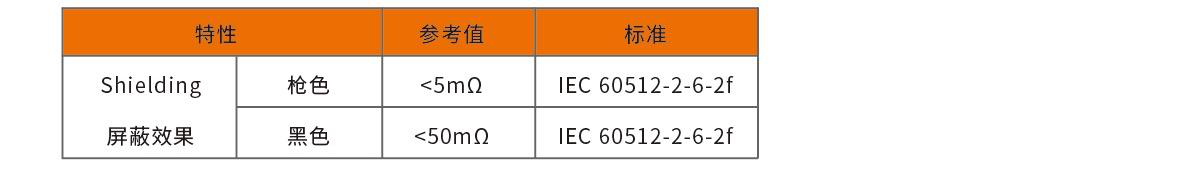

| Shielding Effectiveness | 枪色<5mΩ,黑色<50mΩ |
| Series | 2A,3A |

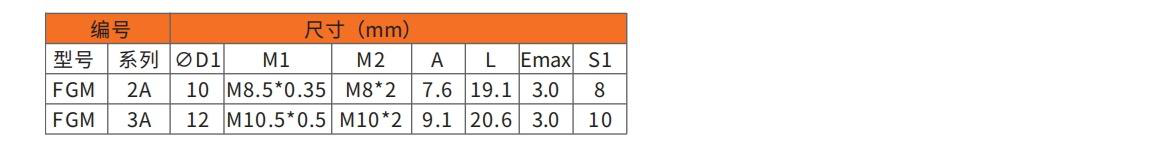

| Dimensions | 2A: ØD1=10mm, M1=M8.5*0.35, M2=M8*2, A=7.6mm, L=19.1mm, Emax=3.0mm, S1=8mm; 3A: ØD1=12mm, M1=M10.5*0.5, M2=M10*2, A=9.1mm, L=20.6mm, Emax=3.0mm, S1=10mm |

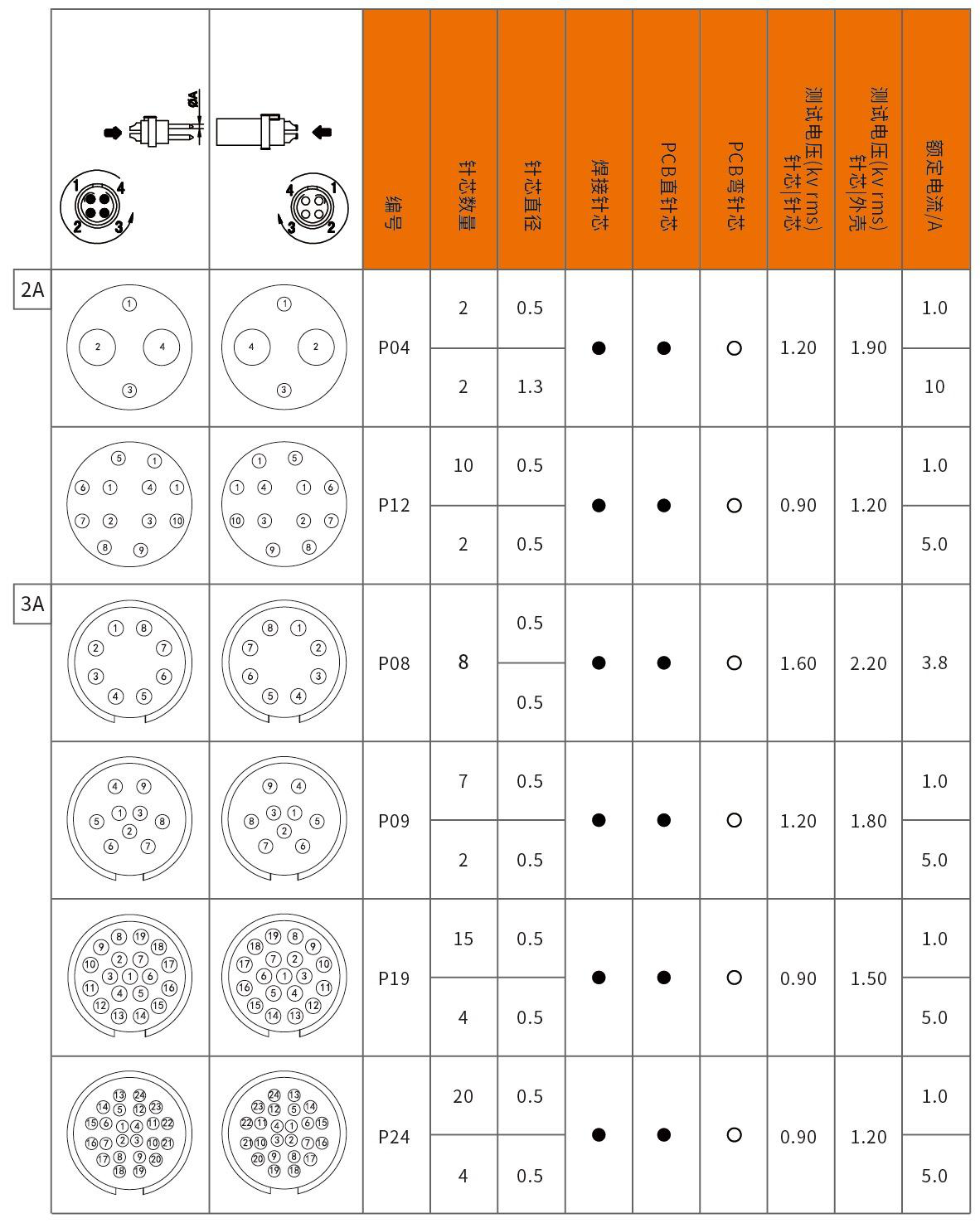

| Contact Configuration | 2A: P04=2芯, P12=10芯; 3A: P08=8芯, P09=7芯, P19=15芯, P24=20芯 |
