FGK Series Connectors
FGK series connectors are high-performance electrical connectors designed for demanding environments. They feature robust construction, high durability, and excellent shielding performance.
Save to Favorites
Overview
Specifications

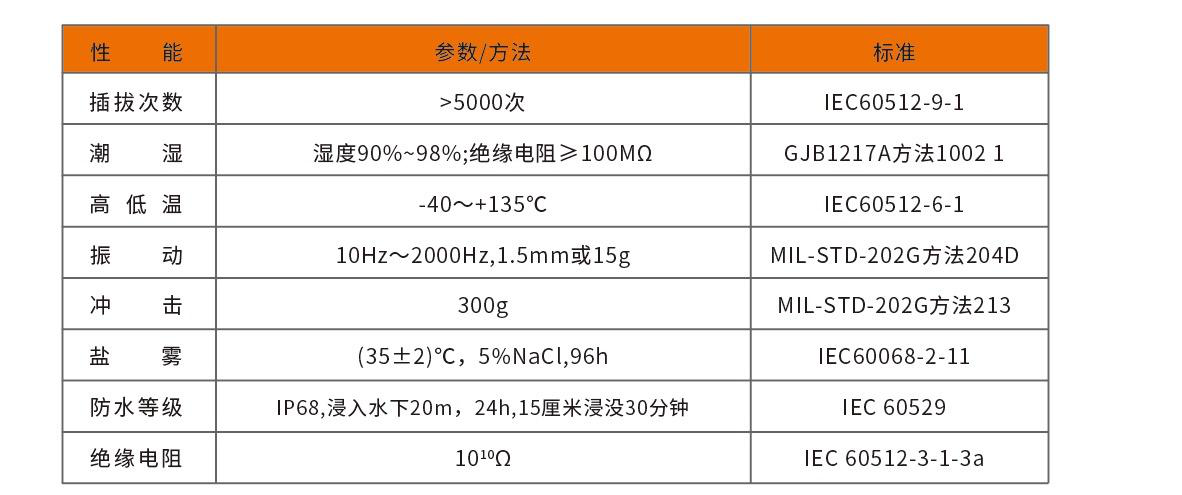

| Parameter | Value |
|---|---|
| Insertion Cycles | ＞5000次 |
| Humidity | 湿度90%~98%;绝缘电阻≥100MΩ |
| Temperature Range | -40~+135°C |
| Vibration | 10Hz~2000Hz,1.5mm或15g |
| Shock | 300g |
| Salt Spray | (35±2)°C,5%NaCl,96h |
| Waterproof Level | IP68,浸入水下20m,24h,15厘米深浸没30分钟 |
| Insulation Resistance | 10^10Ω |

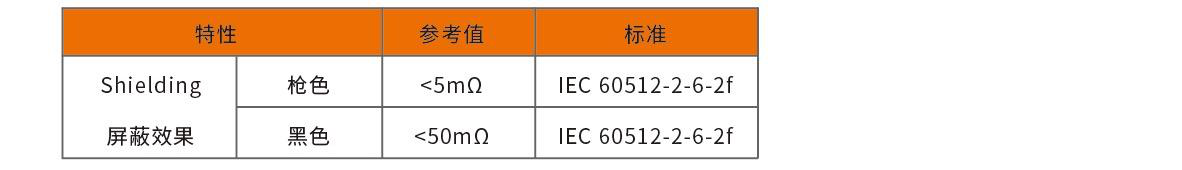

| Shielding Effectiveness | 枪色<5mΩ,黑色<50mΩ |

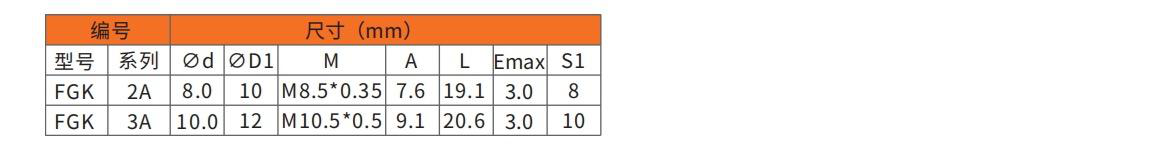

| Series 2A Dimensions | Ød:8.0, ØD1:10, M:M8.5*0.35, A:7.6, L:19.1, Emax:3.0, S1:8 |
| Series 3A Dimensions | Ød:10.0, ØD1:12, M:M10.5*0.5, A:9.1, L:20.6, Emax:3.0, S1:10 |

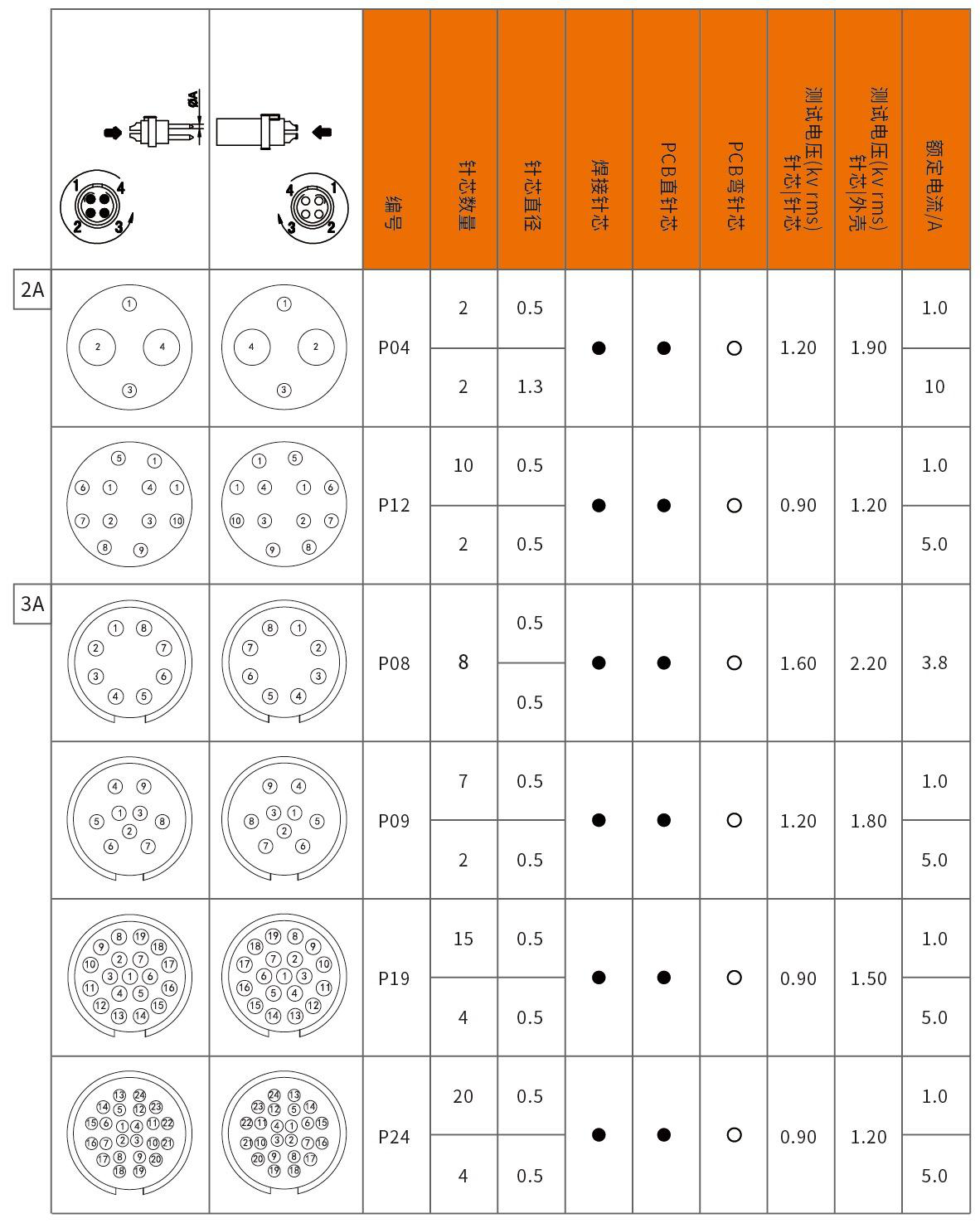

| 2A Plug Configuration | P04:2芯, P12:10芯 |
| 3A Plug Configuration | P08:8芯, P09:7芯, P19:15芯, P24:20芯 |
