FGA Series Connectors
FGA series connectors are high-performance electrical connectors designed for demanding environments. They offer excellent durability, shielding, and waterproof capabilities, making them suitable for various industrial applications.
Save to Favorites
Overview
Specifications

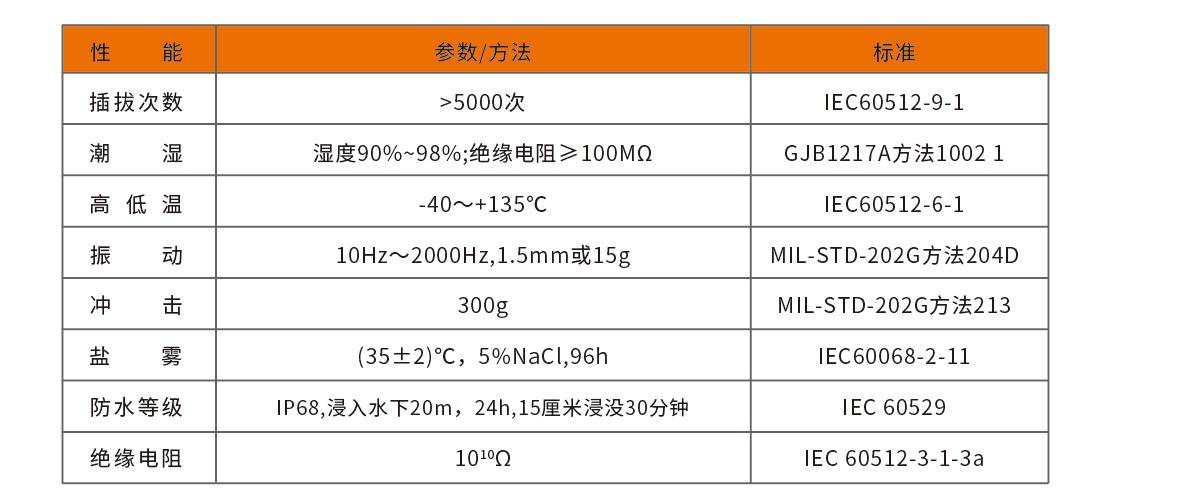

| Parameter | Value |
|---|---|
| Insertion Cycles | ＞5000次 |
| Humidity | 湿度90%~98%;绝缘电阻≥100MΩ |
| High and Low Temperature | -40~+135°C |
| Vibration | 10Hz~2000Hz,1.5mm或15g |
| Shock | 300g |
| Salt Spray | (35±2)°C,5%NaCl,96h |
| Waterproof Level | IP68,浸入水下20m,24h,15厘米深浸没30分钟 |
| Insulation Resistance | 10^10Ω |

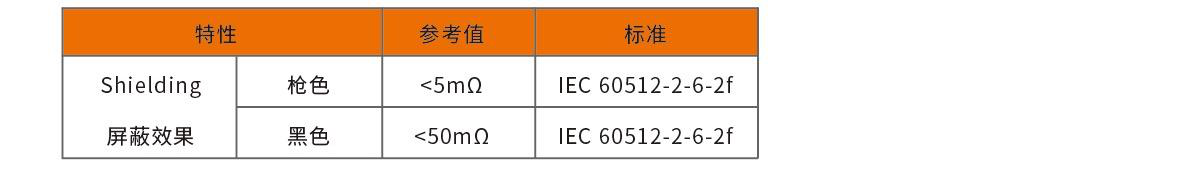

| Shielding Effect | 枪色<5mΩ,黑色<50mΩ |

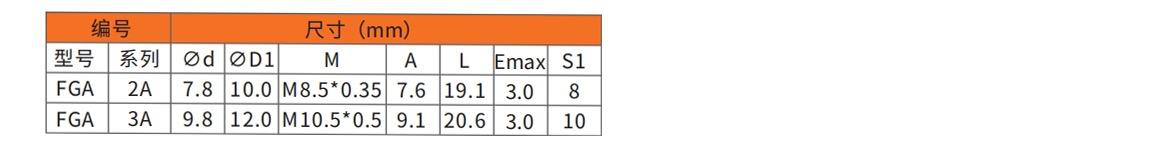

| Dimensions 2A Ød | 7.8 |
| Dimensions 2A ØD1 | 10.0 |
| Dimensions 2A M | M8.5*0.35 |
| Dimensions 2A A | 7.6 |
| Dimensions 2A L | 19.1 |
| Dimensions 2A Emax | 3.0 |
| Dimensions 2A S1 | 8 |
| Dimensions 3A Ød | 9.8 |
| Dimensions 3A ØD1 | 12.0 |
| Dimensions 3A M | M10.5*0.5 |
| Dimensions 3A A | 9.1 |
| Dimensions 3A L | 20.6 |
| Dimensions 3A Emax | 3.0 |
| Dimensions 3A S1 | 10 |

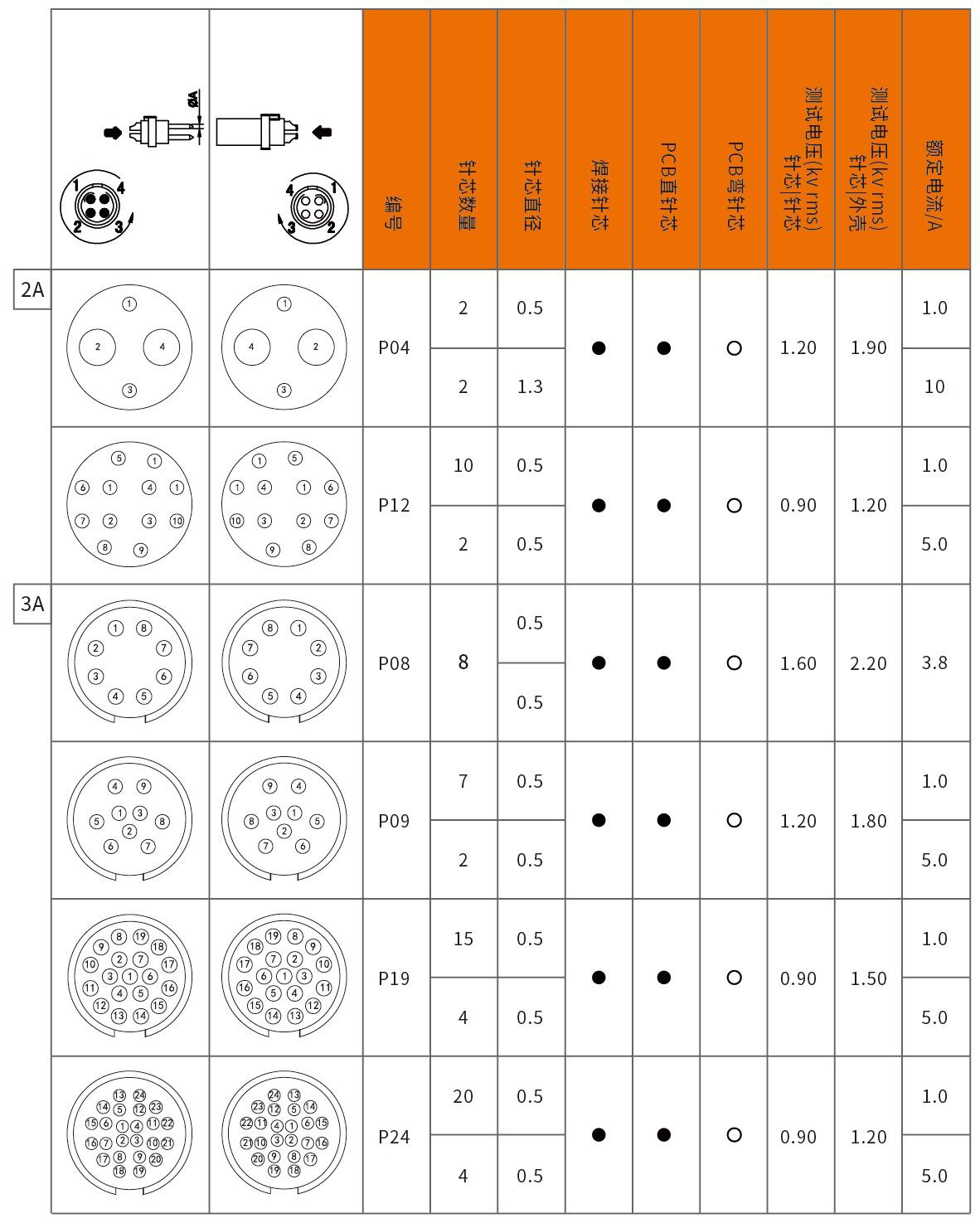

| Contact Resistance P04 | 2芯0.5 |
| Contact Resistance P12 | 10芯0.5 |
| Contact Resistance P08 | 8芯0.5 |
| Contact Resistance P09 | 7芯0.5 |
| Contact Resistance P19 | 15芯0.5 |
| Contact Resistance P24 | 20芯0.5 |
| Rated Current P04 | 1.0 |
| Rated Current P12 | 1.0 |
| Rated Current P08 | 3.8 |
| Rated Current P09 | 1.0 |
| Rated Current P19 | 1.0 |
| Rated Current P24 | 1.0 |
