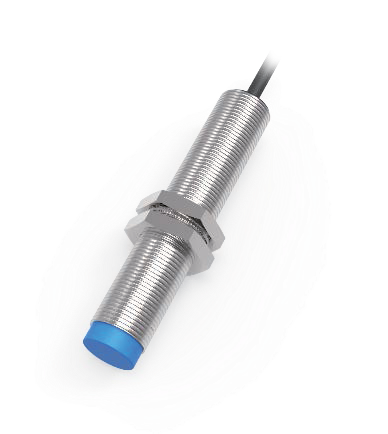

SPH08 Cylindrical Metal Inductive Proximity Switch
The SPH08 series is a cylindrical metal inductive proximity switch designed for precise detection and reliable performance. It utilizes advanced ASIC technology for enhanced stability and sensitivity.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Installation Method | Flush mounting |
| Rated Distance Sn | 2mm, 4mm |
| Detection Distance Sa | 0.1...1.6mm, 0.3...3.2mm |
| Standard Size | M8×40mm, M8×43mm |
| Power Supply Voltage | 10...30VDCVDC |
| Current Consumption | ≤10mA |
| Protection Functions | Short-circuit protection, reverse polarity protection |
| Indicator | Yellow LED |
| Operating Temperature | -25°C...70°C |
| Operating Humidity | 35-95%RH |
| Impact Strength | 1.5mm 10-50Hz (X,Y,Z directions for 2 hours) |
| Insulation Resistance | ≥50MΩ (500VDC) |
| Shell Material | Nickel-plated brass |
| Residual Voltage | ≤2.5V |
