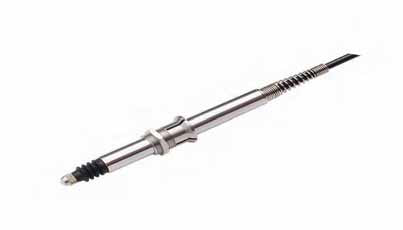

SDVH8 Series Pen-Type Displacement Sensor
SDVH8 series pen-type displacement sensors are designed for applications in aerospace, machinery, construction, textiles, iron and steel, hydropower, and other industries. They are used for measuring displacement, vibration, force, and other physical parameters.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Micro Voltage | 3Vrms (1~3Vrms) |
| Micro Frequency | 5kHz (1~10kHz) |
| Output Signal | 0~5V DC (9~12V DC power supply), 0~10V DC (15~28V DC power supply), 4~20mA (two-wire system, 15~28V DC power supply), RS485 (9~12V DC power supply) |
| Linearity Error | ±0.25%, ±0.1%, ±0.05% optional |
| Repeatability | ≤0.1μm |
| Resolution | ≤0.1μm, digital output is 16 bit |
| Operating Temperature | -25°C~+85°C |
| Temperature Coefficient | ≤0.01%/°C |
| Sensitivity Coefficient | ≤0.025%/°C |
| Appearance Length A | 65.5mm, 115mm, 121mm |
| Appearance Length B | 19.5mm, 23.3mm, 30.3mm |
